(no reviews)Product ID: 259523

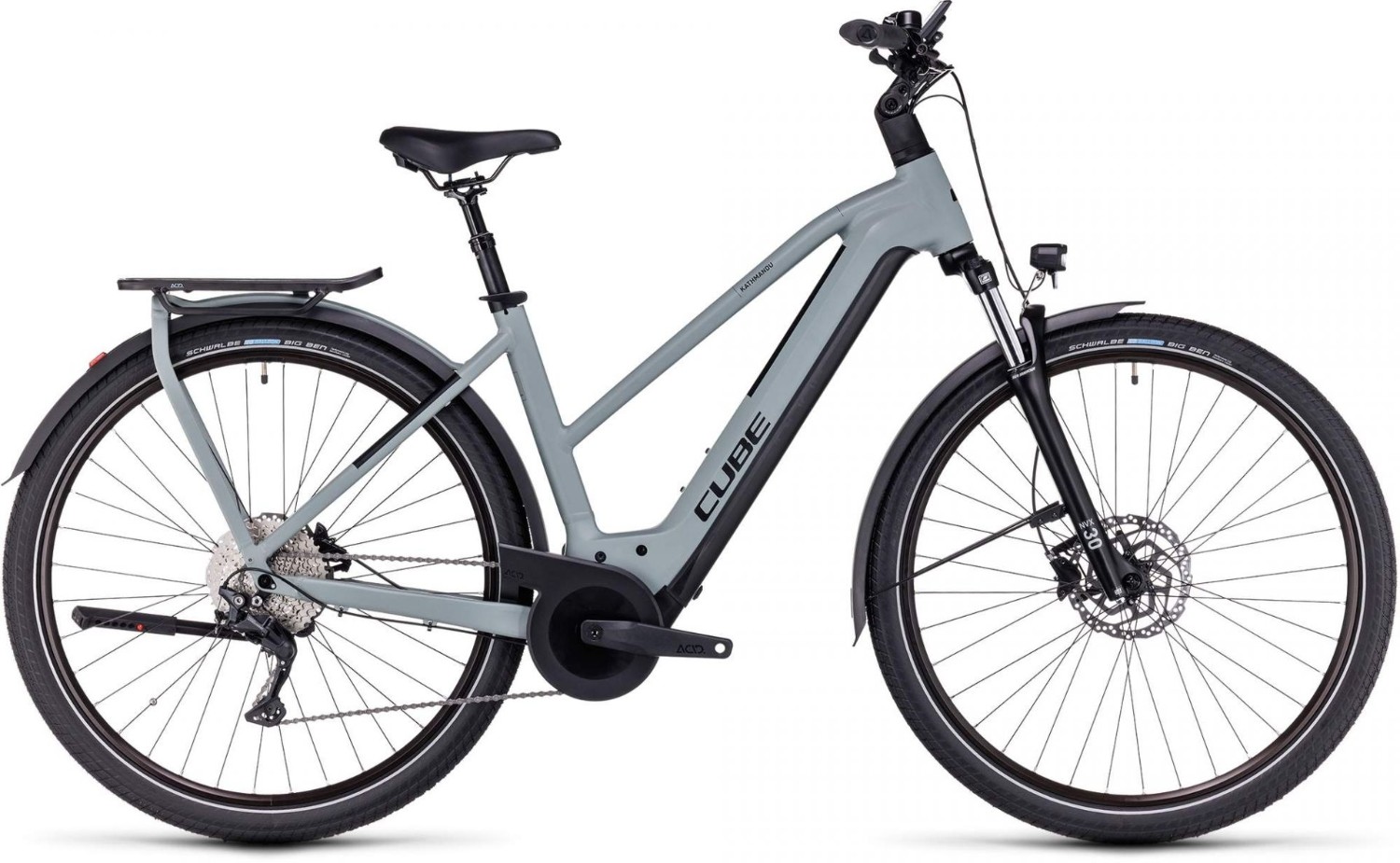

Cube Kathmandu Hybrid One 750 Trapeze 2023 - Electric Hybrid Bike
The Cube Kathmandu Hybrid ONE 750 Trapeze is an embodiment of freedom, designed to traverse any path your imagination charts. Bosch's fourth-generation CX drive unit assits you effortlessly, complemented by a potent battery and Shimano's trusted 1x10 gears. A Suntour suspension fork and adjustable stem enhance comfort, while Shimano hydraulic disc brakes provide reliable stopping power.
Key Features:
- Frame: Aluminium superlite with gravity casting, efficient comfort geometry, and full integrated battery
- Front Suspension: Sr Suntour NVX30 coil, 100mm travel
- Drivetrain: Shimano Deore 1x10-speed, ensuring smooth and reliable shifting
- Brakes: Shimano BR-MT200 hydraulic disc brakes for all-weather stopping power
- Wheels: Rodi Blackrock 23 rims, 36h, with Schwalbe Big Ben performance tyres
- Standout Feature: Integrated Carrier 3.0 for convenient accessory attachment
- 0% APR Finance Available
Drive Information:
- Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
- Battery: Bosch Powertube 750Wh for extended range
- User Interface: Bosch Intuvia 100 display and remote switch for intuitive control
The Kathmandu's frame incorporates a high-capacity Bosch battery for extended range. The Efficient Comfort Geometry ensures a comfortable riding position, perfect for covering miles effortlessly. The Integrated Carrier 3.0 seamlessly integrates with the rear mudguard, offering an elegant look and functionality for accessory attachment.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
| Fork | SR Suntour NVX30 Coil, 100mm |
| Headset | M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Bars | CUBE Comfort Trail Bar, 700mm |
| Front Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano Deore RD-M4120-SGS, 10-Speed |
| Shifters | Shimano Deore SL-M4100-R, Rapidfire-Plus |
| Speed | 10 |
| Rims | Rodi Blackrock 23, 36H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| Front Tyre | Schwalbe Big Ben, Performance, K-Guard, 55-622 |
| Rear Tyre | Schwalbe Big Ben, Performance, K-Guard, 55-622 |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Chainset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Chain | KMC X10 |
| Cassette | Shimano Deore CS-M4100, 11-42T |
| Pedals | ACID PP Trekking |
| Battery Size (WH) | Bosch PowerTube 750 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| User Interface | Bosch Intuvia 100 |
Cube Kathmandu Hybrid Size Chart
|
Frame Size |
Height (cm) |
Height (feet) |
|
46cm |
165 - 170 |
5’5” – 5’7” |
|
50cm |
170 - 175 |
5’7” – 5’9” |
|
54cm |
175 – 180 |
5’9” – 5’11” |
|
58cm |
180 - 190 |
5’11” – 6’3” |
|
62cm |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
