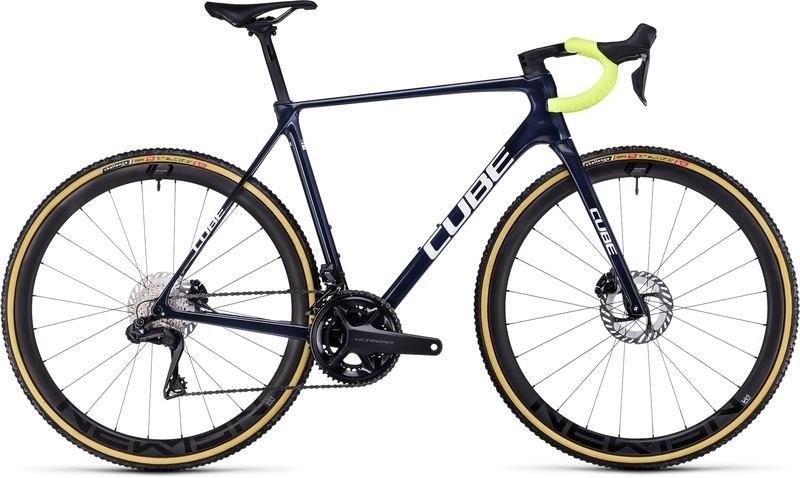

Cube Cross Race C:68X 2024 - Cyclocross Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | C:68X Monocoque Advanced Twin Mold Technology, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH |
Fork | CUBE Cross Race Disc C:68X Technology, Integrated Cable Touring, Flat Mount Disc |
Headset | ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4" |
Stem | ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface (50cm: 400mm/90mm, 53cm: 420/90mm, 56cm: 420mm/100mm, 58cm: 440mm/100mm, 60cm: 440mm/110mm, 62cm: 440mm/120mm) |
Bars | ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface (50cm: 400mm/90mm, 53cm: 420/90mm, 56cm: 420mm/100mm, 58cm: 440mm/100mm, 60cm: 440mm/110mm, 62cm: 440mm/120mm) |
Front Brake | Shimano Ultegra BR-R8170, Hydr. Disc Brake, Flat Mount (160/160) |
Rear Brake | Shimano Ultegra BR-R8170, Hydr. Disc Brake, Flat Mount (160/160) |
Brake Lever | Shimano Ultegra BR-R8170 |
Front Mech | Shimano Ultegra Di2 FD-R8150-F |
Rear Mech | Shimano Ultegra Di2 RD-R8150-DGS. 12-Speed |
Shifters | Shimano Ultegra Di2 ST-R8170 |
Speed | 24 |
Rims | Newmen Advanced SL X.R. 36, Carbon |
Front Hub | Newmen Advanced SL X.R. 36, Carbon |
Rear Hub | Newmen Advanced SL X.R. 36, Carbon |
Front Tyre | Challenge Grifo Pro, Kevlar, 33-622 |
Rear Tyre | Challenge Grifo Pro, Kevlar, 33-622 |
Seat Post | Newmen Advanced, Carbon, 27.2mm |
Saddle | Natural Fit Nuance SLT Road Carbon |
Chainset | Shimano Ultegra FC-R8100, Hollowtech II, 50x34T |
Chain | Shimano CN-M8100 |
Cassette | Shimano Ultegra CS-R8100-12, 11-30T |
Pedals | Resin Platform |
Weight | 7.4 |
Cube Cross Race Size Chart
Frame Size |
Height (cm) |
Height (feet) |
50 |
165 - 170 |
5’5” – 5’7” |
53 |
170 - 175 |
5’7” – 5”9” |
56 |
175 - 180 |
5’9” – 5’11” |
58 |
180 – 185 |
5’11” – 6’1” |
61 |
185 - 190 |
6’1” – 6’3” |
Cube Cross Race Geometry
50 cm |
53 cm |
56 cm |
58 cm |
61 cm |
|
WIDTH TIRES MAXIMUM |
43 |
43 |
43 |
43 |
43 |
STACK |
529.8 |
555.3 |
578.8 |
599.7 |
625.5 |
REACH |
376.6 |
372.6 |
379.3 |
386 |
396.8 |
STANDOVER HEIGHT |
765.6 |
793.3 |
820 |
839.7 |
867.2 |
BB-HEIGHT TO HUB |
68 |
68 | 68 | 68 | 68 |
WHEELSBASE |
1015.4 |
1015.6 |
1018.2 |
1027.1 |
1039.9 |
HEAD TUBE |
115 |
140 |
160 |
180 |
205 |
CHAIN STAYS |
430 |
430 |
430 |
430 |
430 |
HEAD TUBE ANGLE |
70.3 |
70.8 |
72 |
72.5 |
73 |
SEAT TUBE ANGLE |
74.8 |
73.6 |
73.2 |
73 |
73 |
TOP TUBE HORIZONTAL |
520.5 |
536 |
554 |
570 |
588 |
SEAT TUBE |
500 |
530 |
560 |
580 |
610 |
What size frame do I need if I am between sizes? - read here
