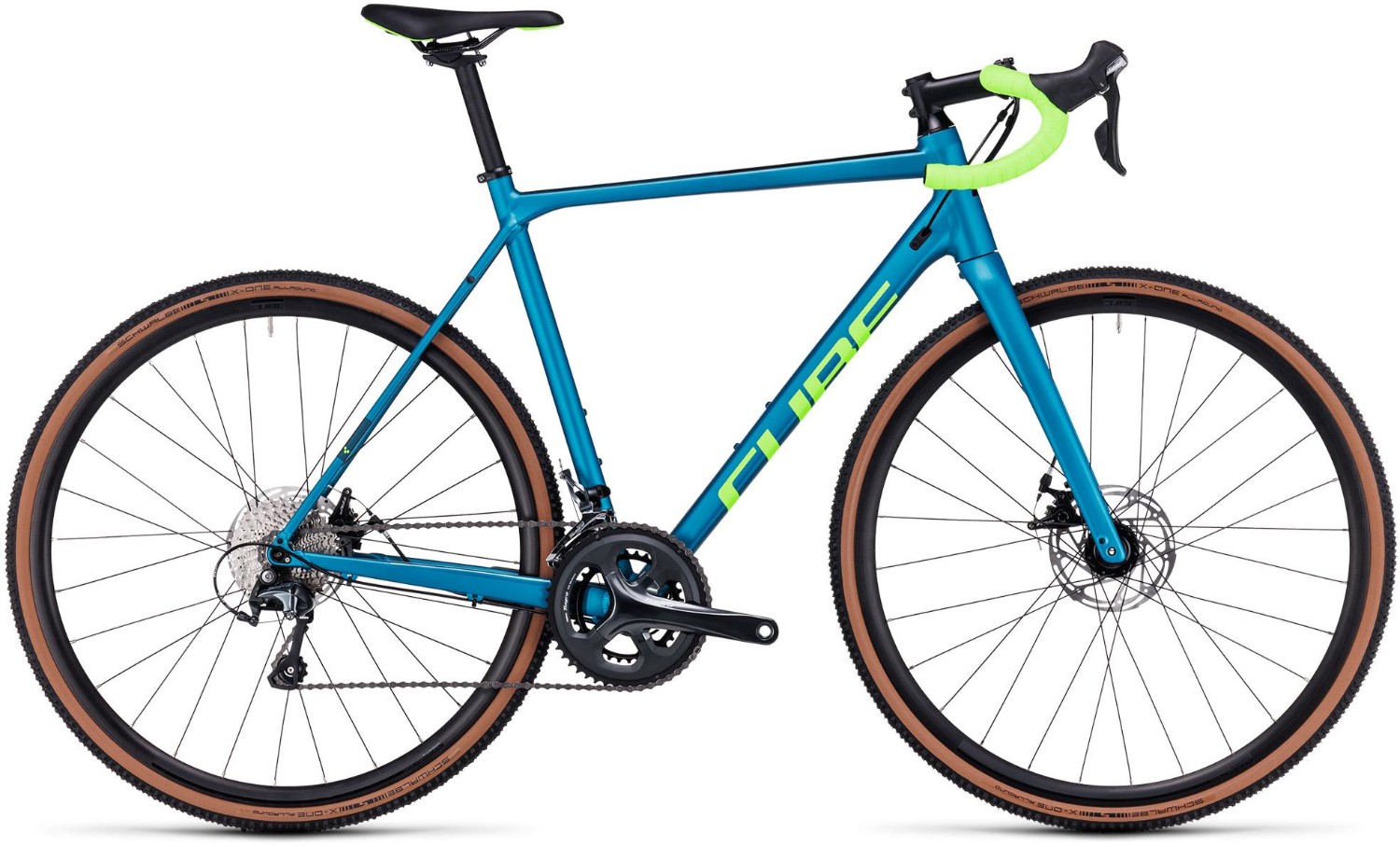

Cube Cross Race 2024 - Cyclocross Bike
- Frame: Aluminium superlite, double-butted, advanced mechanical forming, internal cable routing, flat mount disc, 12x142mm thru-axle.
- Fork: Cube Cross Race Disc, full carbon, 1 1/8"" - 1 1/4"" tapered, flat mount.
- Brakes: TRP Spyre MD-C610C mechanical disc brakes (160/160) for reliable stopping in all conditions.
- Drivetrain: Shimano Tiagra 2x10-speed transmission for precise and efficient gearing.
- Wheels: Cube RA 1.9 CX, tubeless ready, crafted in-house in Germany for quality assurance.
- Tyres: Schwalbe X-One Allround, perforated, Kevlar, 33-622, designed to conquer muddy trails.
- Comfortable Ride: Cube Performance Post, Natural Fit Venec Lite saddle for enduring comfort.
- Additional Features: Internal cable routing for clean gear shifts, Shimano Tiagra components for reliable performance.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Double Butted, Advanced Mechanical Forming, Smooth Welded, Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH |
Fork | CUBE Cross Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount |
Headset | VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
Stem | CUBE Performance Stem SLX, 31.8mm |
Bars | CUBE Compact Race Bar |
Front Brake | TRP Spyre MD-C610C, Flat Mount (160/160) |
Rear Brake | TRP Spyre MD-C610C, Flat Mount (160/160) |
Brake Lever | Shimano Tiagra ST-4700 |
Front Mech | Shimano Tiagra FD-4700, 31.8mm Clamp |
Rear Mech | Shimano Tiagra RD-4700GS, 10-Speed |
Shifters | Shimano Tiagra ST-4700 |
Speed | 20 |
Rims | CUBE RA 1.9 CX, Tubeless Ready |
Front Hub | CUBE RA 1.9 CX, Tubeless Ready |
Rear Hub | CUBE RA 1.9 CX, Tubeless Ready |
Front Tyre | Schwalbe X-One Allround, PerfL, Kevlar, 33-622 |
Rear Tyre | Schwalbe X-One Allround, PerfL, Kevlar, 33-622 |
Seat Post | CUBE Performance Post, 27.2mm |
Saddle | Natural Fit Venec Lite |
Chainset | Shimano Tiagra FC-4700, 50x34T |
Chain | KMC X10 |
Cassette | Shimano CS-HG500, 11-34T |
Pedals | Resin Platform |
Weight | 10.2 |
Cube Cross Race Size Chart
Frame Size |
Height (cm) |
Height (feet) |
50 |
165 - 170 |
5’5” – 5’7” |
53 |
170 - 175 |
5’7” – 5”9” |
56 |
175 - 180 |
5’9” – 5’11” |
58 |
180 – 185 |
5’11” – 6’1” |
61 |
185 - 190 |
6’1” – 6’3” |
Cube Cross Race Geometry
50 cm |
53 cm |
56 cm |
58 cm |
61 cm |
|
WIDTH TIRES MAXIMUM |
43 |
43 |
43 |
43 |
43 |
STACK |
529.8 |
555.3 |
578.8 |
599.7 |
625.5 |
REACH |
376.6 |
372.6 |
379.3 |
386 |
396.8 |
STANDOVER HEIGHT |
765.6 |
793.3 |
820 |
839.7 |
867.2 |
BB-HEIGHT TO HUB |
68 |
68 | 68 | 68 | 68 |
WHEELSBASE |
1015.4 |
1015.6 |
1018.2 |
1027.1 |
1039.9 |
HEAD TUBE |
115 |
140 |
160 |
180 |
205 |
CHAIN STAYS |
430 |
430 |
430 |
430 |
430 |
HEAD TUBE ANGLE |
70.3 |
70.8 |
72 |
72.5 |
73 |
SEAT TUBE ANGLE |
74.8 |
73.6 |
73.2 |
73 |
73 |
TOP TUBE HORIZONTAL |
520.5 |
536 |
554 |
570 |
588 |
SEAT TUBE |
500 |
530 |
560 |
580 |
610 |
What size frame do I need if I am between sizes? - read here
