(no reviews)Product ID: 272005

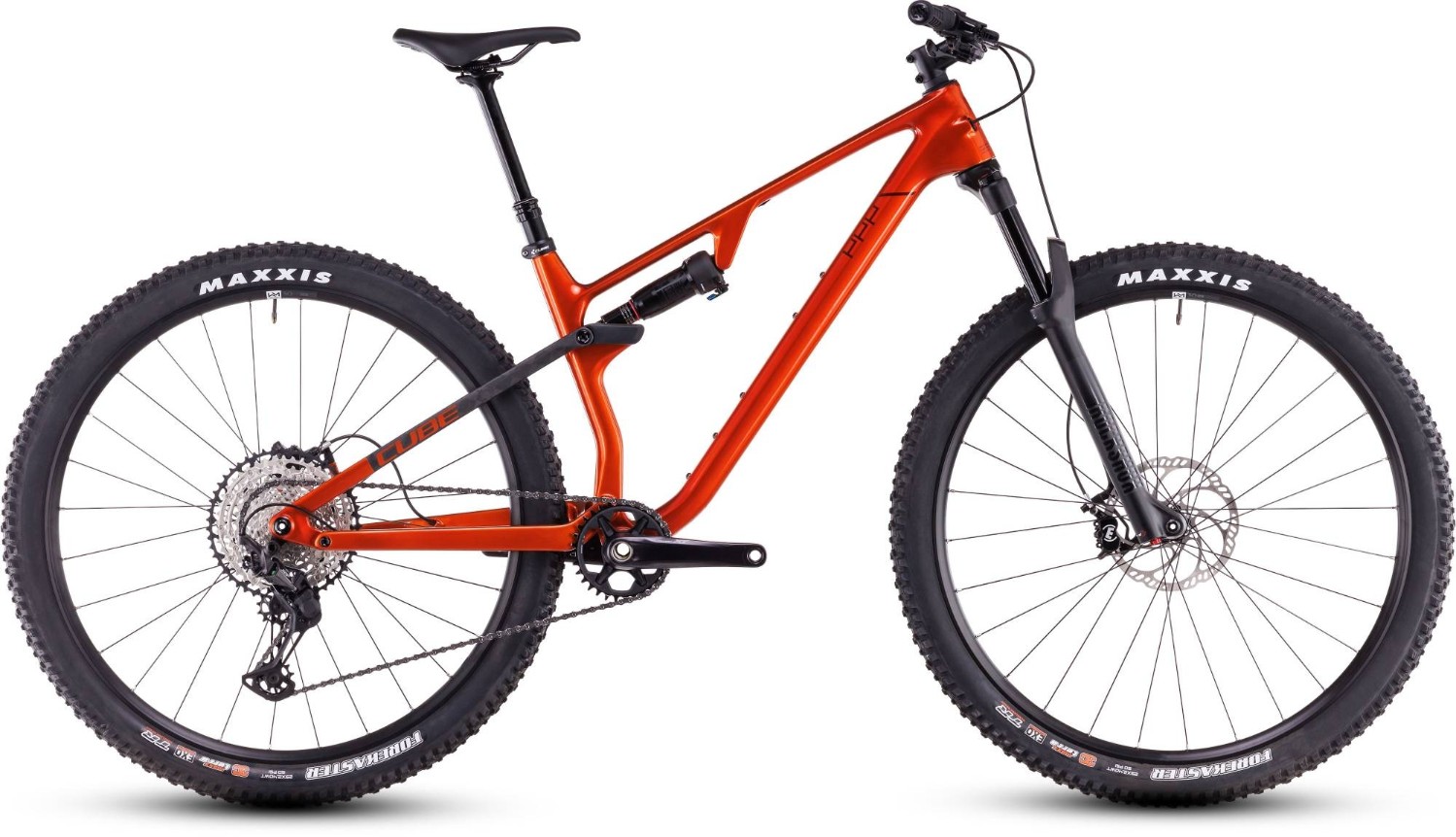

Cube Ams One11 C:68X Pro 29 Mountain Bike 2025 - XC Full Suspension MTB
The trail won't know what hit it. The AMS ONE11 C:68X Pro 29's super-light carbon chassis with around 110mm of rear- and 120mm of front-wheel travel puts you firmly in control. A RockShox Recon Gold fork pairs with a Deluxe Select+ shock to take care of the bumps. Shimano's matchless XT 1x12 gears put the right ratio for any scenario at your fingertips, while a Newmen Performance 30 wheelset shod with Maxxis Forekaster 2.4in tyres gets your power to the trail. And Magura MT Thirty hydraulic disc brakes keep your speed in check – because power is nothing without control, right?
Frame description
When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1,600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there are even Acros angle adjustment inserts to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™ |
| Fork | RockShox Recon Gold RL Air, Tapered, 15x110mm, 120mm |
| Rear Shock | RockShox Deluxe Select+, 190x42.5mm |
| Headset | ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Bars | Newmen Evolution SL 318.25, 760mm |
| Front Brake | Magura MT Thirty, Hydr. Disc Brake (180/180) |
| Rear Brake | Magura MT Thirty, Hydr. Disc Brake (180/180) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano XT SL-M8100-R |
| Speed | 12 |
| Rims | Newmen Performance 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT |
| Rear Tyre | Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm |
| Saddle | ACID Nuance Lite |
| Chainset | Shimano XT FC-M8100, 32T, Boost |
| Bottom Bracket | Shimano BB-MT500PA, 92mm Pressfit |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano SLX CS-M7100, 10-51T |
Cube AMS One11 2025 Size Chart
|
Size |
Height (cm) | Height (in) |
|
S - 16" |
163 – 170 | 5’4” – 5’7” |
|
M - 18" |
169 – 179 | 5’6” – 5’10” |
| L - 20" | 178 – 188 | 5’10” – 6’2” |
| XL - 22" | 187 - 197 | 6’2” – 6’5” |
What size frame do I need if I am between sizes? - read here
Cube AMS One11 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 592 / 594 | 601 / 603 | 611 / 613 | 625 / 627 |
| Reach | 401 / 400 | 423 / 422 | 445 / 444 | 466 / 465 |
| Head Tube Length | 100 | 110 | 120 | 135 |
| Head Tube Angle | 66° / 66.6° | 66.1° / 66.7° | 66.1° / 66.7° | 66.1° / 66.7° |
| Bottom Bracket Height | - | - | - | - |
| Bottom Bracket Drop | -33 / -31 | -33 / -32 | -33 / -32 | -34 / -32 |
| Wheelbase | 1141 / 1134 | 1167 / 1160 | 1193 / 1186 | 1219 / 1212 |
| Chainstay Length | 445 | 445 | 445 | 445 |
| Top Tube Length (horizontal) | 573 / 575 | 598 / 600 | 623 / 625 | 648 / 650 |
| Seat Tube Length | 370 | 420 | 470 | 520 |
| Seat Tube Angle | 73.3° / 73.1° | 73.4° / 73.2° | 73.4° / 73.2° | 73.4° / 73.2° |
| Crank Length | 170 | 170 | 170 | 175 |
| Handlebar Width | 760 | 760 | 760 | 760 |
| Seatpost Length | 346 | 411 | 411 | 411 |
| Fork Travel | 120 | 120 | 120 | 120 |
| Rear Travel | 110 | 110 | 110 | 110 |
| Tyre Size | 758 x 64 | 758 x 64 | 758 x 64 | 758 x 64 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cube Ams One11 C:68X Pro 29 Mountain Bike 2025 - XC Full Suspension MTB.
This product is no longer available.
