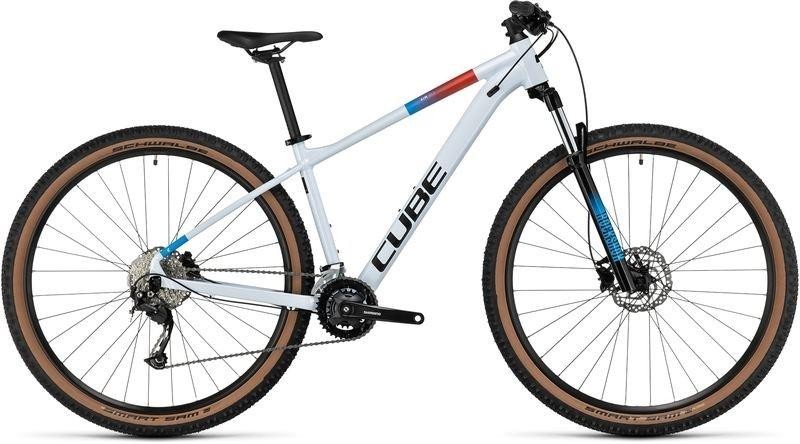

Cube Aim SLX Mountain Bike 2024 - Hardtail MTB
- Frame: Aluminium Lite, AMF, double-butted, internal cable routing, tapered head tube, flat mount brake, SIC mount, FM kickstand mount.
- Front Suspension: RockShox Judy Silver TK Coil, 100mm, lockout.
- Drivetrain: Shimano FC-MT101, 2x9, Shimano SL-M2010-9R shifters, Shimano RD-M3100-SGS rear mech.
- Brakes: Shimano BR-MT200/UR300 hydraulic disc brakes (160/160).
- Wheels: Cube ZX20, 32h, disc; Schwalbe Smart Sam, Active, 2.25 tyres.
- Other Features: Smooth-welded junctions, SizeSplit system, internal cable routing, Cube Performance Post, Natural Fit Venec Lite saddle.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
Fork | RockShox Judy Silver TK Coil, 100mm, Lockout |
Headset | CUBE FPH868, Semi-Integrated |
Stem | CUBE Performance Stem Race, 31.8mm |
Bars | CUBE Rise Trail Bar, 680mm |
Front Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
Rear Brake | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
Front Mech | Shimano FD-M2020, Top Swing, 31.8mm Clamp |
Rear Mech | Shimano RD-M3100-SGS, 9-Speed |
Shifters | Shimano SL-M2010-9R, Rapidfire-Plus |
Speed | 18 |
Rims | CUBE ZX20, 32H, Disc |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano FH-TX505, QR, Centerlock |
Front Tyre | Schwalbe Smart Sam, Active, 2.25 |
Rear Tyre | Schwalbe Smart Sam, Active, 2.25 |
Seat Post | CUBE Performance Post, 27.2mm |
Saddle | Natural Fit Venec Lite |
Chainset | Shimano FC-MT101, 36x22T |
Chain | KMC X9 |
Cassette | Shimano CS-HG201, 11-36T |
Pedals | ACID PP MTB |
Cube Aim Size Chart
Size |
Height (cm) |
Height (in) |
XS |
150 - 161 |
4’11” – 5’3” |
S |
158 - 166 |
5’2” – 5’5” |
M |
164 - 178 |
5’4” – 5’10” |
L |
176 - 185 |
5’9” – 6’1” |
XL |
183 - 191 |
6’0” – 6’4” |
XXL |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
