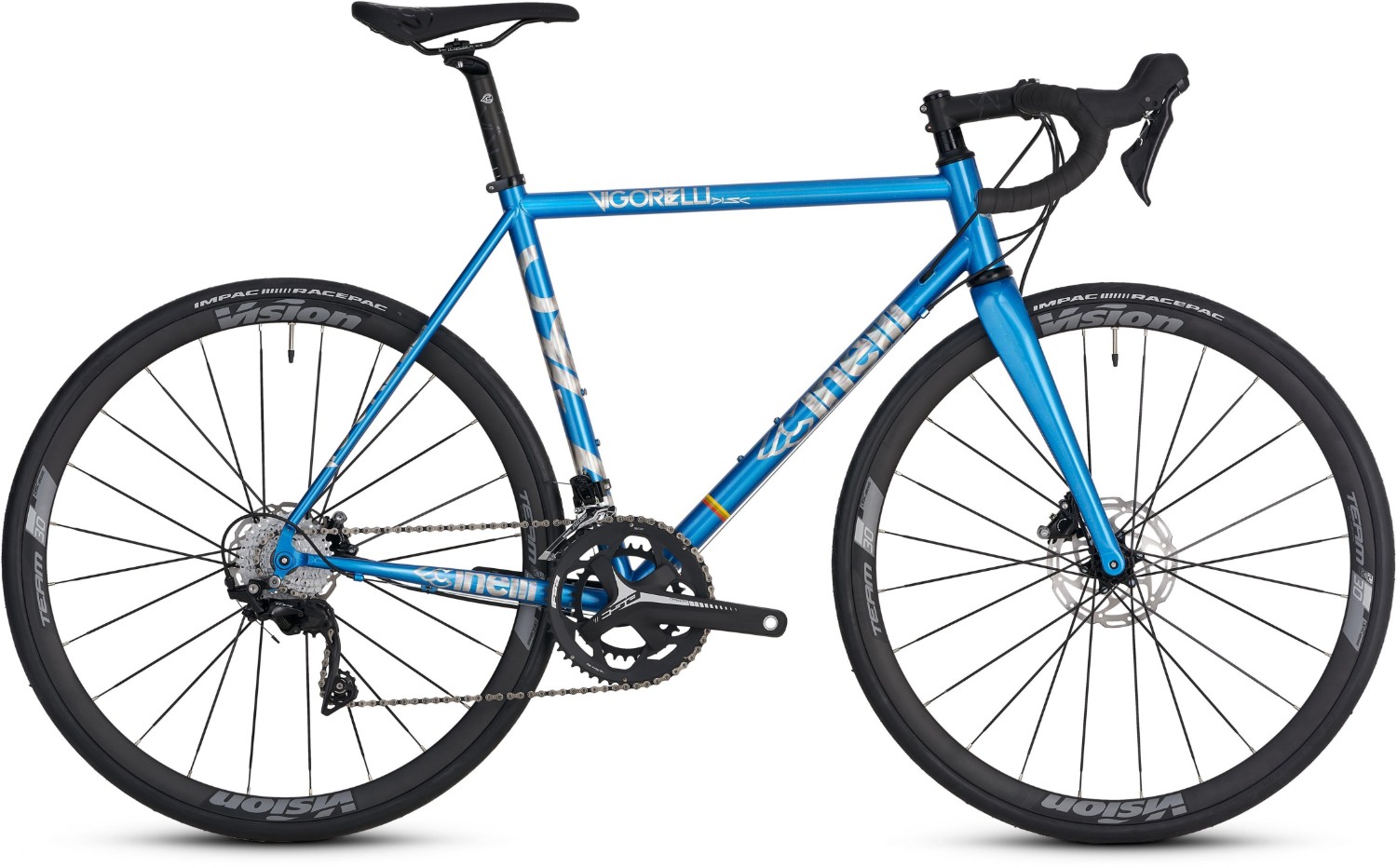

Cinelli Vigorelli 105 Disc 2020 - Road Bike

Vigorelli Disc 105 Hydro
The hugely versatile steel frame with excellent ride quality returns for 2020 in a new disc brake version.
Constructed in Columbus Thron tubing and matched with a Columbus Futura Carbon Disc fork, the Vigorelli was designed in conjunction with the riders of Team Cinelli Chrome, Red Hook Crit Champions and sports a beautiful metallic blue paint with chrome decals
The advanced engineering of the different steel tube thicknesses for different parts of the frame allows for perfect weight distribution that only this material can produce. It enjoys minimal toe overlap and a higher bottom bracket position.
Thanks to its fixed-gear criterium racing heritage, the Vigorelli is for riders looking for a fast and positive ride, but with the everyday comfort of a steel frame and added benefit of disc brakes and up to 700x28c tyres.
Featuring front and rear thru axles, flat mount disc brakes and internal cable routing.
Technical Specifications:
* Sizes: XS (47), S (50), M (53), L (56), XL (59)
* Frame: COLUMBUS Thron tubeset
* Forks: COLUMBUS Futura Disc 1 1/8" - 1 1/2"
* Cable Routing: External/Internal Disc Housing
* Brake Fitment: Flat Mount Disc
* Bottom Bracket: BSA 68mm
* Seatpost Dia: 31.6mm
* Max Tyre Clearance: 700x28c
* Frame Weight: 2200g
* Fork Weight: 350g
Bike Specifications:
* Components: Shimano 105 11x Hydraulic
* Chainset: FSA Omega MX Chainset 34/50T
* Disc Calipers: Shimano 105 Hydraulic
* Cassette Shimano 105 11x 11/32T
* Chain: KMC 11x
* Saddle: Cinelli SSM Monza
* Bar/Stem/Seatpost: Cinelli Alu
* Wheelset: Vision Team 30 BT Disc
* Tyres: Impac RacePac 700x25
**Spec may be subject to change due to availability**
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Columbus Thron tubeset |
Fork | Columbus Futura Disc 1 1/8" - 1 1/2" |
Headset | FSA |
Stem | Cinelli |
Bars | Cinelli |
Front Brake | Shimano 105 R7000 |
Rear Brake | Shimano 105 R7000 |
Brake Lever | Shimano 105 R7000 |
Front Mech | Shimano 105 R7000 |
Rear Mech | Shimano 105 R7000 |
Shifters | Shimano 105 R7000 |
Speed | 11 |
Rims | Vision Team 30 |
Front Hub | Vision Team 30 |
Rear Hub | Vision Team 30 |
Spokes | Vision Team 30 |
Front Tyre | Impac RacePac |
Rear Tyre | Impac RacePac |
Seat Post | Cinelli |
Saddle | Cinelli |
Chainset | FSA Omega MX |
Bottom Bracket | FSA MeagaExo |
Chain | KMC X11 |
Cassette | Shimano 105 R7000 |
Pedals | Basic Resin Flat |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
Height |
Size |
|||||||
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
