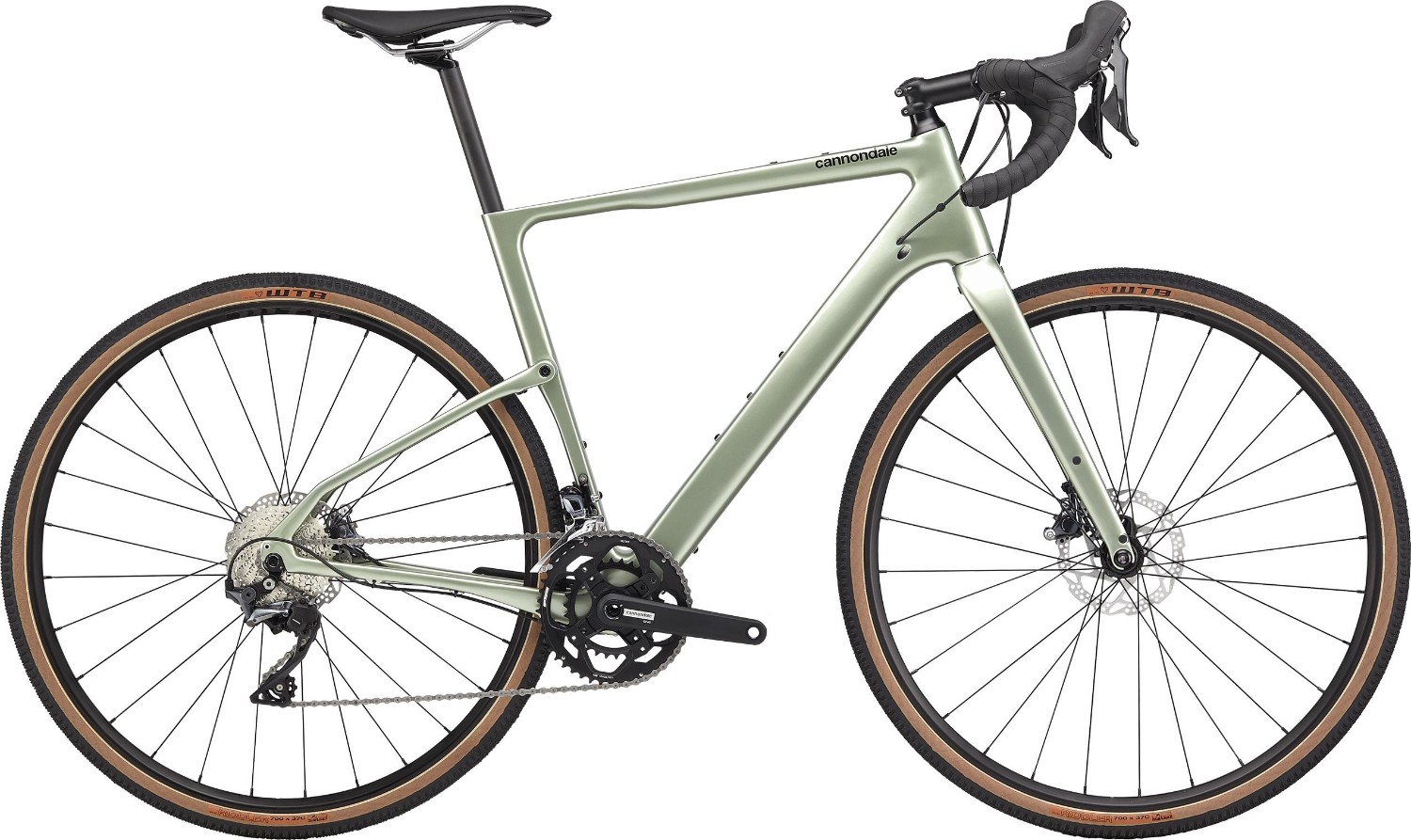

Cannondale Topstone Carbon Ultegra RX 2 2020 - Gravel Bike

The Cannondale Topstone Carbon Ultegra RX 2 is an unprecedented gravel bike with real suspension. It's the most off-road capable and on-road comfortable road bike ever made.
Topstone Carbon distils Cannondale's experience making fast race bikes, comfortable endurance bikes and ultra-light dual suspension mountain bikes into an exceptional machine, designed for maximum fun in places beyond most gravel bikes' abilities, or maximum comfort in more ordinary terrain.
Key Features:
- BallisTec Carbon frame with Kingpin micro-suspension system
- Full BallisTec carbon fork with 12mm thru axle
- Shimano Ultegra 2x11 speed drivetrain with 46/30 chainset
- Shimano Ultegra hydraulic disc brakes for all-weather stopping
- 700c wheels with 37c WTB Riddler TCS Light tyres
- Sizes: X Small, Small, Medium, large, X Large
- Colour: Agave
- The Cannondale Topstone Carbon Ultegra RX 2 is available with 0% APR finance
Highlights:
- KingPin Suspension. Revolutionary, super-light suspension that lets you ride harder on dirt and more smoothly on pavement. Better control. Better traction. Better comfort. Nothing sacrificed.
- It’s Easier to Go Harder. Refined geometry and rider position deliver an experience that’s stable, composed and comfortable without losing that spark. Go further, ride longer, charge harder.
- The Last Detail. We thought of everything. Big clearance for big tires. Tons of gear and storage mounts. Speed Release thru-axles. DirectLine cable routing. Internal dropper post compatibility. In short, the works.
Topstone Technology:
KingPin Suspension System. Up to 30mm of bump-smoothing suspension, without the weight and complexity of a shock or linkages.
LockR Pivot. Thru-axle pivot locks the left and right seat-stays together, preventing independent rotation for a solid feel and instantaneous response.
Big Tire Clearance. Comes with big 700x37c tires for grip and comfort, but has room for up to 40mm tires with tons of clearance. You can even put on 650 wheels with 48mm tires if small and fat is your thing.
Carry That Gear. Plenty of places to store gear and water, with a multi-position mount on the downtube, and more on the top tube, seat tube, and under the down tube. There's even mounts on the forks.
Fender Up. Fully fender ready. A removable fender bridge on the rear stays is there when you need it, gone when you don't.Easy
Speed Release Equipped. Speed Release thru-axles offer the stiffness and solid feel of a thru-axle, with the easy use of a quick release axle. Compatible with most thru-axle wheelsets.
Easy Internal Cable Routing. With our DirectLine cable routing, an internal tube guides the cable and housing through the frame, from entry to exit for headache-free service.
Dropper Ready. Built to accept an internally-routed 27.2 dropper seatpost, which shouldn’t really be a surprise on a bike that's this off-road capable.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Topstone Sizing
See the table below to find the right size Cannondale Topstone.
Frame Size |
Height Range |
|
Size |
Feet & Inches |
Centimetres
|
Small |
5’ 3” – 5’ 7” |
160 – 170 |
Medium |
5’ 7” – 5’ 10” |
170 – 178 |
Large |
5’ 10” – 6’ 2” |
178 – 188 |
X Large |
6’ 2” – 6’ 5” |
188 – 196 |
Topstone Carbon Geometry
|
X Small |
Small |
Medium |
Large |
X Large |
Seat Tube Length |
41cm |
45.8cm |
50.5cm |
55.3cm |
60cm |
Top Tube Horizontal |
52.5cm |
54.4cm |
56.1cm |
57.9cm |
69.6cm |
Head Tube Angle |
70° |
71.2° |
71.2° |
71.2° |
71.2° |
Seat Tube Angle |
73.1° |
73.1° |
73.1° |
73.1° |
73.1° |
Standover |
71.5cm |
76.1cm |
80.3cm |
84.3cm |
88.5cm |
Head Tube Length |
9.7cm |
31.1cm |
16.5cm |
19.8cm |
23.2cm |
Wheelbase |
99.9cm |
101.0cm |
103.0cm |
104.0cm |
106.0cm |
Front Centre |
59.3cm |
60.3cm |
62.1cm |
64.1cm |
65.9cm |
Chainstay Length |
41.5cm |
41.5cm |
41.5cm |
41.5cm |
41.5cm |
Bottom Bracket Drop |
6.9cm |
6.4cm |
6.1cm |
6.1cm |
5.9cm |
Bottom Bracket Height |
27.3cm |
27.8cm |
28.0cm |
28.0cm |
28.3cm |
Fork Rake |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
5.5cm |
Trail |
6.6cm |
5.8cm |
5.8cm |
5.8cm |
5.8cm |
Stack |
51.8cm |
54.9cm |
57.9cm |
61.0cm |
64.0cm |
Reach |
36.8cm |
37.7cm |
38.5cm |
39.4cm |
40.2cm |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
