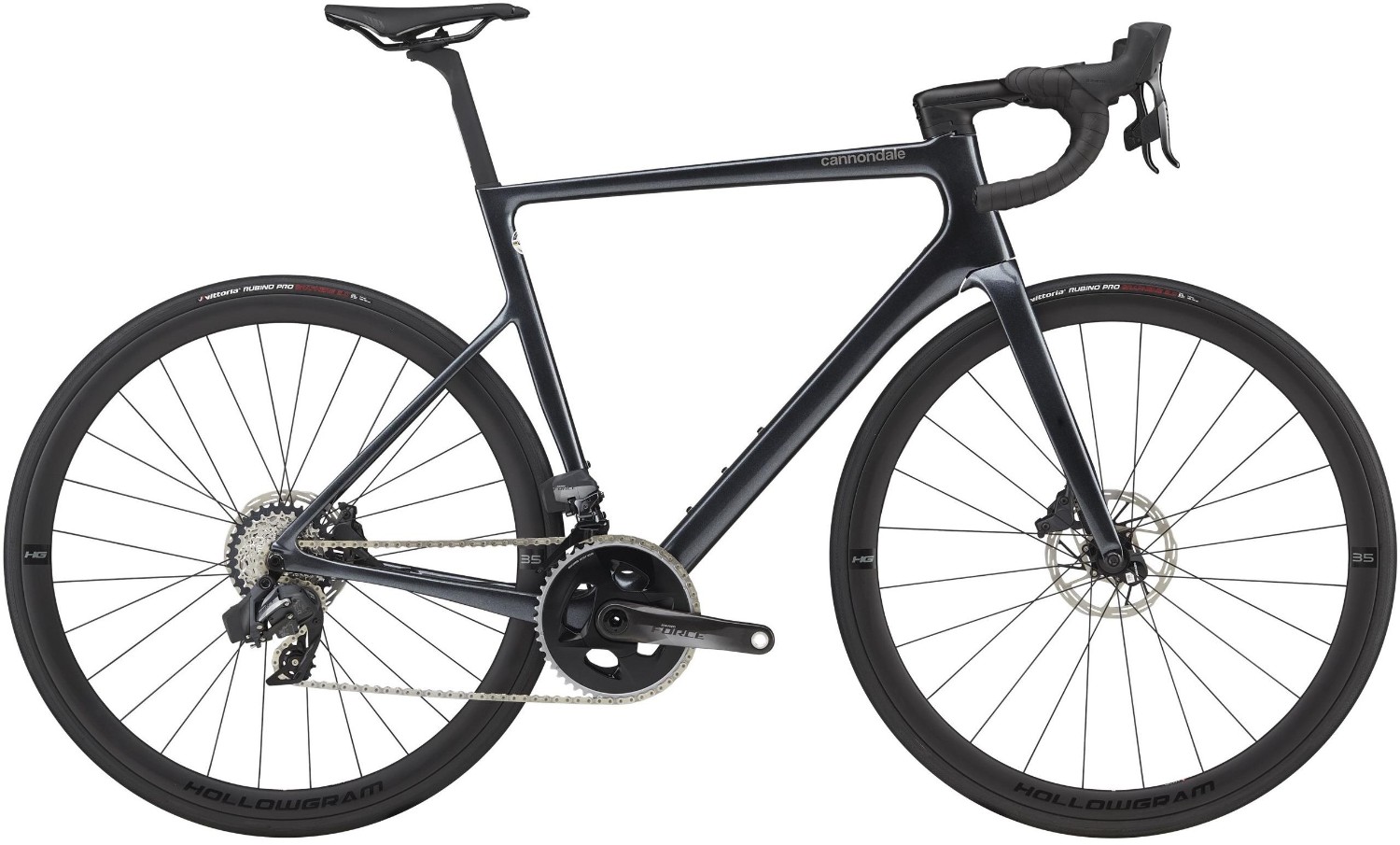

Cannondale SuperSix EVO Carbon Disc Force AXS 2023 - Road Bike
The all-new SuperSix EVO Carbon Disc Force AXS is a beautiful evolution of Cannondale’s classic race machine. Cannondale kept the light weight and telepathic handling of the award-winning SuperSix EVO, while improving all the other features you care about. Smoother, more capable and much, much faster – the SuperSix EVO is built to fly.
Key Features:
- Lightweight low-drag SuperSix EVO carbon frameset so you can ride faster
- SRAM Force AXS, wireless electronic 12-speed groupset for perfect shifting
- HollowGram 35 carbon wheels for ultrafast rolling
- HollowGram carbon SAVE bar and stem for a smoother ride feel
- Sizes: 51cm, 54cm, 56cm, 58cm, 60cm
- Colours: Black Magic
- The Cannondale SuperSix EVO Carbon Disc Force AXS is available with 0% APR finance
Fast, just got faster
30 watts. That's how much power the drag-reducing tube shapes and integrated design of the SuperSix EVO saves over the prior version at 30 mph (48.3 km/h).
Feel the light
The lightest disc brake road frameset Cannondale have ever made. The SuperSix EVO is ready to throw down when the grade goes up.
Swift & sure
Racy geometry and stiffness for explosive speed. Better micro-suspension and big tire clearance for surprising smoothness. It all adds up to precise handling and a ride-feel that’s out of sight.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Cannondale SuperSix EVO Carbon, integrated cable routing with Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder |
| Fork | Cannondale SuperSix EVO BallisTec Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer |
| Headset | Cannondale Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm) |
| Stem | Cannondale HollowGram KNØT, Alloy with cable cover, -6° |
| Bars | Cannondale HollowGram SAVE SystemBar, Carbon, 8° pitch adjust |
| Front Brake | SRAM Force hydraulic disc, 160mm PaceLine rotor |
| Rear Brake | SRAM Force hydraulic disc, 160mm PaceLine rotor |
| Brake Lever | SRAM FORCE eTap AXS HRD |
| Front Mech | SRAM Force eTAP AXS, braze-on |
| Rear Mech | SRAM Force eTap AXS 12-speed |
| Shifters | SRAM Force eTap AXS 12-speed |
| Speed | 24 |
| Rims | HollowGram 35, Carbon, 700c, 24h, 35mm deep, 19mm internal width, tubeless-ready |
| Front Hub | HollowGram, sealed bearing 12x100mm Center Lock |
| Rear Hub | HollowGram 3-pawl, sealed bearing, 12x142mm Center Lock |
| Spokes | HollowGram, 2.0/1.8/2.0, straight-pull |
| Front Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip, clincher |
| Rear Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip, clincher |
| Seat Post | Cannondale HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm) |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Chainset | SRAM Force DUB, 48/35 |
| Bottom Bracket | SRAM DUB PF30 ROAD73A |
| Chain | SRAM Force 12-speed |
| Cassette | SRAM XG-1270, 10-33, 12-speed |
| Pedals | Resin Platform |
Cannondale SuperSix EVO 2025 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 44 | 154 - 165 | 5'1" - 5'5" |
| 48 | 160 - 170 |
5'3" - 5'7" |
| 51 | 165 - 175 |
5'5 - 5'9 |
| 54 | 170 - 180 | 5'7 - 5'11 |
| 56 | 177 - 185 |
5'10 - 6'1 |
| 58 | 182 - 193 |
6'0 - 6'4 |
| 61 | 190 - 200 | 6'3 - 6'7" |
Cannondale SuperSix EVO 2025 Geometry
| 44 | 48 | 51 | 54 | 56 | 58 | 60 | |
| Seat Tube Length (cm) | 40 | 43.8 | 47.7 | 51.5 | 53.4 | 56.7 | 60 |
| Top Tube Horizontal (cm) | 51.2 | 52 | 52.8 | 54.6 | 56.2 | 57.8 | 60 |
| Top Tube Actual (cm) | 46.9 | 47.9 | 48.9 | 50.9 | 52.3 | 54.1 | 56.4 |
| Head Tube Angle | 70.9 | 71.2 | 71.2° | 71.2° | 73.0° | 73.0° | 73.0° |
| Seat Tube Angle Effective | 74.3 | 74.3 | 74.3° | 73.3° | 73.3° | 72.9° | 72.3° |
| Standover (cm) | 69.8 | 72.7 | 75.6 | 78.8 | 80.7 | 83.6 | 86.6 |
| Head Tube Length (cm) | 10 | 11.4 | 13 | 15.4 | 16.5 | 18.8 | 22 |
| Wheelbase (cm) | 98.1 | 98.7 | 99.6 | 101 | 99.4 | 100.7 | 102.4 |
| Front Center (cm) | 58.2 | 58.9 | 59.8 | 61.1 | 59.4 | 60.7 | 62.4 |
| Chain Stay Length (cm) | 41 | 41 | 41 | 41 | 41 | 41 | 41 |
| Bottom Bracket Drop (cm) | 7.4 | 7.4 | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 |
| Bottom Bracket Height (cm) | 26.8 | 26.8 | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 |
| Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
| Trail (cm) | 6 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| Stack (cm) | 50.5 | 52 | 53.5 | 55.5 | 57.5 | 59.5 | 62.5 |
| Reach (cm) | 37 | 37.4 | 37.8 | 38.4 | 38.9 | 39.5 | 40.3 |
