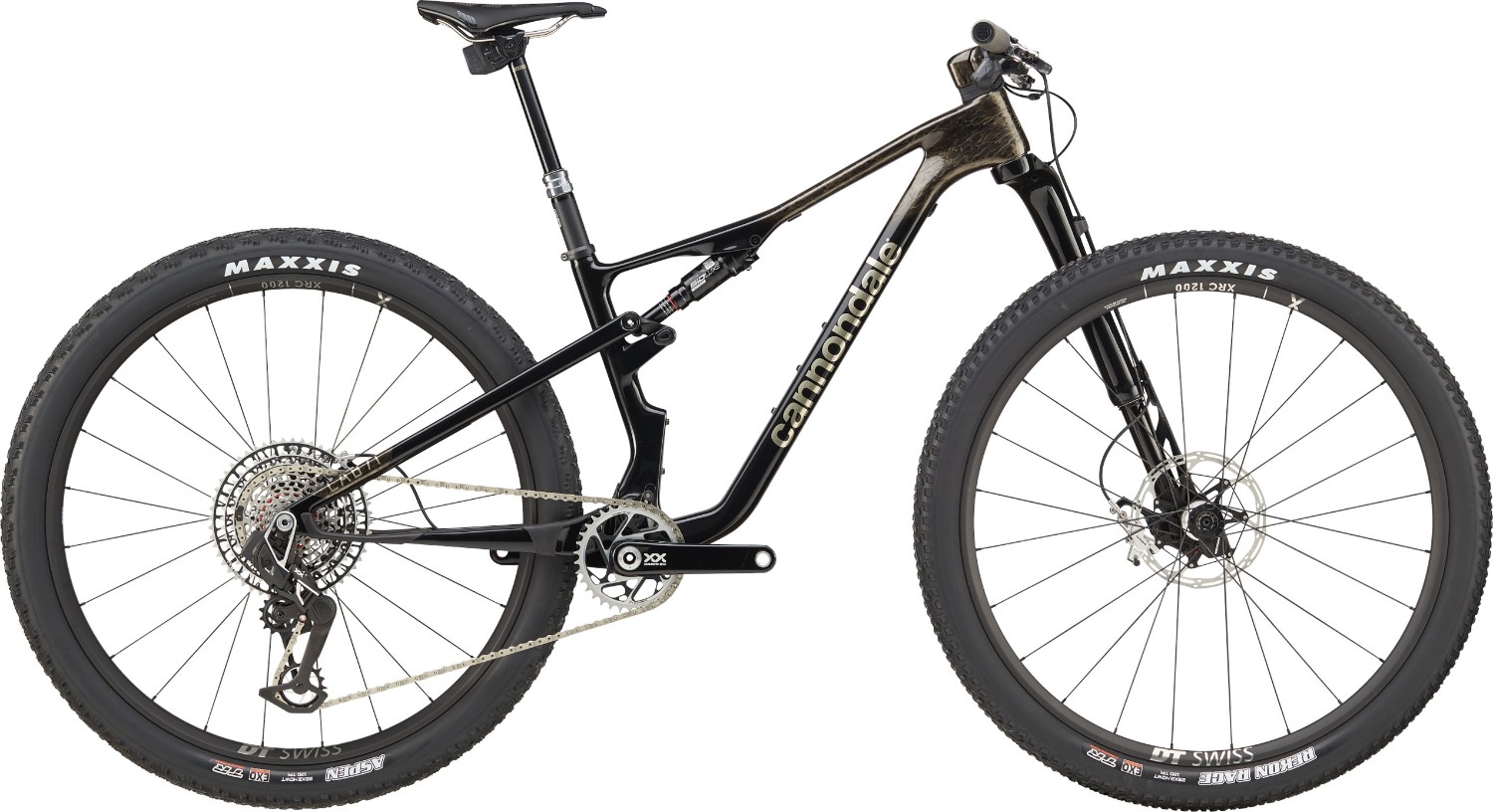

Cannondale Scalpel LAB71 Mountain Bike 2024 - XC Full Suspension MTB
- Ultralight Series 0 Carbon frame with FlexPivot, 120mm travel, and Proportional Response-Tuned Suspension and Geometry
- Lefty Ocho Carbon – the smoothest, most advanced, most precise-handling XC fork in the world. Carbon upper, 120mm travel, with a TwistLoc Ultimate remote lockout.
- Lab71 painted SystemBar XC-One integrated carbon handlebar and stem
- RockShox SIDLuxe Ultimate rear shock with TwistLoc Ultimate remote lockout.
- SRAM’s range-topping XX SL AXS Transmission electronic wireless 12-speed group with Level Ultimate Stealth brakes
- DT Swiss’s lightest, fastest MTB wheelset, the XCR 1200 Spline carbon
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Scalpel LAB71, Series 0 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 148x12mm thru axle, UDH |
| Fork | Lefty Ocho 120 Carbon, 120mm, Chamber Damper, OppO Spring System, tapered steerer, 50mm offset, TwistLoc Ultimate remote dual lockout |
| Rear Shock | RockShox SIDLuxe Ultimate, 2-Pos mode adjust, adjustable rebound, 190x45, TwistLoc Ultimate remote dual lockout |
| Headset | Acros ICR |
| Stem | SystemBar XC-One Flat, carbon integrated bar/stem |
| Bars | SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp |
| Front Brake | SRAM Level Ultimate Stealth, 4-piston hydraulic disc, SRAM CLX rotors, 180mm 6-bolt (F) /160mm centerlock (R) |
| Rear Brake | SRAM Level Ultimate Stealth, 4-piston hydraulic disc, SRAM CLX rotors, 180mm 6-bolt (F) /160mm centerlock (R) |
| Brake Lever | SRAM Level Ultimate Stealth |
| Rear Mech | SRAM XX SL Eagle AXS, T-Type |
| Shifters | SRAM AXS T-Type Ultimate Pod Controller |
| Speed | 12 |
| Rims | DT Swiss XCR 1200 Spline, carbon, 30mm inner width, hookless, TSS tubeless ready |
| Front Hub | DT Swiss Lefty, 6-bolt |
| Rear Hub | DT Swiss 180 Ratchet EXP 36, centerlock, XD driver |
| Spokes | DT Swiss Aerolite straight pull (F) / Aerolite & Competition straight pull (R) |
| Front Tyre | Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready |
| Rear Tyre | Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready |
| Seat Post | RockShox Reverb AXS, 31.6, 125mm (S), 150mm (M-XL) |
| Saddle | Prologo Dimension NDR, Tirox rails |
| Chainset | SRAM XX SL T-Type, 34T |
| Bottom Bracket | SRAM DUB BSA 73mm MTB Wide, Ceramic |
| Chain | SRAM XX SL, T-Type, 12-speed |
| Cassette | SRAM XX SL Eagle, 10-52, T-Type, 12-speed |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
