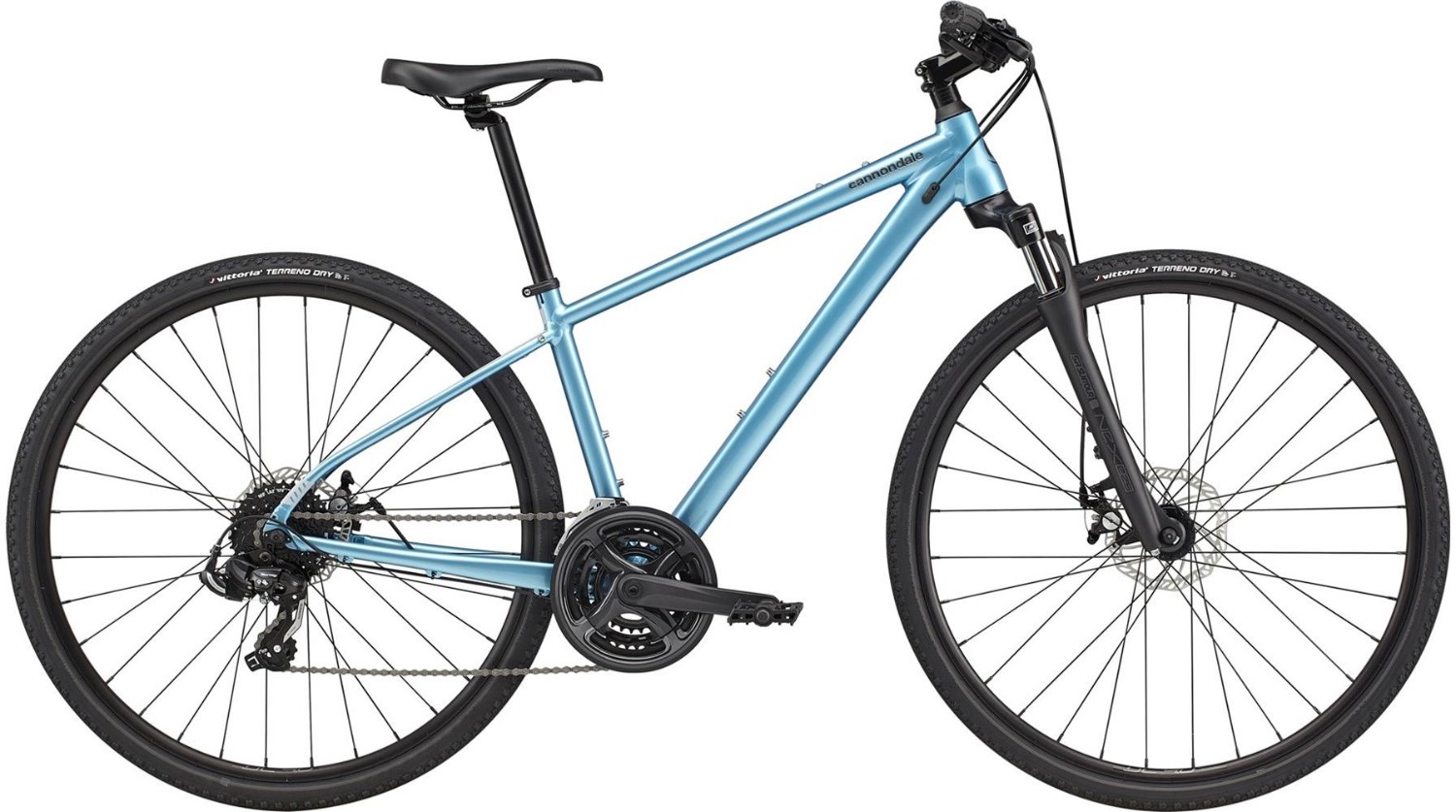

Cannondale Quick CX 4 Womens 2023 - Hybrid Sports Bike
The Cannondale Quick CX 4 is a womens urban-adventure bike for cities and town pathways. Expand your horizons on one bike that can do it all in the open countryside and everywhere else.
Key Features:
- SmartForm C3 Ally frame ensures a more relaxed riding position
- 63mm of travel from the Suntour NEX-E25 forks inspires confident handling
- 40mm Vittoria Terreno Dry Tyres offer a comfortable feel
- Shimano Tourney 7 Speed Groupset for all-year-round reliliability
- Colours: Alpine
- Sizes: Extra Small, Small, Medium
- The Cannondale Quick CX 4 Womens bike is available with 0% APR finance
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All-New, SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Suntour NEX-E25, 63mm, coil, custom crown |
| Headset | Semi Integrated, Tapered |
| Stem | 6061 Alloy, 31.8, 8° |
| Bars | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 660mm |
| Front Brake | Promax mechanical disc, 160mm rotors |
| Rear Brake | Promax mechanical disc, 160mm rotors |
| Brake Lever | Shimano ST-EF41 |
| Front Mech | Shimano Tourney, 31.8 Clamp |
| Rear Mech | Shimano Tourney |
| Shifters | Shimano Tourney, 7-speed |
| Speed | 21 |
| Rims | DC 4.0, double wall w/eyelet, 32h |
| Front Hub | Modus JA159 |
| Rear Hub | Modus JA159R |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Rear Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Seat Post | 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | Prowheel, 48/38/28 |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC Z7, 7-speed |
| Cassette | Sunrace, 14-34, 7-speed |
| Pedals | Cannondale Platform |
Cannondale Quick CX Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick CX Geometry Chart
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 573 | 590 | 607 | 623 | 640 |
| Reach | 391 | 402 | 412 | 422 | 432 |
| Head Tube Length | 90 | 108 | 126 | 143 | 162 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Bottom Bracket Height | 293 | 293 | 293 | 293 | 293 |
| Bottom Bracket Drop | 64 | 64 | 64 | 64 | 64 |
| Trail | 78 | 78 | 78 | 78 | 78 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 648 | 666 | 682 | 698 | 715 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1091 | 1108 | 1124 | 1141 | 1158 |
| Top Tube Length (horizontal) | 566 | 582 | 597 | 612 | 628 |
| Standover Height | 677 | 725 | 764 | 802 | 840 |
| Seat Tube Length | 350 | 400 | 450 | 500 | 550 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
