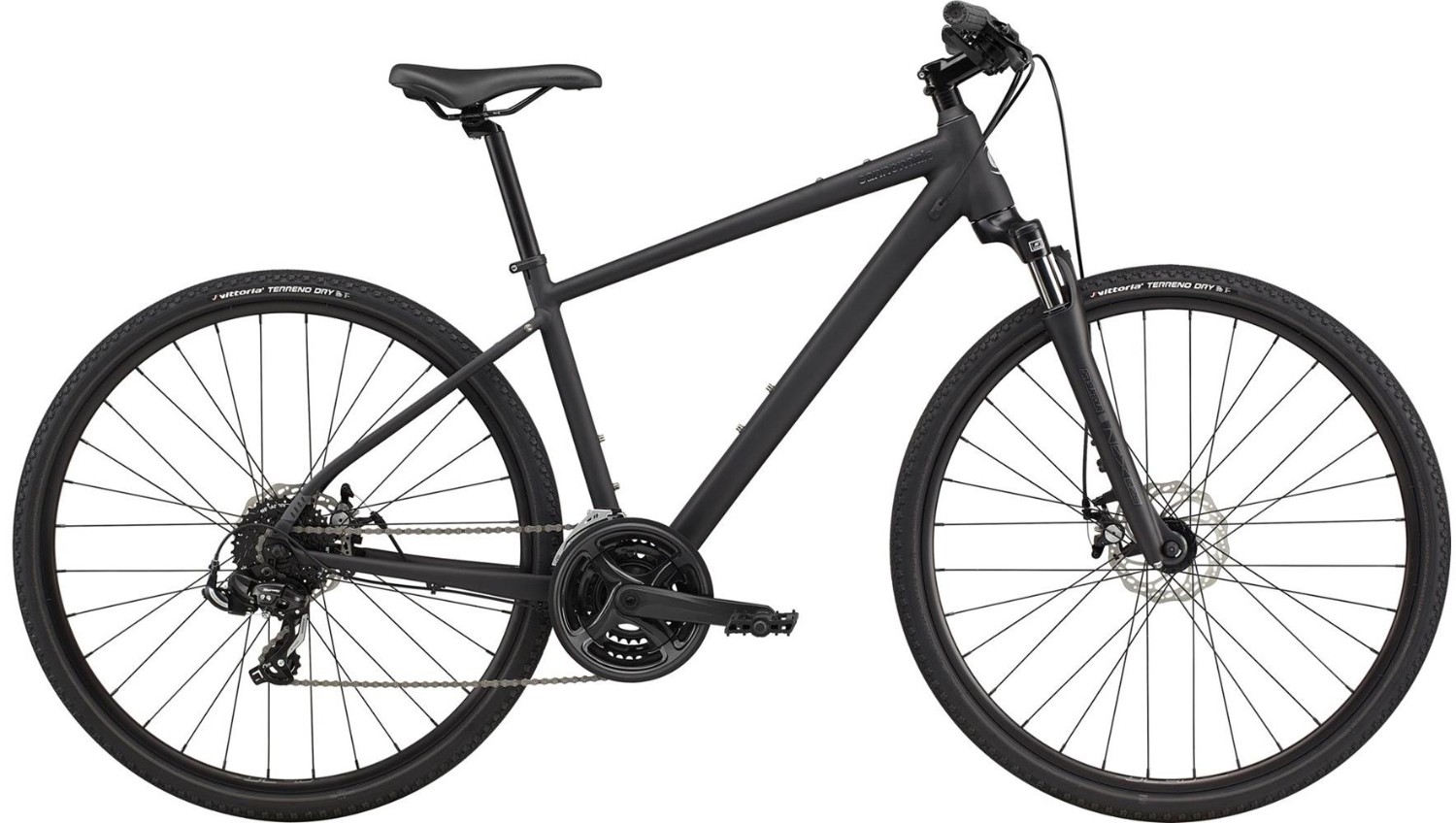

Cannondale Quick CX 4 2023 - Hybrid Sports Bike
All Ways, All Days.
An urban-adventure bike built for the cities and the town pathways, the great open countryside and everything in between. Expand your horizons with the one bike to do it all.
Key Features:
- Rule all Roads. Comfort, control, visibility and speed are all taken care of with the Quick CX. Bump-absorbing suspension forks, multi-surface tyres and reflective graphics keep you in charge of the highways and byways at all times.
- Positioned for Confidence. An upright, mountain bike inspired riding position feels natural, confident and comfortable in all riding situations.
- Lighten Up. We’ve thought of every detail when it comes to creating the new Quick CX – years of aluminum expertise means that the bike is noticeably lightweight, offering enjoyable performance, on-road or off.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Suntour NEX-E25, 63mm, coil, custom crown |
| Headset | Semi Integrated, Tapered |
| Stem | 6061 Alloy, 31.8, 8° |
| Bars | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm |
| Front Brake | Promax mechanical disc, 160mm rotors |
| Rear Brake | Promax mechanical disc, 160mm rotors |
| Brake Lever | Promax |
| Front Mech | microSHIFT Dual Pull Compact, Steel Cage, Steel Band Clamp |
| Rear Mech | microSHIFT M26L |
| Shifters | microSHIFT, 3x7-speed |
| Speed | 21 |
| Rims | DC 4.0, double wall w/eyelet, 32h |
| Front Hub | Alloy, Sealed, QR |
| Rear Hub | Alloy, Sealed, QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Rear Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Seat Post | 6063 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | Prowheel, 48/38/28 |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC Z7, 7-speed |
| Cassette | Sunrace, 14-34, 7-speed |
| Pedals | Cannondale Platform |
Cannondale Quick CX Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick CX Geometry Chart
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 573 | 590 | 607 | 623 | 640 |
| Reach | 391 | 402 | 412 | 422 | 432 |
| Head Tube Length | 90 | 108 | 126 | 143 | 162 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Bottom Bracket Height | 293 | 293 | 293 | 293 | 293 |
| Bottom Bracket Drop | 64 | 64 | 64 | 64 | 64 |
| Trail | 78 | 78 | 78 | 78 | 78 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 648 | 666 | 682 | 698 | 715 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1091 | 1108 | 1124 | 1141 | 1158 |
| Top Tube Length (horizontal) | 566 | 582 | 597 | 612 | 628 |
| Standover Height | 677 | 725 | 764 | 802 | 840 |
| Seat Tube Length | 350 | 400 | 450 | 500 | 550 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
