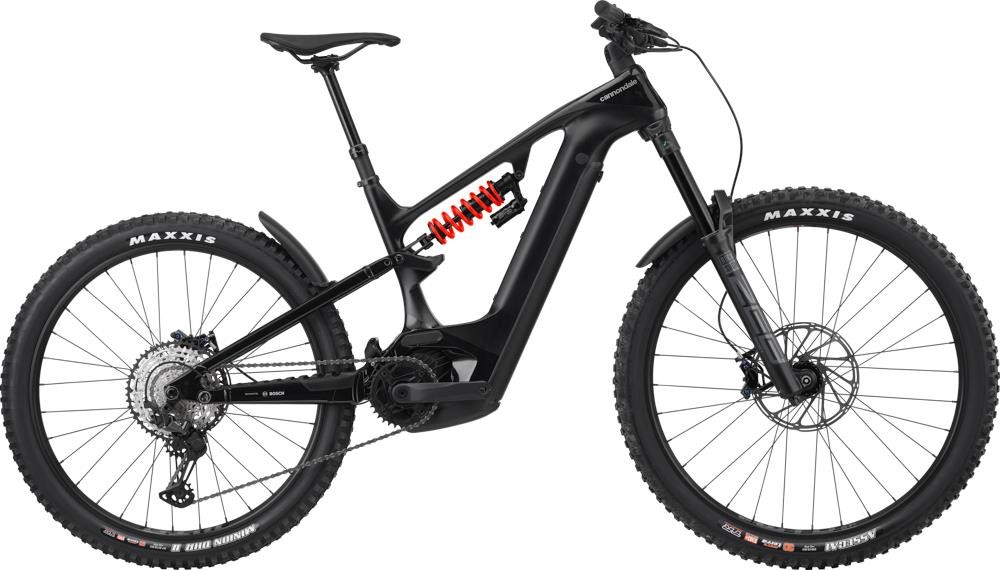

Cannondale Moterra Neo Carbon LT 2 2023 - Electric Mountain Bike
Breaking Boundaries
Getting there was the easy part, now it's time for the fun part, the down! With 170 mm/ 165mm of travel, piggy back shock and burly build the Cannondale Moterra Neo Carbon e-biks is ready to give as much as you are.
Key features:
- Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm frame
- RockShox Zeb Select forks with 170mm of bump soaking travel
- RockShox Deluxe Select+ coil shock takes care of the 160mm of rear travel
- Shimano XT 1x12 gears offer smooth and consistent shifting
- Magura MT5 brakes offer all weather stopping power
- Sizes: S, M, L, XL
- Colours: Matte Black, Cool Mint
- The Cannondale Moterra Neo Carbon LT 2 is available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX 250W
- Battery: Bosch PowerTube 750Wh
- Interface: Bosch Kiox 300 w/ LED remote
Powered By Bosch
Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive-feeling way. This is e-mountain bike power at its best.
Proportional Response Suspension
Riders come in all sizes, but our Proportional Response suspension is the only design that addresses this pretty obvious fact. Each size frame gets its own custom suspension kinematics - different mounting points, links and leverage ratios - for truly size-specific suspension performance. Better traction, more efficient pedaling, and more active suspension under braking for every rider.
750Wh Battery
Go longer. Do more laps. Explore the furthest peaks.With the largest battery Bosch makes, range anxiety is a thing of the past. Charge it on the bike, or remove it easily for off-bike charging.
Built Light, Built Tough
A sophisticated carbon fiber main frame keeps mass to a minimum. And since our engineers prioritized durability over gram counting, confidence is built in (as is a lifetime warranty).
Party in the Back
29" front and 27.5" in back lets you go deep when it gets steep.
Key Benefits:
- Rowdy Ready. With 170mm of travel up front and 165mm in the rear, a piggyback coil shock and burly components, Moterra Neo LT lives to session your local trails, or get in deep in the high mountains.
- Absolute Power. When you’ve got the most powerful, advanced systems from the most respected name in e-bike technology, even the uphills have flow.
- Built For You. Big power makes it easy, but the handling is what makes it rip. With our Proportional Response sizespecific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was made just for you. Telepathic response, silky smooth suspension, and endless grip - the way it should be.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 160mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 148x12mm thru-axle, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Zeb Select, Charger RC, 170mm, DebonAir, 15x110mm, 51mm offset |
| Rear Shock | RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound |
| Headset | Acros integrated sealed bearing, tapered |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Bars | Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
| Front Brake | Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors |
| Rear Brake | Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors |
| Brake Lever | Magura MT5 Trail HC hydraulic disc |
| Rear Mech | Shimano XT |
| Shifters | Shimano SLX, 12-speed |
| Speed | 12 |
| Rims | WTB ST i30 TCS, 32h, Tubeless ready |
| Front Hub | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
| Rear Hub | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
| Spokes | Stainless Steel, 14g |
| Front Tyre | (F) Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready |
| Rear Tyre | (F) Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready |
| Seat Post | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Chainset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain | Shimano SLX, 12-speed |
| Cassette | Shimano SLX, 10-51, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance Line CX 250W |
| User Interface | Bosch Kiox 300 w/ LED remote |
Cannondale Moterra Size Chart
|
Frame Size |
Height (cm) |
Height (Feet) |
|
Small |
154 – 165 |
5’ 1” – 5’ 5” |
|
Medium |
162 – 175 |
5’ 4” – 5’ 9” |
|
Large |
172 – 185 |
5’ 8” – 6’ 1” |
|
X Large |
182 – 195 |
6’ 0” – 6’ 5” |
