(no reviews)Product ID: 267752

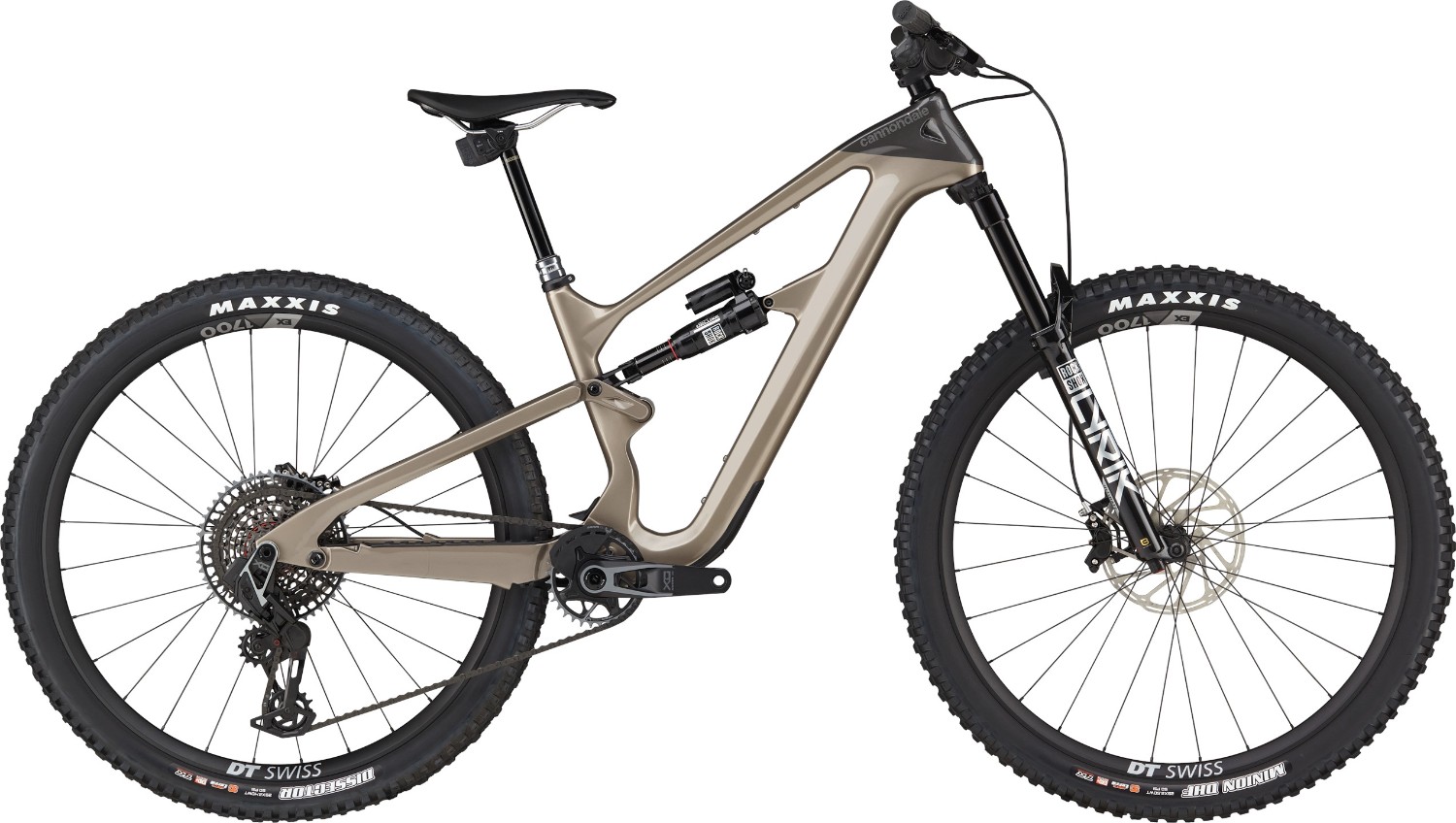

Cannondale Habit LT LTD Mountain Bike 2024 - Trail Full Suspension MTB
Habit is a trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. When fun is all you need.
The Thrill Seeker
The Habit LT is a progressive trail mountain bike that is down for the ups but lives to get down. Precisely tuned for when you need a little controlled chaos.
Key Features:
- Full Carbon frame -140mm travel / SRAM XO Eagle AXS Transmission 12-speed electronic drivetrain
- RockShox Lyrik Ultimate 150mm fork & RockShox Super Deluxe Ultimate rear shock
- DT Swiss EX1700 Spline wheelset / RockShox Reverb AXS electronic dropper post
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Habit Full Carbon, 140mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger |
| Fork | RockShox Lyrik Ultimate, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset |
| Rear Shock | RockShox Super Deluxe Ultimate, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0° |
| Bars | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Front Brake | SRAM G2 RSC hydraulic disc, 200/200mm HS2 rotors, centerlock |
| Rear Brake | SRAM G2 RSC hydraulic disc, 200/200mm HS2 rotors, centerlock |
| Brake Lever | SRAM G2 RSC hydraulic disc |
| Rear Mech | SRAM XO Eagle AXS, T-Type |
| Shifters | SRAM AXS T-Type POD Controller |
| Speed | 12 |
| Rims | DT Swiss EX1700 Spline, 28h, tubeless ready |
| Front Hub | DT Swiss 350, 15x110mm thru-axle |
| Rear Hub | DT Swiss 350 with Ratchet System 36T SL, 12x148mm thru-axle |
| Spokes | DT Competition Race, straight pull |
| Front Tyre | Maxxis Minion DHF, 29x2.4" (27.5x2.4" - XS), 3C, EXO+, tubeless ready |
| Rear Tyre | Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), 3C, EXO+, tubeless ready |
| Seat Post | RockShox Reverb AXS, 31.6, 125mm (XS-S), 150mm (M) 170mm (L-XL) |
| Saddle | Cannondale Flat Race, Ti rails |
| Chainset | SRAM XO Eagle T-Type, X-Sync, 30t |
| Bottom Bracket | SRAM DUB BSA MTB73 Wide |
| Chain | SRAM XO Eagle T-Type, 12-speed |
| Cassette | SRAM XO Eagle, 10-52, T-Type, 12-speed |
Cannondale Trail Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
154 – 162 |
5’1” – 5’4” |
|
M |
162 – 172 |
5’4” – 5’8” |
|
L |
170 – 182 |
5’7” – 6’0” |
|
XL |
182 – 190 |
6’0” – 6’3” |
Cannondale Trail Geometry Chart
| Size | XS (27.5") | SM (27.5") | MD (29") | LG (29") | XL (29") |
|---|---|---|---|---|---|
| Stack | 573 | 591 | 623 | 632 | 641 |
| Reach | 365 | 402 | 425 | 447 | 469 |
| Head Tube Length | 95 | 95 | 105 | 115 | 125 |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Bottom Bracket Height | 293 | 293 | 307 | 307 | 307 |
| Bottom Bracket Drop | 60 | 60 | 65 | 65 | 65 |
| Trail | 97 | 97 | 101 | 101 | 101 |
| Fork Rake/Offset | 42 | 42 | 46 | 46 | 46 |
| Front Centre | 621 | 665 | 702 | 728 | 754 |
| Chainstay Length | 440 | 440 | 445 | 445 | 445 |
| Wheelbase | 1054 | 1098 | 1140 | 1166 | 1192 |
| Top Tube Length (horizontal) | 535 | 577 | 609 | 634 | 659 |
| Standover Height | 673 | 710 | 768 | 795 | 839 |
| Seat Tube Length | 330 | 381 | 432 | 470 | 533 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
