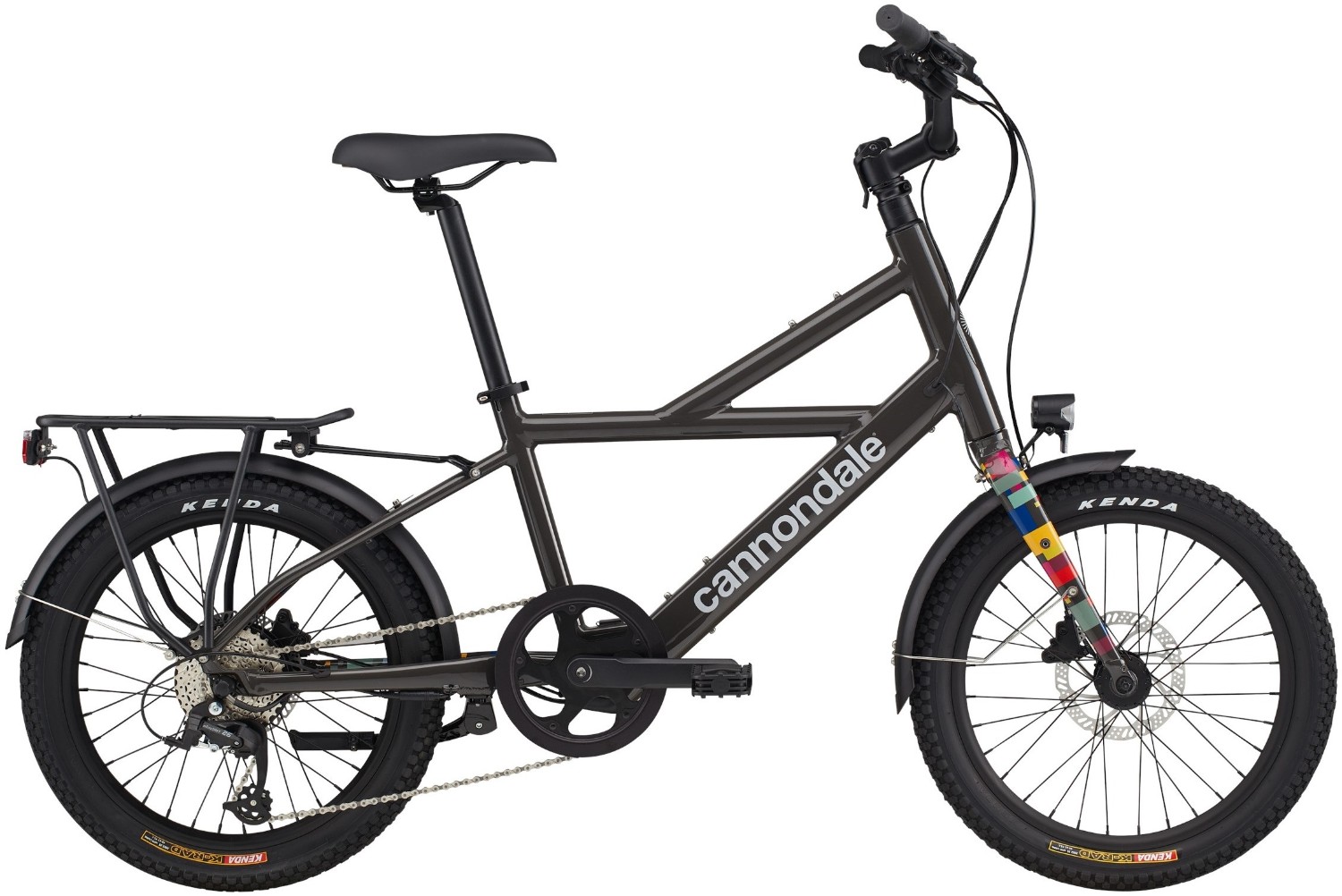

Cannondale Compact Neo 2023 - Electric Hybrid Bike
The Compact Neo is made for convenience. With its smart folding stem and pedals, parking becomes a breeze, fitting into tight spaces effortlessly. Equipped with lights, fenders, a rear rack, and grippy Kenda K-Rad 20x2.35" tyres, it's ready for any urban adventure. The 250Wh Hyena battery powers the 250W Hyena motor, offering a smooth and efficient ride. Cannondale's attention to detail shines through in its versatile design, accommodating various rider sizes comfortably.
Key Features:
- SmartForm C2 alloy, hidden downtube battery, ensuring a sleek profile and lightweight construction.
- Tektro HD-R280 hydraulic discs for reliable stopping power and control in various conditions.
- Microshift 8-speed shifting paired with a Samox 48t chainset, delivering smooth and efficient rides.
- 20" Cannondale lightweight alloy rims with Kenda K-Rad 20x2.35" tyres for excellent grip and stability.
- TranzX folding stem and Cannondale folding pedals for easy storage and parking.
Drive Information:
- Motor: Hyena MRC-250, 250W, offering efficient assistance for your rides.
- Battery: Hyena 250Wh, ensuring a reliable power source for your urban adventures.
- User Interface: Hyena HMI LED display, providing clear information and control during your rides.
Compact Neo is not just an e-bike; it's your companion for effortless urban exploration. Experience the city with unmatched ease, style, and convenience, all packed into this compact, versatile, and powerful electric ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Compact Neo, SmartForm C2 Alloy, hidden downtube battery, 135x9mm, BSA 73, post mount disc |
| Fork | Compact Neo SmartForm C2 Alloy, 1-1/8" steerer, post mount disc, 100x9mm |
| Headset | Semi-Integrated, 1-1/8" |
| Stem | TranzX Folding Stem |
| Bars | Cannondale Cruise Control riser, 6061 alloy, 31.8mm, 15° back, 740mm |
| Front Brake | Tektro HD-R280 hydraulic disc, 160/160mm rotors |
| Rear Brake | Tektro HD-R280 hydraulic disc, 160/160mm rotors |
| Brake Lever | Tektro |
| Rear Mech | microSHIFT M26S Short-Cage |
| Shifters | microSHIFT 39-8R Thumb-Tap, 8-speed |
| Speed | 8 |
| Rims | Cannondale, lightweight alloy, 20", 32h Front / 36h Rear |
| Front Hub | Formula DC-1420, 100mm QR |
| Rear Hub | Hyena 250W Rear Hub Motor MRC-250 |
| Spokes | Stainless steel |
| Front Tyre | Kenda K-Rad, 20 x 2.35" |
| Rear Tyre | Kenda K-Rad, 20 x 2.35" |
| Seat Post | Cannondale 4, 6061 Alloy, 31.6 |
| Saddle | Cannondale Treadwell, 170mm, steel rails |
| Chainset | Samox, 48T |
| Bottom Bracket | Hyena torque sensor |
| Chain | KMC X8, 8-speed |
| Cassette | Sunrace, 11-34, 8-speed |
| Pedals | Cannondale Folding |
| Battery Size (WH) | Hyena 250Wh |
| Motor | Hyena MRC-250, 250W |
| User Interface | Hyena HMI LED |
Cannondale Compact Neo Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
One Size |
134 - 185 |
4’5” – 6’1” |
Cannondale Compact Neo Geometry Chart
| Size | OS |
|---|---|
| Stack | 530 |
| Reach | 393 |
| Head Tube Length | 266 |
| Head Tube Angle | 68° |
| Bottom Bracket Height | 280 |
| Bottom Bracket Drop | -1.9 |
| Trail | 6.4 |
| Fork Rake/Offset | 3.8 |
| Front Centre | 656 |
| Chainstay Length | 430 |
| Wheelbase | 1085 |
| Top Tube Length (horizontal) | 555 |
| Standover Height | 590 |
| Seat Tube Length | 353 |
| Seat Tube Angle | 73° |
| Tyre Size | 20″ |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
