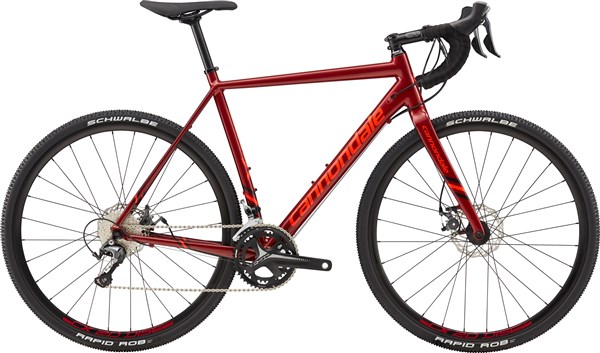

Cannondale CAADX Tiagra 2018 - Cyclocross Bike
Cannondale’s entry level cyclocross racer is built to take on challenging tracks, while putting a smile on your face. The Cannondale CAADX Tiagra matches a lightweight frame to a Shimano Tiagra groupset and 700c wheels with mini-MTB tyres.
The SmartForm C2 alloy frame is lightweight and strong, being able to take some knocks off road, while also climbing steep hills easily. Cannondale’s Speed Save Micro-Suspension uses dramatically flattened chainstays and seatstays to give better traction and bump absorption, leading to greater comfort and control. The fork has an alloy steerer and carbon blades that help with vibration absorption. The steerer is tapered to balance strength and weight.
Shimano’s Tiagra groupset has a 2x10 speed setup, and with the 11-32T cassette, offers plenty of gear ratios for any situation. For stopping duties, Promax mechanical disc brakes do the job with power in spades. Making sure you’ve got traction, Schwalbe Rapid Rob 35c tyres are like mini MTB tyres, delivering grip in a variety of conditions.
The Cannondale CAADX Tiagra isn’t just for racing, and makes for a superb commuter during the week, so enjoy the versatility of this cyclocross bike.
Cannondale CAADX reviewKey Features:
- SmartForm C2 alloy frame is lightweight and strong
- Speed Save Micro-Suspension frame design smoothens terrain
- Shimano Tiagra 2x11 speed drivetrain for wide range of gears
- Powerful Promax mechanical disc brakes
- Schwalbe Rapid Rob in 35c aids traction in challenging terrain
- Removable seat stay fender mount for secure mudguard fitting
- Sizes: 46cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colour: Fire Red/Jet Black/Acid Red
- The Cannondale CAADX Tiagra is available with 0% APR finance
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Cannondale CAADX Sizing
Frame Size
46
5'0"
5'3"
51
5'3"
5'7"
54
5'7"
5'10"
56
5'10"
6'2"
58
6'2"
6'5"
61
6'5"
6'9"
Read our bike size guide for more information on sizing.
Cannondale CAADX Geometry
|
Frame Size |
46 |
51 |
54 |
56 |
58 |
61 |
|
Seat tube length |
50 |
52.5 |
54 |
56 |
58 |
61 |
|
Top tube horizontal |
50.7 |
52.4 |
53.7 |
55.5 |
56.8 |
58.6 |
|
Head tube angle |
70° |
71° |
71° |
71° |
71° |
71° |
|
Seat tube angle |
74.6° |
74° |
74° |
73.5° |
73.5° |
73° |
|
Standover |
75.1 |
77.3 |
79.1 |
81 |
83.1 |
85.5 |
|
Head tube length |
9.3 |
11 |
13.2 |
15.3 |
17.5 |
19.6 |
|
Wheelbase |
100.2 |
100.5 |
102 |
103.3 |
104.8 |
106.1 |
|
Front centre |
59 |
59.3 |
60.7 |
62.1 |
63.5 |
64.8 |
|
Chainstay length |
42.2 |
42.2 |
42.2 |
42.2 |
42.2 |
42.2 |
|
BB Drop |
7 |
7 |
6.9 |
6.9 |
6.8 |
6.8 |
|
BB Height |
28 |
28 |
28.1 |
28.1 |
28.2 |
28.2 |
|
Fork rake |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
Trail |
6.9 |
6.2 |
6.2 |
6.2 |
6.2 |
6.2 |
|
Stack |
51.5 |
53.5 |
55.5 |
57.5 |
59.5 |
61.5 |
|
Reach |
36.5 |
37.1 |
37.8 |
38.5 |
39.2 |
39.8 |
