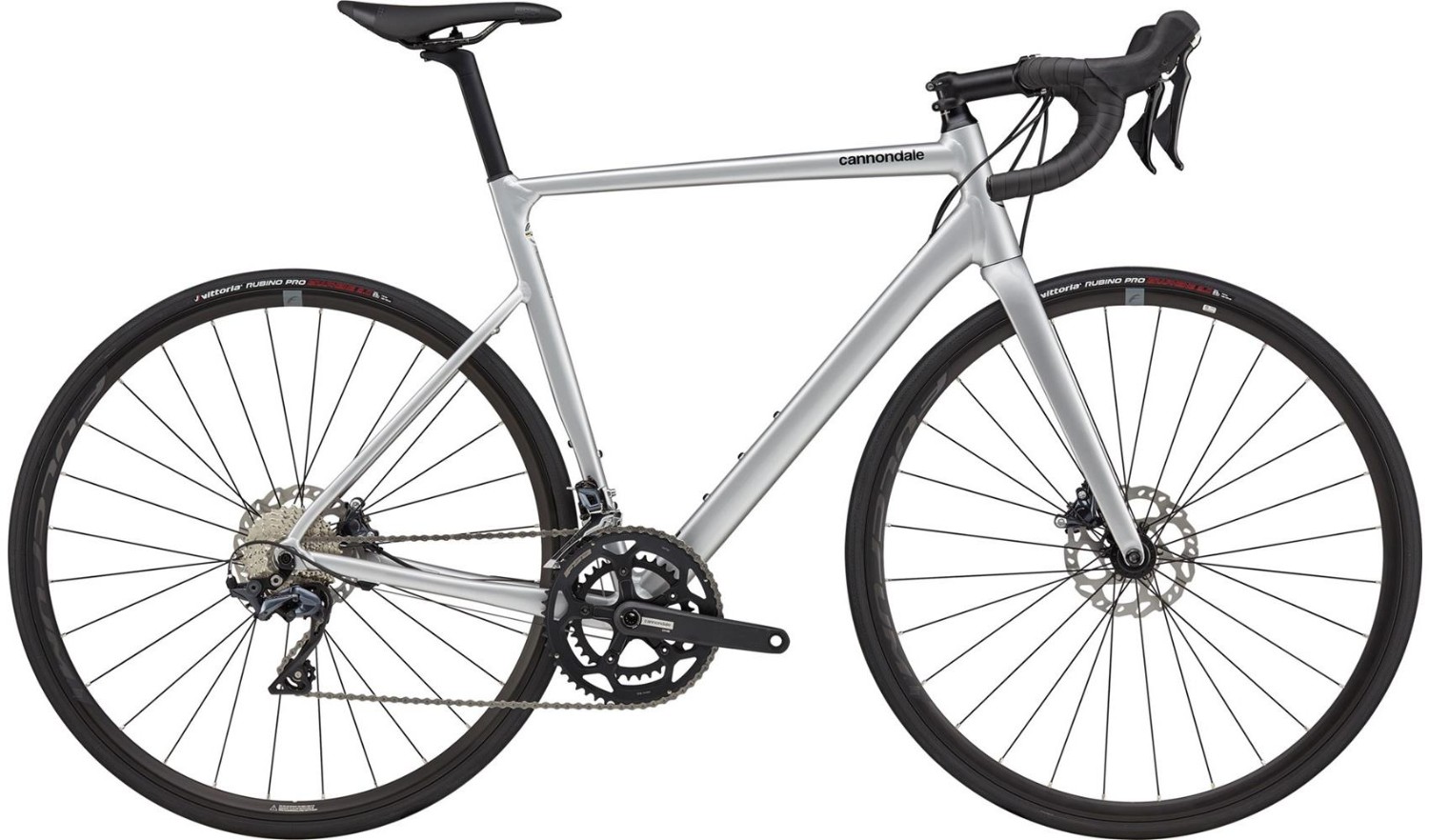

Cannondale CAAD13 Disc Ultegra 2023 - Road Bike
Make your own luck.
This is the speediest, smoothest, best handling, finest performing aluminum race bike on the planet.
Key Features:
- The Aluminum Experts
Cannondale forged its legacy in aluminum and CAAD13's SmartForm C1 Premium Alloy is the lightest, most sophisticated aluminum construction available.
- Speed of Light
The frame features highly truncated airfoil tube shapes that offer the same weight, and equal or better stiffness, than round tubes, but can reduce drag by up to 30%.
- Smoother Than Ever
CAAD bikes have always been known for their surprisingly smooth ride. CAAD13 is even smoother, thanks to the newly designed SAVE rear triangle, integrated seat binder and 27 KNØT seat post.
- Clearly Capable
The new frame design has clearance for some seriously big rubber. 30mm tires fit with ease, for new levels of comfort and capability on any kind of road.
- HollowGram SAVE SystemBar
Svelte stem and bar profile reduces drag and absorbs shock for added speed and comfort. Two-piece design allows interchangeability and 8° of pitch adjustment to perfectly fine-tune rider position.
- HollowGram 45 SL KNØT Carbon Wheels
An evolution of our wide, ultra-fast, low-drag rim profile with a light, versatile 45mm depth. Maintains high aerodynamic efficiency even with big tires.
- Connected
An integrated wheel sensor delivers hyper accurate speed, route and distance info, registers your bike, reminds you of needed service and more, all through the free Cannondale App.
- Speed Release Equipped
The Speed Release thru-axles allow faster, easier wheel changes and are compatible with most standard thru-axle wheelsets.
- Fender Up
Fully fender ready. A removable fender bridge on the rear stays is there when you need it, gone when you don't.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready |
| Fork | BallisTec Carbon, SAVE, 1-1/8"" to 1-1/4"" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm) |
| Headset | CAAD13, integrated, 1-1/8"" - 1-1/4 |
| Stem | Cannondale 2, 6061 Alloy, 31.8, 7° |
| Bars | Cannondale 2, 7050 alloy, Compact |
| Front Brake | Shimano Ultegra hydraulic disc, 160mm RT70 rotors |
| Rear Brake | Shimano Ultegra hydraulic disc, 160mm RT70 rotors |
| Brake Lever | Shimano Ultegra hydraulic disc |
| Front Mech | Shimano Ultegra, braze-on |
| Rear Mech | Shimano Ultegra |
| Shifters | Shimano Ultegra, 11-speed |
| Speed | 22 |
| Rims | Fulcrum Racing 900 DB |
| Front Hub | Fulcrum Racing 900, 12x100mm centerlock |
| Rear Hub | Fulcrum Racing 900, 12x142mm centerlock |
| Spokes | Fulcrum, Stainless steel |
| Front Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Rear Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Seat Post | HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm, 15mm offset |
| Saddle | Prologo Nago RS STN |
| Chainset | Cannondale 1, BB30a, FSA rings, 52/36 |
| Bottom Bracket | Cannondale BB30 |
| Chain | Shimano HG601, 11-speed |
| Cassette | Shimano 105, 11-30, 11-speed |
Cannondale CAAD13 2021 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 44 | 157 - 165 | 5'2 - 5'5 |
| 48 | 160 - 170 | 5'3 - 5'7 |
| 51 | 165 - 175 | 5'5 - 5'9 |
| 54 | 170 - 180 | 5'7 -5'11 |
| 56 | 177 - 185 | 5'10 - 6'1 |
| 58 | 182 - 193 | 6'0 - 6'4 |
| 60 | 187 - 198 | 6'2 - 6'6 |
Cannondale CAAD13 2021 Geometry
| 44 | 48 | 51 | 54 | 56 | 58 | 60 | 62 | |
| Seat tube (cm) | 40.4 | 44.2 | 48.1 | 51.9 | 54 | 56.2 | 58.3 | 60.4 |
| Top tube horizontal (cm) | 51 | 52 | 53 | 54.6 | 56.2 | 57.8 | 59.4 | 61.1 |
| Head tube angle | 70.9 | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 | 73 |
| Seat tube angle | 74.5 | 74.3 | 74.1 | 73.7 | 73.3 | 72.9 | 72.5 | 72.1 |
| Standover (cm) | 68.6 | 72.3 | 75.3 | 79 | 80.5 | 82.9 | 84.8 | 86.8 |
| Head tube length (cm) | 9.4 | 11.4 | 13 | 15.4 | 16.4 | 18.8 | 20.9 | 23 |
| Wheelbase (cm) | 97.6 | 98.5 | 99.4 | 100.8 | 99.2 | 100.5 | 101.6 | 102.8 |
| Front centre (cm) | 58.1 | 58.9 | 59.8 | 61.1 | 59.4 | 60.7 | 61.8 | 63 |
| Chainstay length (cm) | 40.8 | 48.8 | 48.8 | 40.8 | 40.8 | 40.8 | 40.8 | 40.8 |
| BB drop (cm) | 7.9 | 7.4 | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 | 6.9 |
| BB height (cm) | 26.3 | 26.8 | 26.8 | 27.15.5 | 27.1 | 27.3 | 27.3 | 27.3 |
| Fork rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Trail (cm) | 6.0 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| Stack (cm) | 50.5 | 52 | 53.5 | 55.5 | 57.5 | 59.5 | 61.5 | 63.5 |
| Reach (cm) | 37 | 37.4 | 37.8 | 38.4 | 38.9 | 39.5 | 40 | 40.6 |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Cannondale CAAD13 Disc Ultegra 2023 - Road Bike.
This product is no longer available.
