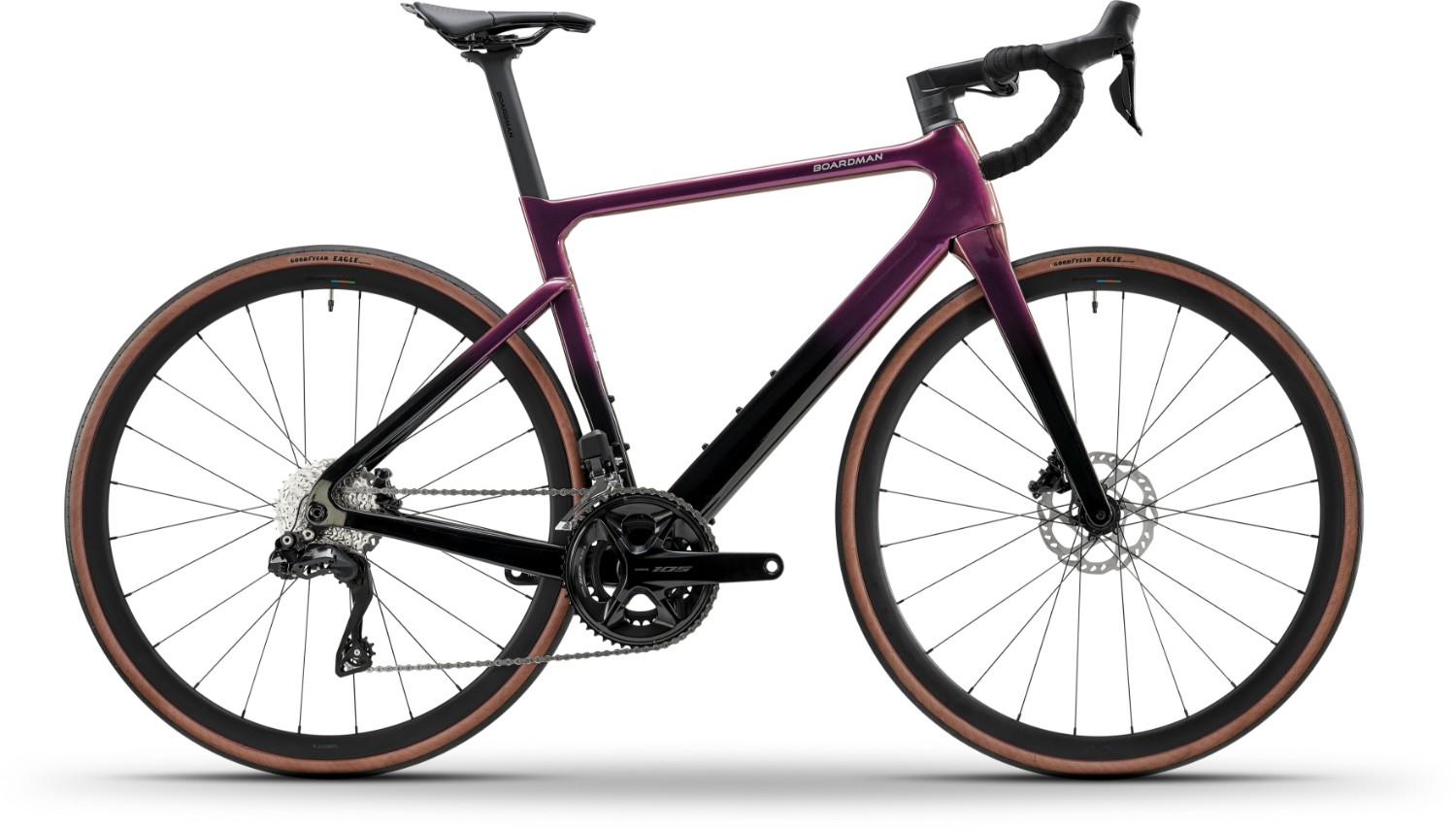

Boardman SLR 9.2 Carbon 2025 - Road Bike
The Boardman SLR 9.2 Carbon is designed for speed and endurance, with a C10 carbon frame that reduces drag and maximises power transfer. Compared to previous models, it delivers a 5.7-watt saving, helping you ride faster and longer with the same effort. The frame also features increased bottle and storage capacity, hidden mudguard mounts, and SRAM’s UDH standard, making it a versatile choice for all-season riding.
Key Features:
- C10 Carbon frame – Lightweight, aerodynamic, and optimised for efficiency
- C10 Carbon fork – Improves handling precision and vibration damping
- Shimano 105 Di2 2x12 drivetrain – Instant, precise electronic shifting
- Shimano 105 hydraulic disc brakes – Consistent braking control in all weather
- Alex Alloy Road 30mm wheels – Tubeless-ready with Goodyear Eagle tyres
- Boardman Aero Carbon seatpost – Improves compliance and aerodynamics
- Available with 0% APR finance
The Shimano 105 Di2 R7170 groupset takes shifting performance to the next level, providing precise, effortless electronic gear changes at the press of a button. Combined with Shimano 105 hydraulic disc brakes, the SLR 9.2 ensures powerful, consistent braking, even in wet conditions.
The Alex Alloy Road 30mm wheels are tubeless-ready, paired with Goodyear Eagle tyres for race-inspired grip and puncture protection. With 12mm thru-axles and sealed bearings, these wheels enhance power transfer and rolling efficiency.
A Prologo Scratch M5 saddle ensures ergonomic support, while the Boardman Aero Carbon seatpost improves compliance and aerodynamics. The flared alloy handlebars provide better control in various riding positions, making long rides more comfortable.
Derailleur Hanger - Uses the SRAM Universal Derailleur Hanger (UDH) Tredz Product ID: 237605
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Boardman C10 Carbon |
| Fork | Boardman C10 Carbon |
| Headset | Acros Integrated, Internal Cable Routing |
| Stem | Boardman SLR, Internal Cable Routing, 80mm(XS) 90mm(S) 100mm(M) 110mm(L) 120mm(XL) -7 degree rise |
| Bars | Boardman Aero Alloy, 380mm(XS,S) 400mm(M, L) 420mm (XL) 8 degree flare |
| Front Brake | Shimano 105 BR7170 Hydraulic Disc, 160mm Rotor |
| Rear Brake | Shimano 105 BR7170 Hydraulic Disc, 14mm Rotor |
| Brake Lever | Shimano 105 R7170 Di2 |
| Front Mech | Shimano 105 FD-R7150 Di2, Double, Braze-on |
| Rear Mech | Shimano 105 RD-R7150 Di2, 12-Speed |
| Shifters | Shimano 105 R7170 Di2, 2x12-Speed |
| Rims | Alex Alloy Road 30mm, Tubleless Ready |
| Front Tyre | Goodyear Eagle, Tubeless Ready, 700 x 30mm |
| Rear Tyre | Goodyear Eagle, Tubeless Ready, 700 x 30mm |
| Seat Post | Boardman Aero Carbon 300mm(XS, S) 350mm(M, L) 400mm(XL) |
| Saddle | Prologo Scratch M5 PAS |
| Chainset | Shimano FCR-7100 50/34 Tooth, 165mm(XS) 170mm(S,M) 172.5mm(L,XL) |
| Bottom Bracket | PF30 86.5mm |
| Chain | Shimano CN-M6100, 12-Speed |
| Cassette | Shimano CS-R7101, 11-34 Tooth, 12-Speed |
| Pedals | Resin with Toe Clips |
| Weight | 8.6 KG |
Boardman SLR 2025 Size Chart
|
Size |
Height (cm) |
Height (inches) |
Inside Leg (cm) |
|
S |
170 – 179 |
5’6” – 5’10” |
74 – 82 |
|
M |
177 – 183 |
5’9” – 6’0” |
78 – 85 |
|
L |
181 – 189 |
5’11” – 6’2” |
82 – 89 |
|
XL |
187 - 195 |
6’1” – 6’5” |
86 - 94 |
What size frame do I need if I am between sizes? - read here
Boardman SLR 2025 Geometry Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 537 | 548 | 563 | 577 | 593 |
| Reach | 371 | 378 | 388 | 394 | 404 |
| Head Tube Length | 126 | 138 | 151 | 166 | 183 |
| Head Tube Angle | 71° | 72° | 72.5° | 72.5° | 72.5° |
| Bottom Bracket Drop | 74 | 70 | 70 | 70 | 70 |
| Chainstay Length | 410 | 410 | 412 | 412 | 412 |
| Top Tube Length (horizontal) | 525 | 540 | 555 | 570 | 585 |
| Seat Tube Length | 465 | 485 | 500 | 525 | 545 |
| Seat Tube Angle | 74° | 73.5° | 73.5° | 73° | 73° |
| Crank Length | 165 | 170 | 170 | 172.5 | 172.5 |
| Stem Length | 80 | 90 | 100 | 110 | 120 |
| Handlebar Width | 380 | 380 | 400 | 400 | 420 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
