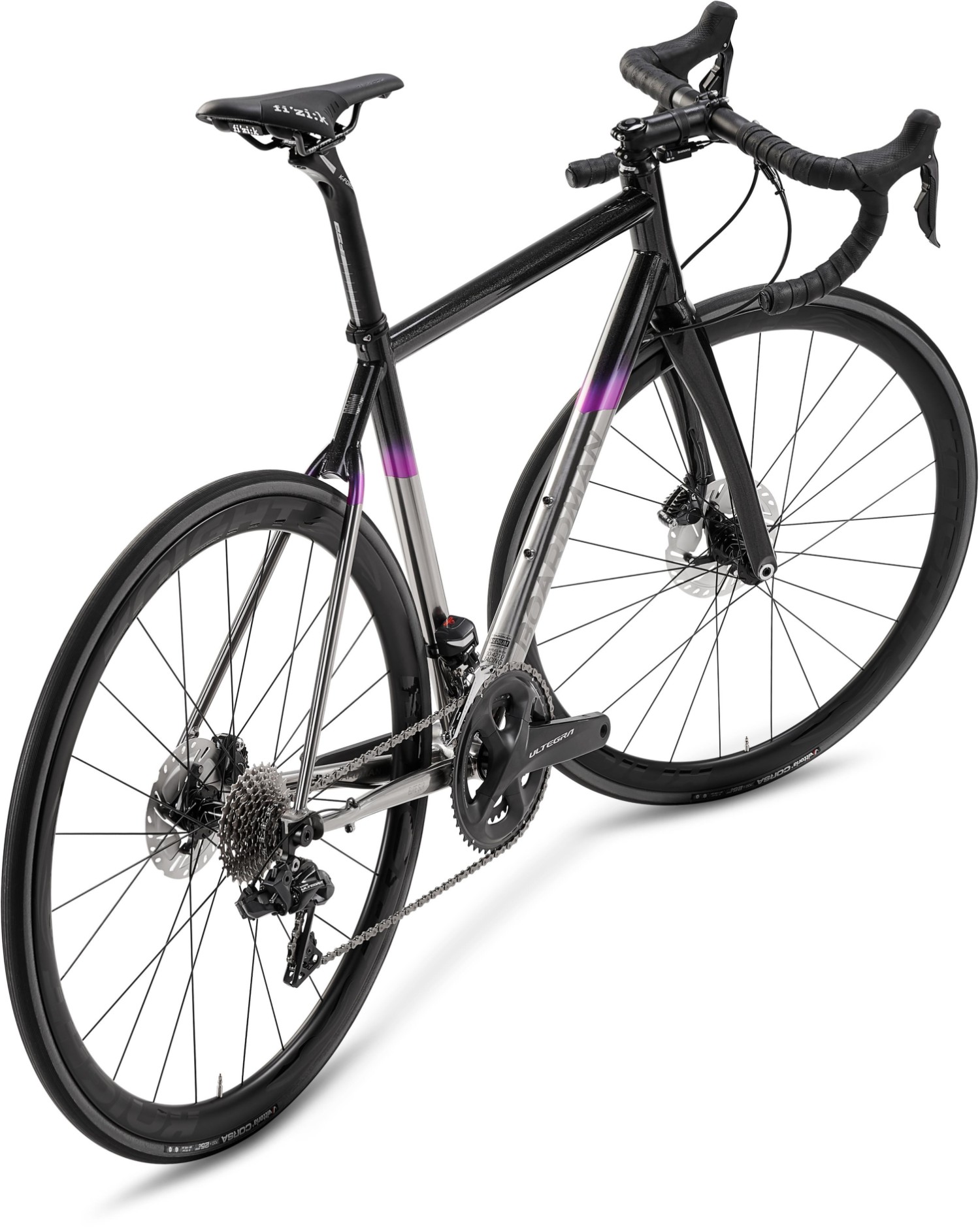

Boardman Boardman SLR Titanium 9.6 2020 - Road Bike

Our restless curiosity in the pursuit of perfection constantly engages us and forces us to question every detail. This principle drove us to ask whether carbon was the right material to use when designing our SLR Endurance Disc series, as it turned out it was – but in going through that research stage it became clear that titanium offered many properties that would make for an excellent endurance bike and from there the new SLR Titanium range began.
From that point onwards our goal was simple – to combine modern technologies and manufacturing craft to create a contemporary, hand made, hand painted titanium frame that can eat up the miles 7 days a week, 365 days a year.
Many of the features developed for the SLR Endurance Disc range have found their way onto our Ti platform and in some cases have even greater measured benefit when combined with our 3AL 2.5V Titanium. The PF30 bottom bracket and bolt thru axels have dramatically reduced power loss through the chainstays as well as sharpening the handling.
The all new SLR Titanium offers incredibly high tensile strength, unparalleled compliance and resistance to both fatigue and corrosion. What more could you ask for in an Endurance road bike?
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Boardman SLR Endurance, Ti10 Titanium, 12mm Thru Axle |
Fork | Boardman SLR Ti Disc - C10 Carbon |
Headset | FSA No.42 |
Stem | Boardman Elite Alloy |
Bars | Boardman Elite Alloy |
Front Brake | Shimano Ultegra R8070 Disc Brakes 160mm Rotors |
Rear Brake | Shimano Ultegra R8070 Disc Brakes 160mm Rotors |
Front Mech | Shimano Ultegra Di2 R8050 |
Rear Mech | Shimano Ultegra Di2 R8050 SS |
Shifters | Shimano Ultegra Di2 R8070 2x11 |
Speed | 22 |
Rims | Knight Composites 35mm Disc - Thru-Axle |
Front Tyre | Vittoria Corsa 25mm |
Rear Tyre | Vittoria Corsa 25mm |
Seat Post | FSA SLK Carbon |
Saddle | Fizik Antares |
Chainset | Shimano Ultegra R8000 50/34t |
Bottom Bracket | FSA PF30 to Shimano BB |
Chain | KMC X11 |
Cassette | Shimano Ultegra R8000 - 11-28 |
Pedals | Resin Platform |
Boardman SLR 2024 Size Chart
Size |
Height (cm) |
Height (inches) |
Inside Leg (cm) |
S |
170 – 179 |
5’6” – 5’10” |
74 – 82 |
M |
177 – 183 |
5’9” – 6’0” |
78 – 85 |
L |
181 – 189 |
5’11” – 6’2” |
82 – 89 |
XL |
187 - 195 |
6’1” – 6’5” |
86 - 94 |
Boardman SLR 2024 Geometry
|
S |
M |
L |
XL |
Stack |
546 |
567 |
588 |
603 |
Reach |
378 |
387 |
390 |
401 |
Seat tube |
485 |
500 |
525 |
545 |
Top tube |
540 |
555 |
570 |
585 |
Head tube |
140 |
160 |
180 |
195 |
Fork offset |
48 |
48 |
48 |
48 |
Head tube angle |
72 |
72.5 |
73 |
73 |
Seat tube angle |
73.5 |
73.5 |
73 |
73 |
Chainstay length |
410 |
410 |
410 |
410 |
BB Drop |
68 |
68 |
68 |
68 |
Crank length |
170 |
170 |
172.5 |
175 |
Stem length |
90 |
100 |
110 |
120 |
Handlebar width |
400 |
400 |
420 |
440 |
What size frame do I need if I am between sizes? - read here
