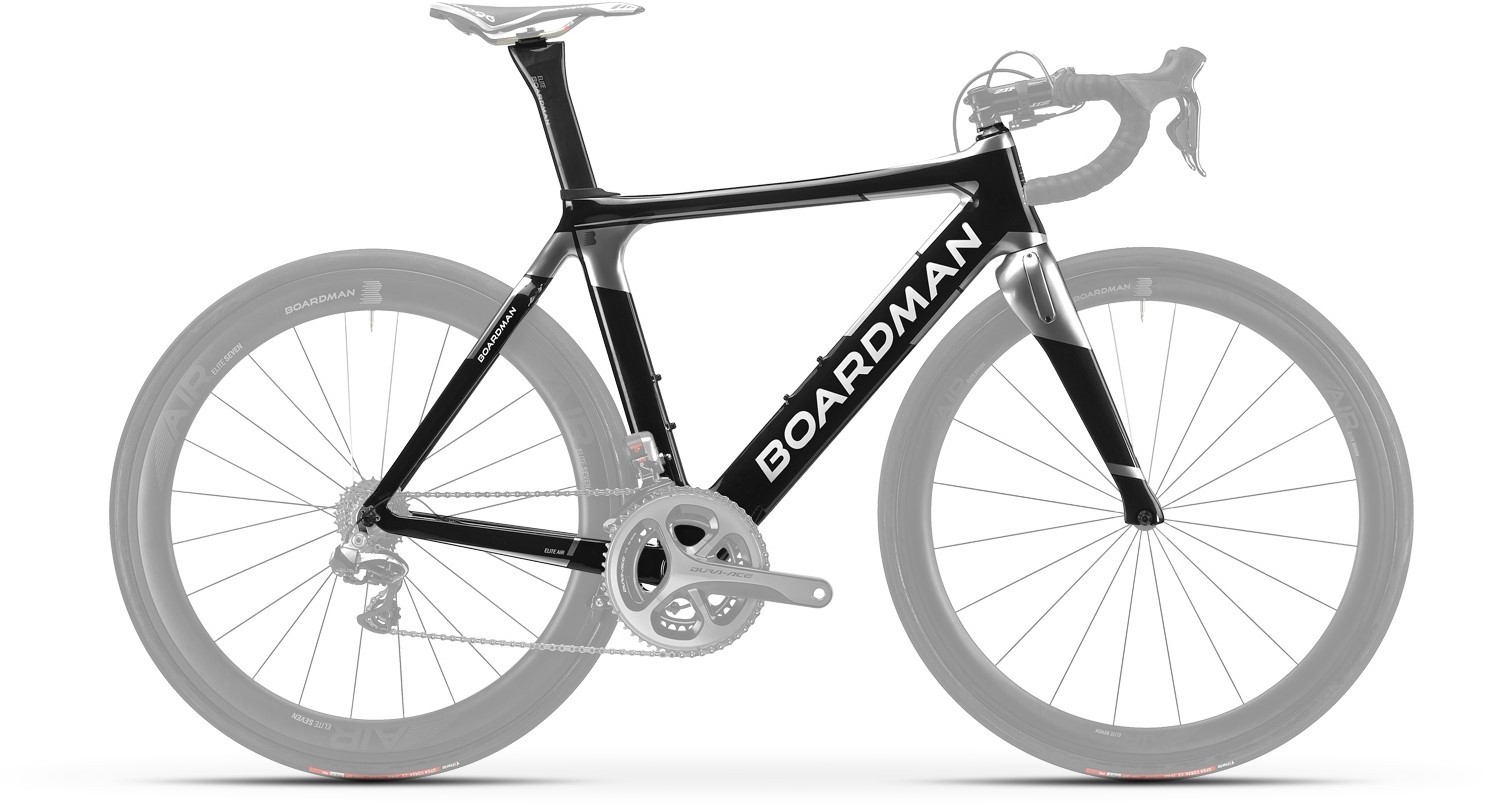

Boardman AIR 9.8 Frameset 2017

• C10 Carbon Frame: Boardman's C10 Carbon uses ultra high modulus fibres in key areas of the frame, boosting stiffness whilst reducing overall frame weight

• Aero Optimised Frame: The tube profiles of the frame and fork have been developed in the wind tunnel to maximise airflow and minimise wind resistance in real world wind conditions

• Profiled Forks and Stays: The inner and outer surfaces of the forks and seat stays are profiled to reduce turbulence created by a rotating wheel

• Tapered Full Carbon Fork: A tapered, full carbon fork with a 1 1/2 inch lower headset bearing increases stiffness and steering precision

• PF30 Bottom Bracket: PF30 gives a wider bottom bracket shell allowing us to profile chain stays for excellent aerodynamics and keep the bottom bracket stiff to provide outstanding power transfer

• 4 Position Seatpost: The saddle clamp can be moved between 4 different positions on the seat post, allowing you to adjust the effective seat tube angle from 73°-75° for road, TT or Triathlon use

• Integrated Front Brake: A powerful mini-V brake is hidden within the fork , significantly reducing turbulence compared to an external brake

• Hidden Rear Brake: The rear brake is located below the BB to maximise clean airflow at the rear of the frame

• Frame: Boardman AIR, C10 Carbon

• Fork: Boardman T9, Carbon, Carbon Tapered Steerer

• Headset: FSA, No.42

• Front Brake: TRP Integrated (TKB131)

• Rear Brake: TRP (T714R)

• Seat Post: Boardman Elite AIR Carbon

• Frame Weight: 1.15kg

Occasionally, without notice, manufacturers change product design and/or specifications.
