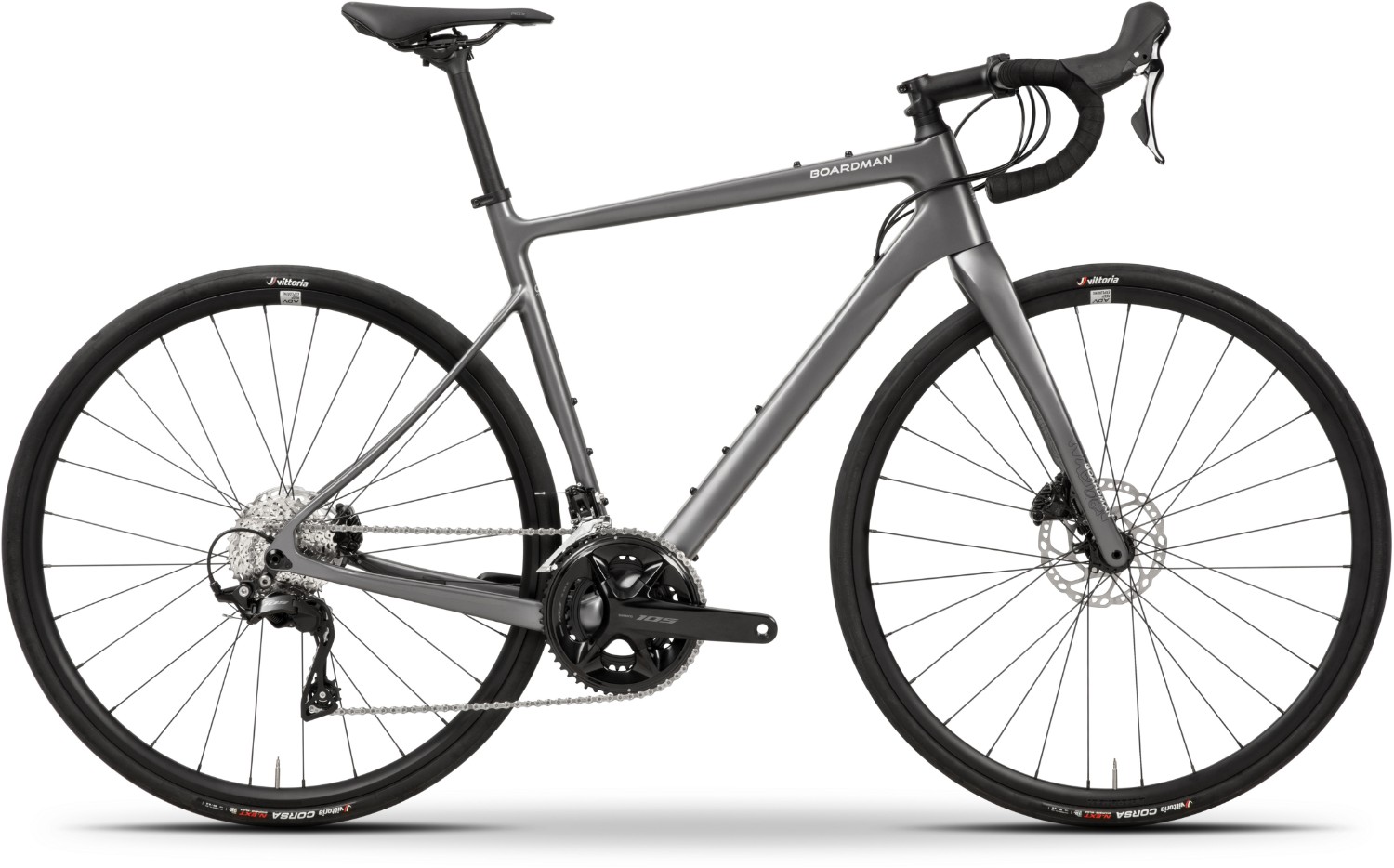

Boardman ADV 9.0 Road 2024 - Road Bike
- Frame: C10 Carbon, 990g Frame & 420g Fork, Thru Axle 142x12mm
- Front Fork: C10 Carbon, Tapered Steerer, Thru Axle 100x12mm
- Drivetrain: Shimano 105 2x12 Gearing
- Brakes: Shimano 105 Hydraulic Disc, 160mm Rotors
- Wheels: Boardman ADV Tubeless Ready, Vittoria Corsa N.EXT 32mm Tyres
- Off-Road Versatility: Gravel Capability with Customizable Features
- Finance: Available with 0% APR options
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Boardman ADV - C10 Carbon 142x12mm Thru Axle |
Fork | C10 Carbon with Tapered Steerer - 100x12mm Thru Axle |
Headset | FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated. |
Stem | Boardman Alloy, 31.8mm clamp |
Bars | Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop |
Front Brake | Shimano 105 R7100 Hydraulic - 160mm Shimano RT-30 Rotor |
Rear Brake | Shimano 105 R7100 Hydraulic - 160mm Shimano RT-30 Rotor |
Front Mech | Shimano 105 R7100 |
Rear Mech | Shimano 105 R7100 12 SPD |
Shifters | Shimano 105 R7100 2x12 |
Speed | 24 |
Rims | Boardman ADV Tubeless Ready |
Front Hub | Formula RX-512 |
Rear Hub | Formula RX-142 |
Front Tyre | Vittoria Corsa N.EXT 700x32 - Tube type |
Rear Tyre | Vittoria Corsa N.EXT 700x32 - Tube type |
Seat Post | Boardman Alloy, 27.2mm x 350mm |
Saddle | Prologo Akero AGX |
Chainset | Shimano 105 R7100 - 50/34 |
Bottom Bracket | FSA BB386 Press Fit with 24mm Shimano adapter |
Chain | Shimano CN-M6100 |
Cassette | Shimano CS-R7100 12S 11-34t |
Pedals | Wellgo alloy with straps, 9/16” |
Weight | 8.8kg |
Boardman ADV 2024 Sizing
Size |
Height (cm) |
Height (inches) |
Inside Leg (cm) |
S |
170 – 179 |
5’7 – 5’10 |
74 - 82 |
M |
177 – 183 |
5’9 – 6’0 |
78 - 85 |
L |
181 – 189 |
5’11 – 6’2 |
82 - 89 |
XL |
187 - 195 |
6’1 – 6’5 |
86 - 94 |
Boardman ADV 2024 Geometry
Size |
S |
M |
L |
XL |
Stack |
550 |
570 |
590 |
605 |
Reach |
368 |
381 |
392 |
404 |
Seat tube |
500 |
525 |
540 |
560 |
Top tube |
535 |
555 |
572 |
590 |
Head tube |
120 |
140 |
160 |
180 |
Head angle |
71 |
71.5 |
71.5 |
71.5 |
Seat angle |
73 |
73 |
73 |
73 |
Chainstay |
425 |
425 |
425 |
425 |
Fork offset |
50 |
50 |
50 |
50 |
BB drop |
73 |
73 |
73 |
73 |
Crank length |
170 |
172.5 |
172.5 |
175 |
Stem length |
80 |
90 |
100 |
110 |
Handlebar width |
400 |
420 |
420 |
440 |
What size frame do I need if I am between sizes? - read here
