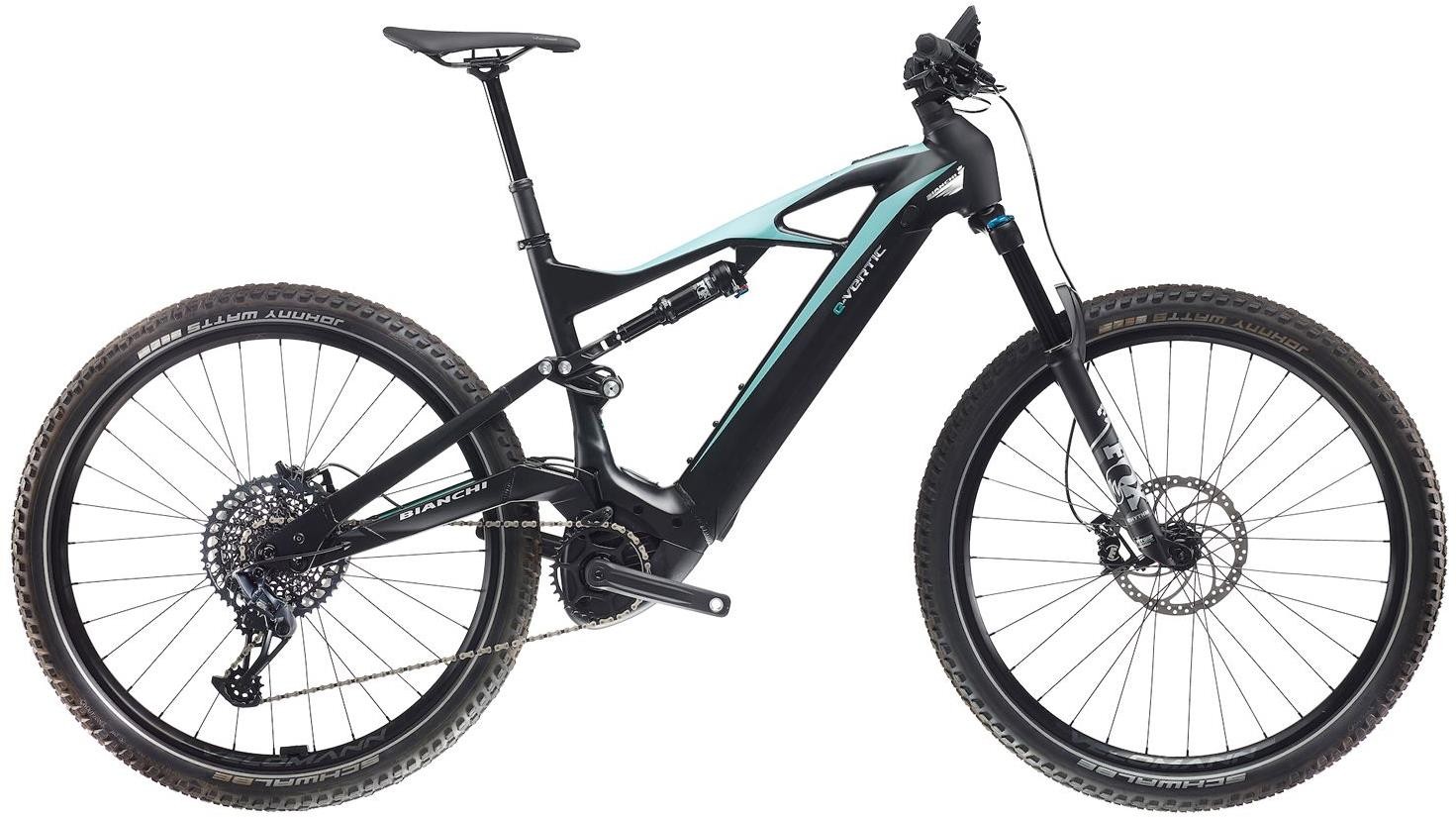

Bianchi E-Vertic FX Type SX 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | e-VERTIC FX/FT-Type ALU (Gravity Casting Technology) |
Fork | RockShox 35 Silver TK 29", 140mm travel |
Rear Shock | RockShox Deluxe Select, 210/55, DebonAir Linear, |
Headset | Acros AZX-575 |
Stem | Velomann Ursa |
Bars | Velomann, width 780mm, diam.35mm, rise 20mm, backsweep 9° |
Front Brake | Shimano BR-MT420 |
Rear Brake | Shimano BR-MT420 |
Rear Mech | SRAM SX EAGLE 12s |
Shifters | SRAM SX EAGLE 12sp single click |
Speed | 12 |
Rims | Velomann X30 Tubeless Ready 29" |
Rear Hub | Shimano, CENTER LOCK DISC(W/O LOCK RING) 8-11-SPEED FOR 12MM THRU TYPE AXLE, 32H OLD:148MM |
Front Tyre | Continental Ruban, 29x2,6”, foldable |
Rear Tyre | Continental Ruban, 29x2,6”, foldable |
Seat Post | Velomann Alpha1 |
Saddle | Terra Aidon X5 |
Chainset | FSA CK-320 E-Bike Crankset |
Bottom Bracket | Included in motor |
Chain | SRAM SX Eagle |
Cassette | SRAM PG-1210 Eagle Cassette, 12sp, 11-50T |
Pedals | Resin Platform |
Battery Size (WH) | Bosch Powertube 750wh integrated battery |
Motor | Bosch Performance Line CX Smart System |
User Interface | Kiox |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bianchi E-Vertic FX Type SX 2023 - Electric Mountain Bike.
This product is no longer available.
