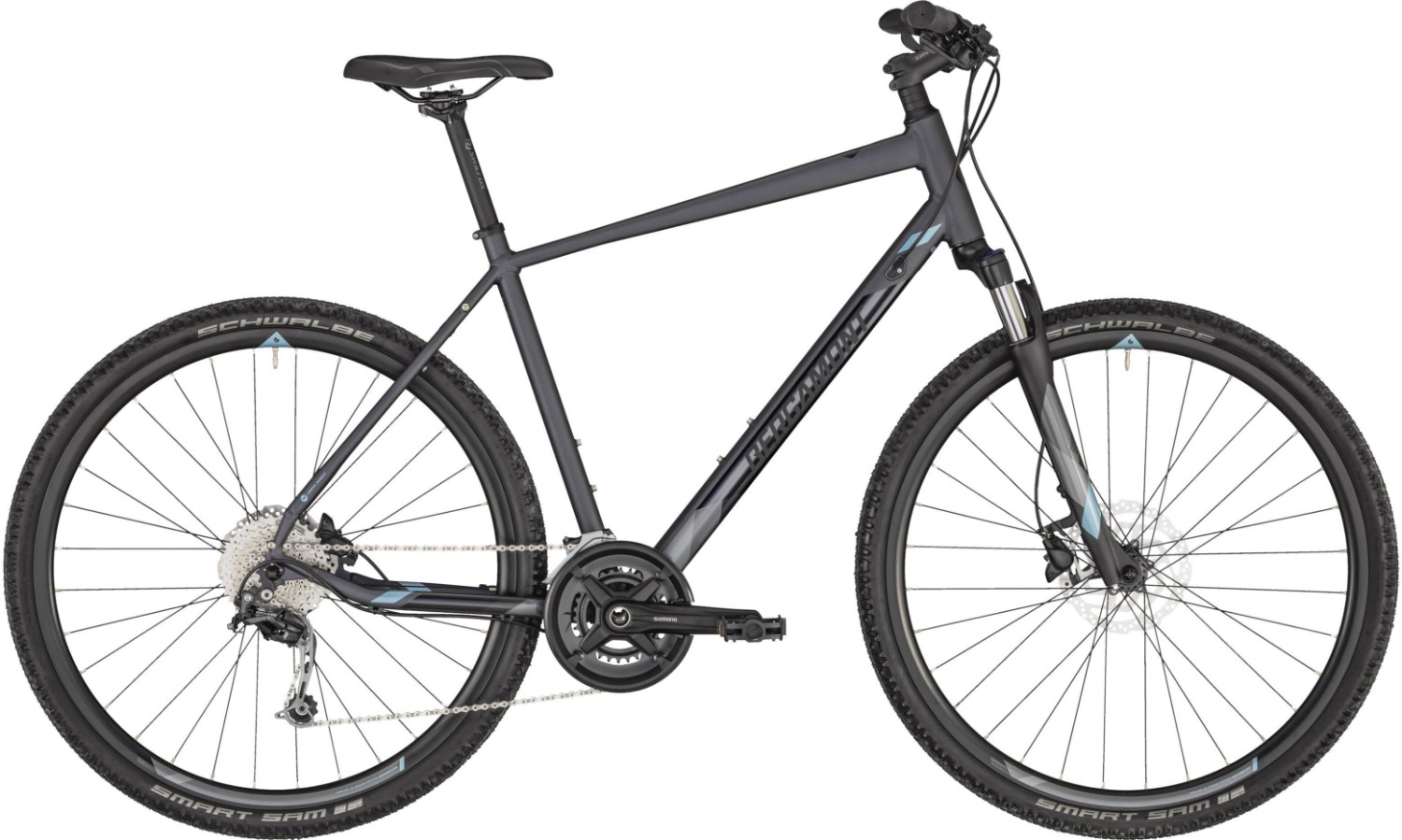

Bergamont Helix 5 2020 - Hybrid Sports Bike
- Versatile, sportive and light all-rounder.
- Technologically optimised frame platform with internal cable routing
- Comfortable Suntour NEX suspension fork with lockout function
- New Shimano 2x9 shifting technology
- Powerful Shimano hydraulic disc brakes
- Mounting options for fenders and carrier
| Frame | 28", lite AL-6061 tubing |
| Fork | Suntour NEX DS HLO, 63 mm, preload adjust |
| Rear Derailleur | Shimano Deore, RD-M592, Shadow |
| Front Derailleur | Shimano FD-T3000 |
| Shifter | Shimano SL-M2010, 2x9-speed, rapidfire plus-shifter |
| Cassette | Shimano CS-HG201-9, 11-36t |
| Chain | KMC X9 |
| Crankset | Shimano FC-MT210, 46/30t, with chaincover |
| Bottom Bracket | Shimano Hollowtech II, BSA |
| Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm |
| Brake Levers | Shimano BL-MT200, hydraulic disc brake |
| Rims | BGM Pro X15, disc, 32h |
| Front Hub | Shimano, centerlock, disc, quick release |
| Rear Hub | Shimano, centerlock, disc, quick release |
| Spokes | steel, black |
| Tires | Schwalbe Smart Sam, Addix, 44-622 |
| Tubes | Schwalbe SV17A Light |
| Headset | BGM Comp, A-Headset, semi-integrated, 1 1/8" |
| Handlebar | Syncros, riserbar, backsweep: 15° |
| Stem | Syncros, clamp diameter: 31.8 mm |
| Grip | BGM Comfort, Ergo, double density, clamp version |
| Saddle | Selle Royal Cross, gent |
| Seatpost | Syncros |
| Pedals | MTB 872 KS |
| Approx. weight | 14,4 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Typical Hybrid Bike Sizing Chart
Frame Size
XXS - 13"
4'8"
5'1"
XS - 15"
5'1"
5'4"
S - 16"
5'4"
5'7"
M - 18"
5'7"
5'10"
L - 19"
5'10"
6'0"
XL - 20"
6'0"
6'3"
XXL - 21"
6'3"
6'5"
XXXL - 22"
6'5"
6'9"
Hybrid Bike Sizing Chart
|
Height |
Bike size (cm) |
bike size (Inch) |
|
4’8” – 5’1” 143 – 155 cm |
44 – XXS |
13” – XXS |
|
5’1” – 5’4” 155 – 163 cm |
48 – XS |
15” – XS |
|
5’4” – 5’7” 163 – 170 cm |
51 – S |
16” – S |
|
5’7” – 5’10” 170 – 178 cm |
54 – M |
18” – M |
|
5’10” – 6’0” 178 – 183 cm |
56 – L |
19” – L |
|
6’0” – 6’3” 183 – 191 cm |
58 – XL |
20” – XL |
|
6’3” – 6’5” 191 – 196 cm |
60 – XXL |
21” – XXL |
|
6’5” – 6’9” 196 – 205 cm |
62 - XXXL |
22” – XXXL |
