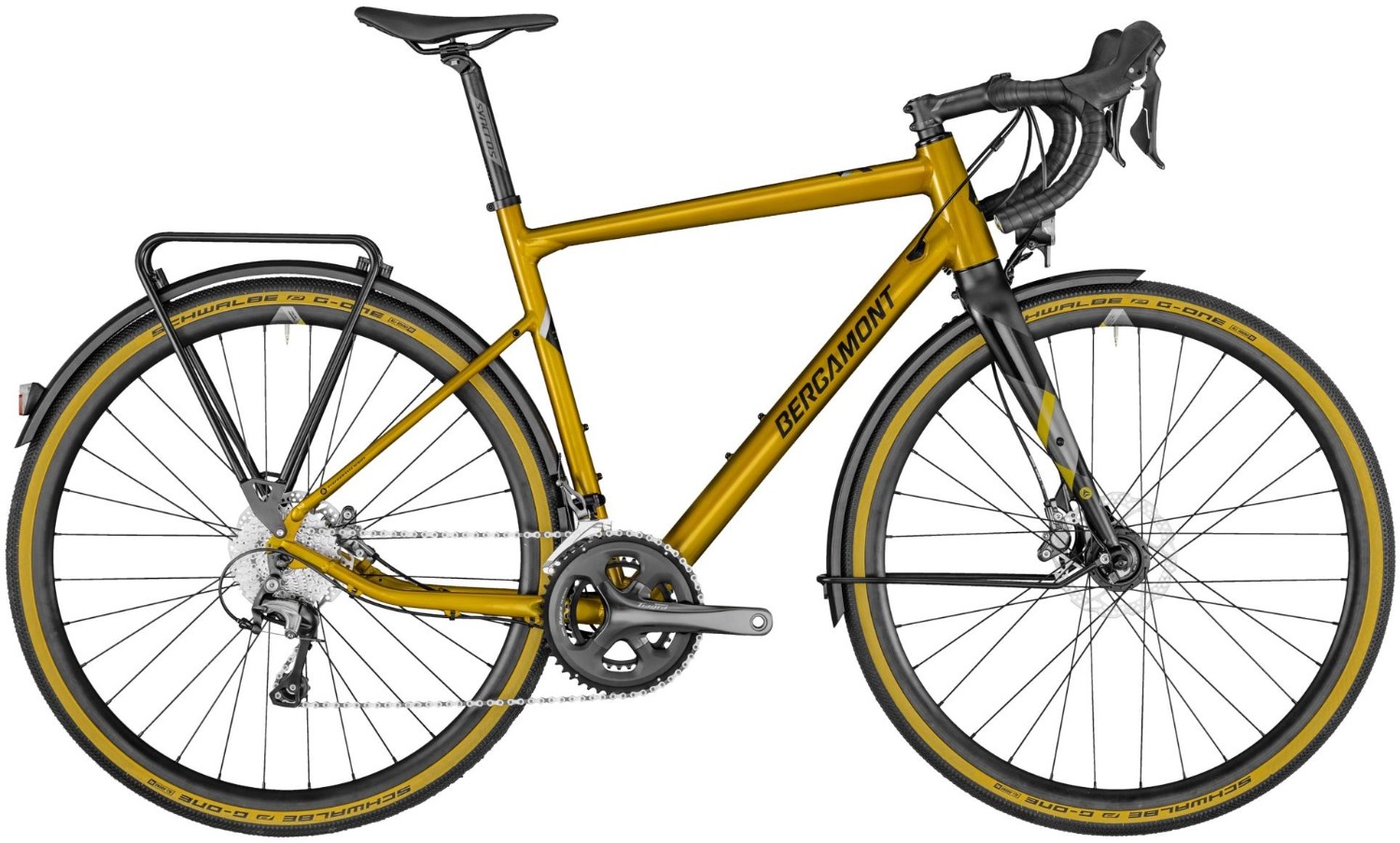

Bergamont Grandurance RD 5 2021 - Gravel Bike

Reliable Commuter, Tourer and Explorer: the Grandurance RD is made for the extraordinary. Extremely practical and flexible, with Racktime Snap-it carrier system.

Key Features:

Attractive Shimano Tiagra components
Shimano BR-RS785 hydraulic disc brake
35 mm Schwalbe G-One all-round tires with low rolling resistance tread and strong grip
Form fitting carrier and fender combination
LED lighting system with standlight function for added safety

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	28", ultra lite AL-6061 tubing
Fork	Grandurance Alloy, quick release, fender mount
Headset	BGM F13-C, A-Headset, semi-integrated, tapered
Stem	Syncros RR2.5, +/- 6°
Bars	Syncros Creston 2.0, flare: 10°
Front Brake	Shimano BR-RS785, hydraulic disc brake, SM-RT54 rotor: 160mm
Rear Brake	Shimano BR-RS785, hydraulic disc brake, SM-RT54 rotor: 160mm
Brake Lever	Shimano Tiagra, ST-4720
Front Mech	Shimano Tiagra, FD-4700
Rear Mech	Shimano Tiagra, RD-4700, long cage
Shifters	Shimano Tiagra, ST-4720, 2x10-speed, road STI-shifter
Speed	20
Rims	Shining DB-T260, disc
Front Hub	Shimano dynamo hub, DH-3D72, centerlock, disc, quick release
Rear Hub	BGM Pro, centerlock, disc, quick release
Spokes	Stainless, Black
Front Tyre	Schwalbe G-One Allround, Raceguard, 35-622
Rear Tyre	Schwalbe G-One Allround, Raceguard, 35-622
Seat Post	Syncros 2.5
Saddle	Syncros Tofino 2.5
Chainset	Shimano Tiagra, FC-4700, 50/34t
Bottom Bracket	Shimano Hollowtech II, BSA
Chain	KMC X10
Cassette	Shimano CS-HG500, 11-34T
Pedals	Resin Platform
Weight	12.6kg

Bergamont Grandurance Sizing

Size	Height cm	Height inch
49	160 - 165	5'3 - 5'5
53	164 - 172	5'5 - 5'8
55	170 -182	5'7 - 6'0
57	182 - 193	6'0 - 6'4
61	190 - 195+	6'3 - 6'5+

Bergamont Grandurance RD Geometry

Size	49	53	55	57	61
BB CENTER TO TOP OF SEATTUBE	475 MM	510 MM	535 MM	555 MM	585 MM
TOP TUBE PARALLEL	515 MM	530 MM	540 MM	555 MM	575 MM
TOP TUBE HORIZONTAL	530 MM	545 MM	560 MM	575 MM	590 MM
CHAINSTAY	425 MM	425 MM	425 MM	425 MM	425 MM
HEADTUBE LENGTH	115 MM	135 MM	160 MM	180 MM	200 MM
HEAD ANGLE	70,0 °	70,0 °	71,0 °	71,0 °	71,0 °
SEAT ANGLE	75,0 °	75,0 °	74,0 °	74,0 °	74,0 °
BB OFFSET	-70 MM	-70 MM	-70 MM	-70 MM	-70 MM
WHEELBASE	1.030 MM	1.045 MM	1.042 MM	1.060 MM	1.075 MM
STANDOVER HEIGHT	740 MM	768 MM	795 MM	813 MM	838 MM
STACK	541 MM	560 MM	588 MM	607 MM	625 MM
REACH	385 MM	395 MM	392 MM	401 MM	410 MM
FORK LENGTH	405 MM	405 MM	405 MM	405 MM	405 MM
FORK RAKE	50 MM	50 MM	50 MM	50 MM	50 MM

Bergamont Grandurance Geometry

Size	49	53	55	57	61
BB CENTER TO TOP OF SEATTUBE	475 MM	510 MM	535 MM	555 MM	585 MM
TOP TUBE PARALLEL	499 MM	515 MM	539 MM	554 MM	574 MM
TOP TUBE HORIZONTAL	515 MM	530 MM	555 MM	570 MM	590 MM
CHAINSTAY	425 MM	425 MM	425 MM	425 MM	425 MM
HEADTUBE LENGTH	115 MM	135 MM	160 MM	180 MM	200 MM
HEAD ANGLE	71,0 °	71,5 °	71,5 °	72,0 °	72,5 °
SEAT ANGLE	74,5 °	74,0 °	73,5 °	73,5 °	73,0 °
BB OFFSET	-72 MM	-70 MM	-70 MM	-70 MM	-70 MM
WHEELBASE	998 MM	1.005 MM	1.025 MM	1.036 MM	1.045 MM
STANDOVER HEIGHT	746 MM	777 MM	797 MM	820 MM	844 MM
STACK	539 MM	557 MM	581 MM	602 MM	623 MM
REACH	365 MM	370 MM	383 MM	392 MM	400 MM
FORK LENGTH	396 MM	396 MM	396 MM	396 MM	396 MM
FORK RAKE	50 MM	50 MM	50 MM	50 MM	50 MM

What size frame do I need if I am between sizes? - read here
