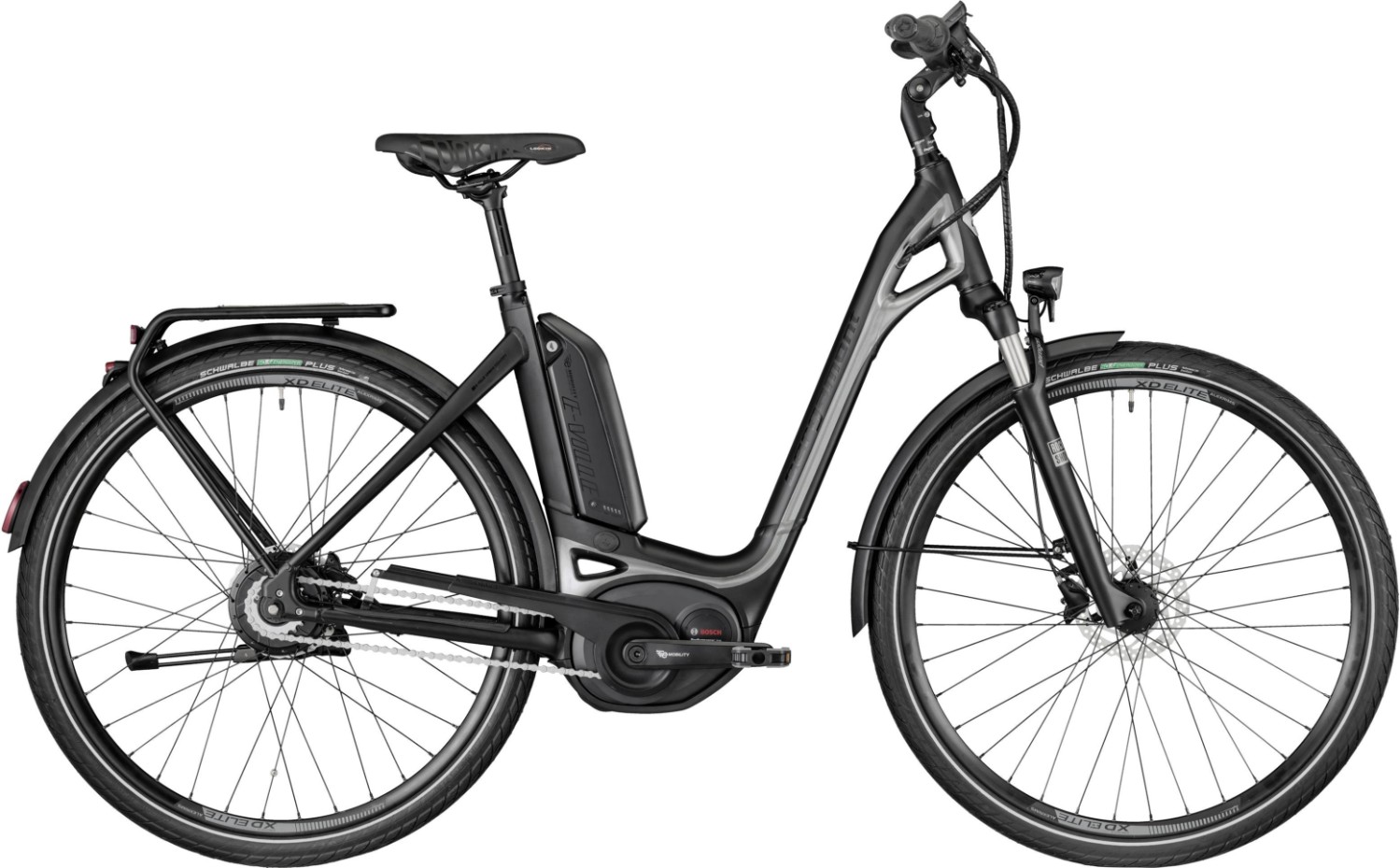

Bergamont E-Ville N330 2018 - Electric Hybrid Bike
The E-Ville delivers perfect riding pleasure for all audiences – never has a unisex E-Bike been this sexy. The defining feature of this iconic E-Bike is the Box-Flange Concept, a large one-piece frame part made from cast aluminium that not only integrates the battery and drive unit in the best possible way, it is also key to the E-Ville's outstanding stiffness and overall riding capabilities. Something that has always been problematic to achieve in a step-through frame design. The sleek and modern look is underlined by the self-supporting fenders and carrier system which makes it stands out from the masses.
Finite Element Method
To simulate and analyze individual frame components even before the first samples are fabricated, the Bergamont engineers use the latest FEM computer software
Clever Enginge Cover
We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.
Box Flange Concept
The Box Flange simultaneously eliminates several constructional weaknesses of low-entry frames and combines battery integration on the seat tube with increased frame stiffness.
E.Drive System:
- Motor: Bosch Drive Unit Performance Line, 250W, 36V, max. 25 km/h
- Display: Bosch Intuvia
- Battery: Bosch 36 V Li Ion, 500 Wh, frame-type
- Range: 500Wh: 40-215km, depending on assistance mode and riding conditions
- Assistance Modes: Eco (+50%), Tour (+120%), Sport (+190%), Turbo (+275%), Walk Assist (-5km/h)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28" E-bike, AL-6061 super lite butted tubing, T4/T6 heat treated, box flange concept, hydro fluid forming, 3D-dropout, E-bike-comfort geometry |
| Fork | Rock Shox Paragon Silver, 1 1/8", 63mm, lockout |
| Headset | FSA, ZS-4, A-Headset, semi integrated, 1 1/8" |
| Stem | BGM E-Bike, adjustable stem |
| Bars | BGM E-Ville, riser bar |
| Front Brake | Shimano BR-M315, hydraulic disc brake, SM-RT30 rotor: 180mm |
| Rear Brake | Shimano BR-M315, hydraulic disc brake, SM-RT30 rotor: 160mm |
| Brake Lever | Shimano BL-M315, hydraulic disc brake |
| Shifters | NuVinci N330 C3 Controller, continuously adjustable |
| Rims | Alex XD Lite, disc, eyelets |
| Front Hub | Shimano HB-M475, 6-bolt, disc, quick release |
| Rear Hub | NuVinci Nfinity 330, 6-bolt, disc |
| Spokes | Sapim Leader, stainless, silver |
| Front Tyre | Schwalbe Energizer Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Plus, reflective stripe, 47-622 |
| Seat Post | BGM E-Ville, 2-bolt design |
| Chainset | BGM Pro, with alloy cover, 18t |
| Bottom Bracket | Bosch, Isis |
| Chain | KMC Z610HXRB, antirust, heavy duty |
| Cassette | Nuvinci, 20t |
| Pedals | Wellgo C128 |
| Weight | 26.80kg |
