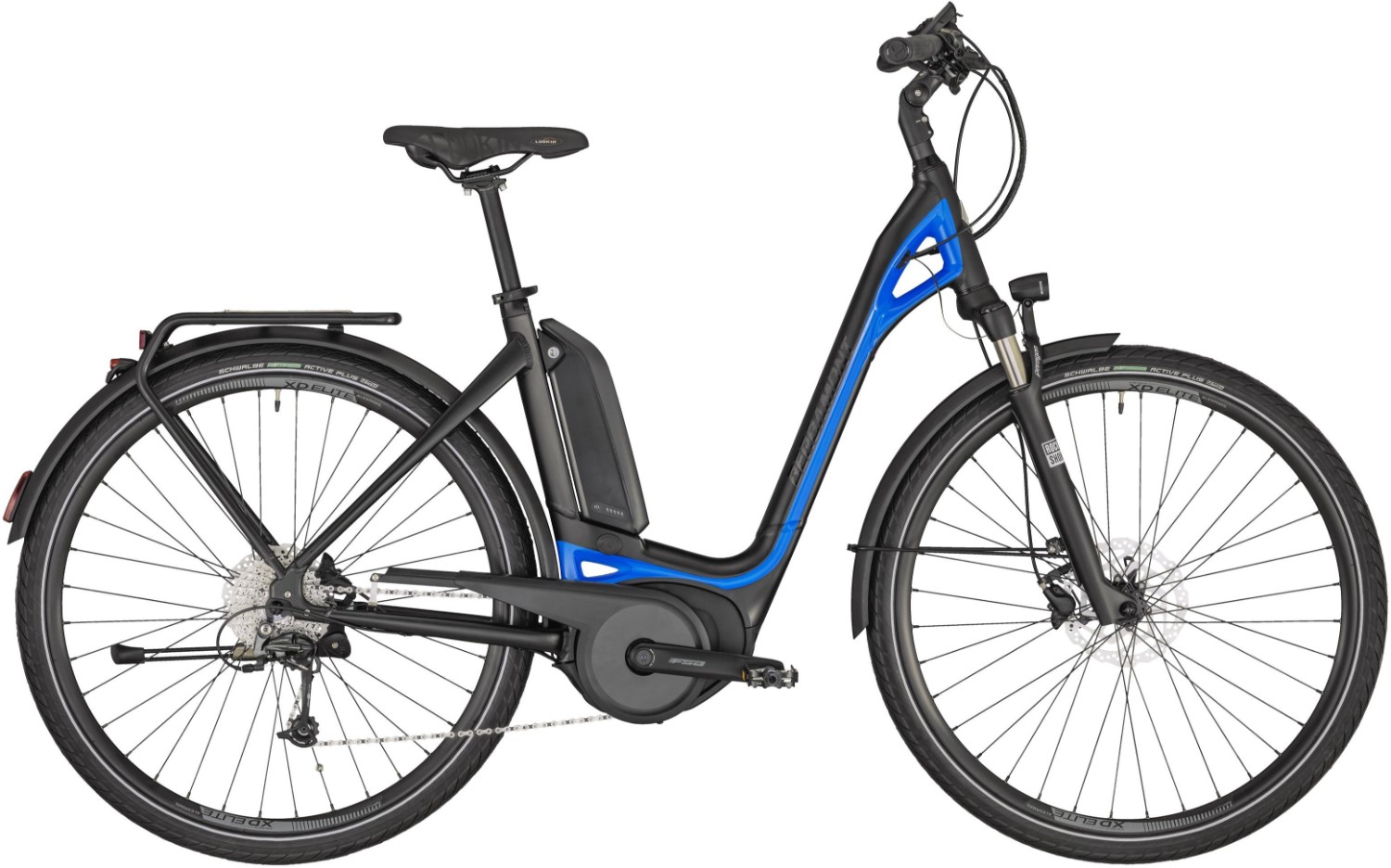

Bergamont E-Ville Edition 2020 - Electric Hybrid Bike
- Timeless and iconic low step-through unisex frame with outstanding riding characteristics.
- Holistic construction principle with a maximum integration level of all components
- Power meets efficiency: Bosch Active Line Plus drive unit with 500 Wh battery
- Reliable Shimano Deore components
- High-grade RockShox Paragon Silver suspension fork
- E-bike specific Schwalbe Energizer Active Plus tyres with maximum durability, low rolling resistance and perfect grip
| Frame | 28", super lite AL-6061 tubing, PowerPack battery |
| Fork | RockShox Paragon Silver, 63 mm, lockout |
| Rear Derailleur | Shimano Deore, RD-M591 |
| Shifter | Shimano SL-M4000, 1x9-speed, rapidfire plus-shifter |
| Cassette | Shimano CS-HG400, 11-34t |
| Chain | KMC e9S |
| Crankset | FSA CK-200, 38t |
| Bottom Bracket | Bosch, Isis |
| Motor | Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h |
| Battery | Bosch 36 V Li Ion, 500 Wh, PowerPack |
| Display | Bosch Purion |
| Assistance Modes | Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h) |
| Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm |
| Brake Levers | Shimano BL-MT200, hydraulic disc brake |
| Rims | Alex XD Elite, disc, eyelets |
| Front Hub | Shimano HB-M4050, centerlock, disc, quick release |
| Rear Hub | Shimano FH-M4050, centerlock, disc, quick release |
| Spokes | Sapim Leader |
| Tires | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Tubes | Schwalbe SV17A Light |
| Headset | FSA, ZS-4, A-Headset, semi-integrated, 1 1/8" |
| Handlebar | BGM Pro, riserbar, backsweep: 15°, rise: 5 mm |
| Stem | BGM E-Bike, adjustable |
| Grip | BGM Comfort, Ergo, double density, clamp version |
| Saddle | Selle Royal Lookin Basic Athletic |
| Seatpost | BGM Pro |
| Fender | BGM special alloy, with stainless stays |
| Carrier | BGM E-Ville |
| Chaincasecover | SKS Chainbow |
| Front light | B&M Myc, 50 Lux, LED, E-Bike Version |
| Rear light | B&M Bergamont Special LED, integrated in fender |
| Stand | Atran |
| Pedals | Trekking alloy |
| Approx. weight | 25,3 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28", super lite AL-6061 tubing, PowerPack battery |
| Fork | RockShox Paragon Silver, 63 mm, lockout |
| Headset | FSA, ZS-4, A-Headset, semi-integrated, 1 1/8" |
| Stem | BGM E-Bike, adjustable |
| Bars | BGM Pro, riserbar, backsweep: 15°, rise: 5 mm |
| Front Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160mm |
| Brake Lever | Shimano BL-MT200, hydraulic disc brake |
| Rear Mech | Shimano Deore, RD-M591 |
| Shifters | Shimano SL-M4000, 1x9-speed, rapidfire plus-shifter |
| Speed | 9 |
| Rims | Alex XD Elite, disc, eyelets |
| Front Hub | Shimano HB-M4050, centerlock, disc, quick release |
| Rear Hub | Shimano FH-M4050, centerlock, disc, quick release |
| Spokes | Sapim Leader |
| Front Tyre | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Seat Post | BGM Pro |
| Saddle | Selle Royal Lookin Basic Athletic |
| Chainset | FSA CK-200, 38t |
| Bottom Bracket | Bosch, Isis |
| Chain | KMC e9S |
| Cassette | Shimano CS-HG400, 11-34t |
| Pedals | Trekking alloy |
| Battery Size (WH) | 500wh |
| Motor | Bosch |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
