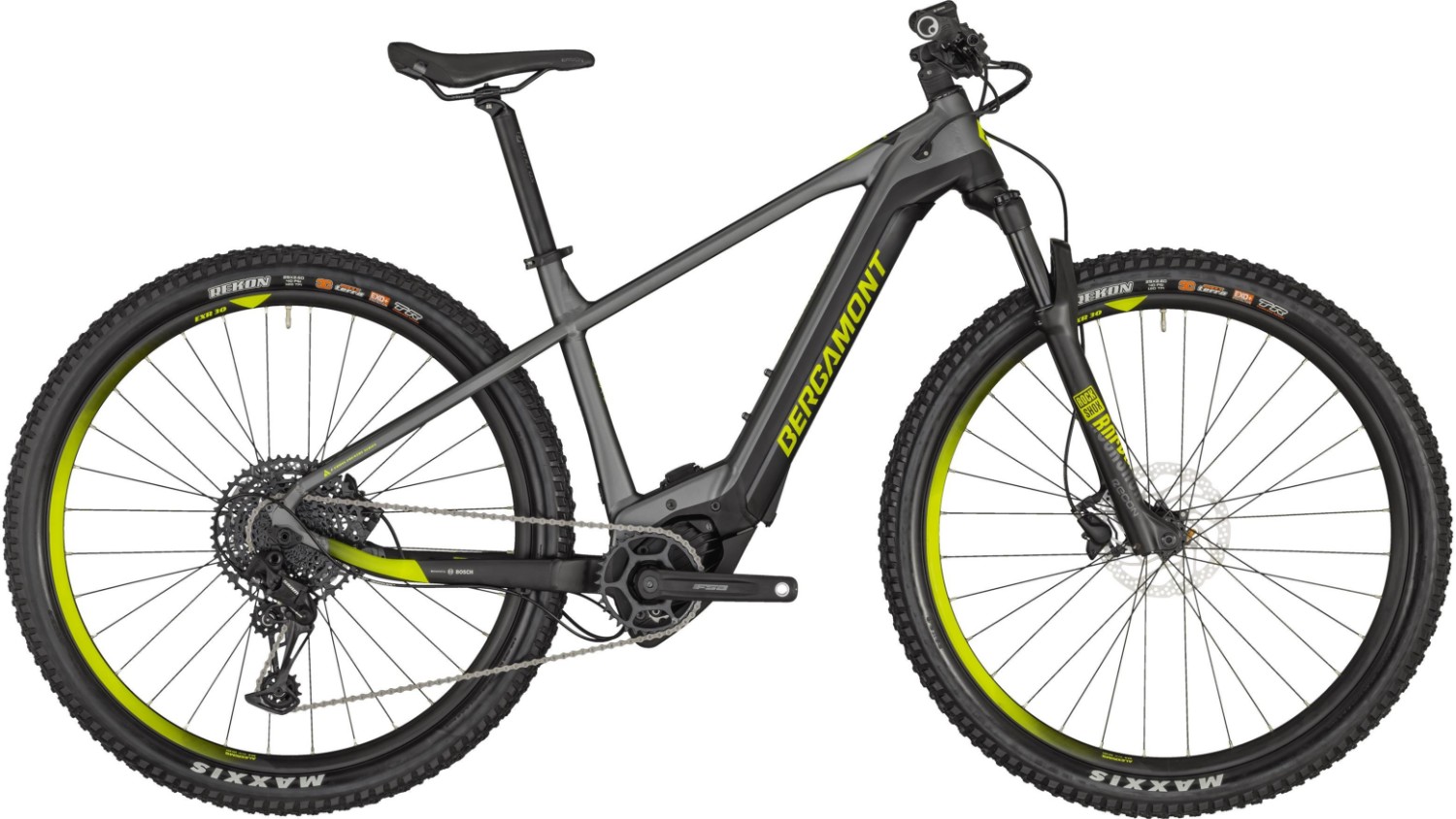

Bergamont E-Revox Expert 600 29" 2020 - Electric Mountain Bike
- Innovative 29" Hardtail with the latest generation Bosch drive unit, as well as a perfectly integrated Bosch 625 Wh PowerTube battery.
- Latest generation Bosch Performance CX drive unit with a huge 75 Nm of torque
- Maximum power and range with a fully integrated Bosch 625 Wh PowerTube battery
- Reliable SRAM SX Eagle 1x12 drive train
- Shimano hydraulic braking system with reliable braking performance
- Ergon SM10 saddle for maximum comfort
| Frame | 29", ultra lite AL-6061 tubing, PowerTube battery |
| Fork | RockShox Recon RL, 100 mm, rebound adjust, 15x110 mm axle |
| Rear Derailleur | Sram SX Eagle |
| Shifter | Sram SX Eagle, single click, 1x12-speed, trigger-shifter |
| Cassette | Sram PG-1210 Eagle, 11-50t |
| Chain | Sram SX Eagle |
| Crankset | FSA CK-320, Sram X-Sync 2, 34t, 170 mm |
| Bottom Bracket | Bosch, Isis |
| Motor | Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h |
| Battery | Bosch 36 V Li Ion, 625 Wh, PowerTube |
| Display | Bosch Purion |
| Assistance Modes | Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) |
| Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180 mm |
| Brake Levers | Shimano BL-MT201, hydraulic disc brake |
| Rims | Alex EXR 30, disc, eyelets, width: 30 mm |
| Front Hub | Shimano HB-MT400, centerlock, disc, 15x110 mm axle |
| Rear Hub | Shimano FH-MT400, centerlock, disc, 12x148 mm axle |
| Spokes | Sapim Leader |
| Tires | Maxxis Rekon, 3C-EXO+, folding, Tubeless ready, 120 TPI, 29x2.60" |
| Tubes | Schwalbe SV19FB Light |
| Headset | Prestine PT F13X, A-Headset, semi-integrated, tapered |
| Handlebar | Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S |
| Stem | Syncros FL2.0, +/-6° |
| Grip | Ergon GA20 |
| Saddle | Ergon SM10 E-Mountain |
| Seatpost | Syncros M3.0 |
| Approx. weight | 22,5 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
