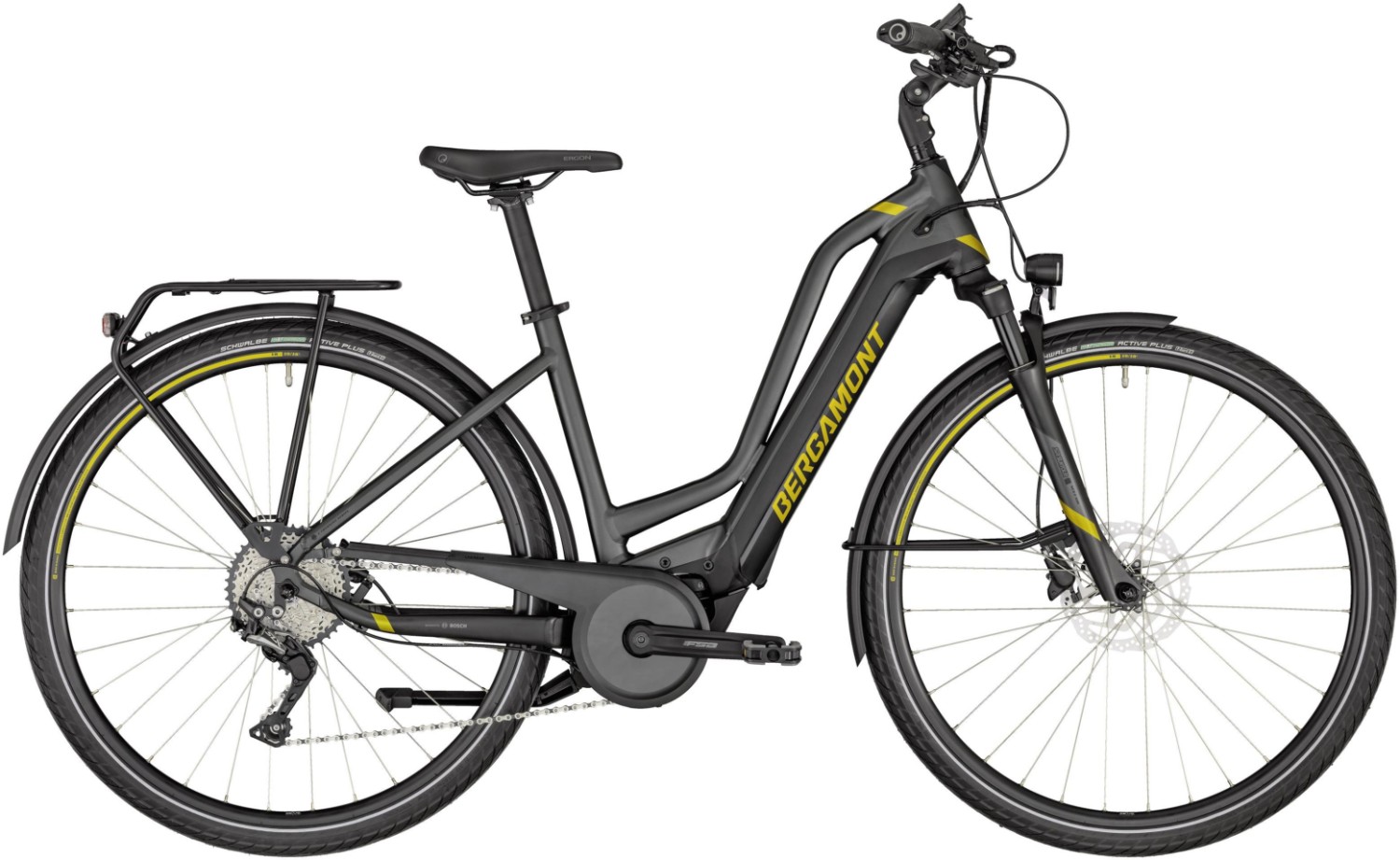

Bergamont E-Horizon Expert 600 Amsterdam 2020 - Electric Road Bike
- Modern symbiosis of a sportive e-trekking bike and a comfortable low step-through frame, based on the innovative Universal Chassis Concept.
- Sportive and powerful 4th generation Bosch CX drive unit with 75 Nm torque
- Extended range with the new 625 Wh Bosch PowerTube battery
- Proven Shimano SLX 1x11 shifting technology
- Comfortable, reliable Suntour NCX-D suspension fork
- High-end, ergonomic contact points: Ergon ST10 saddle, Ergon GP10 lock-on grips
| Frame | 28", ultra lite AL-6061 tubing, PowerTube battery |
| Fork | Suntour NCX E Air, 63 mm, lockout |
| Rear Derailleur | Shimano SLX, RD-M7000, Shadow Plus |
| Shifter | Shimano SLX, SL-M7000, 1x11-speed, rapidfire plus-shifter |
| Cassette | Shimano SLX, CS-M7000, 11-42t |
| Chain | KMC e11S |
| Crankset | FSA CK-320, 38t |
| Bottom Bracket | Bosch, Isis |
| Motor | Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h |
| Battery | Bosch 36 V Li Ion, 625 Wh, PowerTube |
| Display | Bosch Intuvia |
| Assistance Modes | Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) |
| Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm |
| Brake Levers | Shimano BL-MT200, hydraulic disc brake |
| Rims | Mach 1 ER20, disc, eyelets |
| Front Hub | Shimano HB-M4050, centerlock, disc, quick release |
| Rear Hub | Shimano FH-M4050, centerlock, disc, quick release |
| Spokes | Sapim Leader |
| Tires | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Tubes | Schwalbe AV17A Light |
| Headset | FSA NO.57SC-1, A-Headset, semi-integrated, tapered |
| Handlebar | BGM Pro, riserbar, backsweep: 15°, rise: 5 mm |
| Stem | BGM Pro, adjustable, 17°-25° |
| Grip | Ergon GP10 |
| Saddle | Ergon ST10 |
| Seatpost | BGM Pro |
| Fender | Racktime Wingee |
| Carrier | BGM / Racktime |
| Chaincasecover | SKS Chainbow |
| Front light | B&M IQ-XS, 70 Lux, LED, E-Bike Version |
| Rear light | B&M Toplight 2 C, LED |
| Stand | Syncros |
| Pedals | Trekking alloy |
| Approx. weight | 24,5 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
