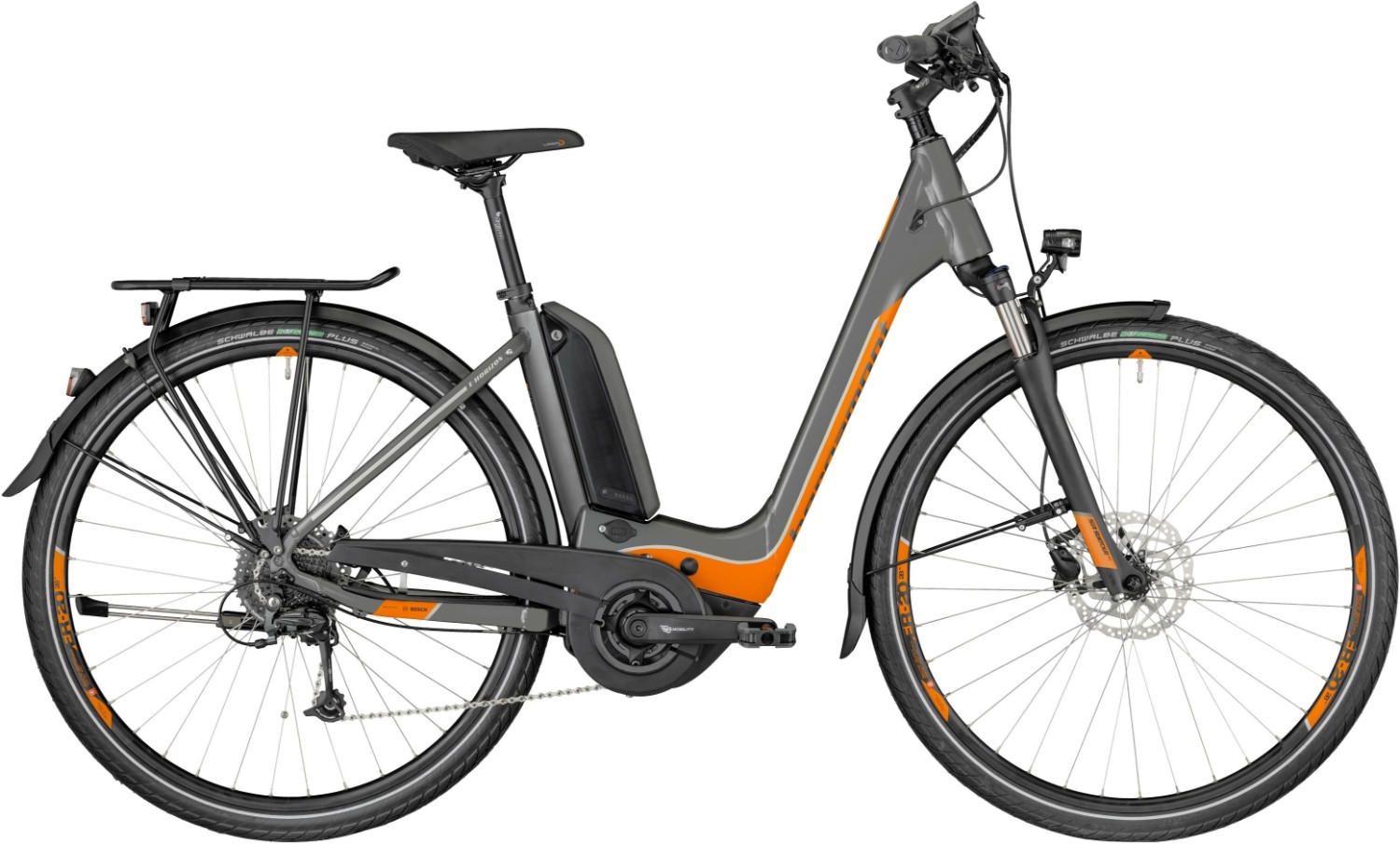

Bergamont E-Horizon 6.0 Wave 2018 - Electric Hybrid Bike
Integration for all! The UNIVERSAL CHASSIS CONCEPT permits the tried-and-tested Bosch PowerPack technology to be integrated to its full potential – without making any compromises. The frame cover, which has been developed in-house, follows the clear-cut lines of the frame design, protects the battery from moisture and dust and allows the PowerPack to be installed and removed with ease. Alongside the Power Tube versions, the powerful Bosch engines deliver pure riding enjoyment and safe handling when combined with the optimised geometry and the disc brake system which is installed as standard.
Universal Chassis Concept
We always made an extra effort when creating frame geometries and features to achieve superior riding capabilities. Using this knowledge we created a universal e-bike frame platform that perfectly integrates modern batteries and drive units.
Clever Enginge Cover
We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.
Finite Element Method
To simulate and analyze individual frame components even before the first samples are fabricated, the Bergamont engineers use the latest FEM computer software.
E.Drive System:
- Motor: Bosch Drive Unit Active Line, for freewheel, 250W, 36V, max. 25 km/h
- Display: Bosch Intuvia
- Battery: Bosch 36 V Li Ion, 400 Wh, frame-type
- Range: 400Wh: 45-175km, depending on assistance mode and riding conditions
- Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5km/h)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28" E-bike, AL-6061 ultra lite butted tubing, T4/T6 heat treated, hydro fluid forming, double butted, 3D-dropout, tapered headtube, internal cable routing, Internal Battery, E-bike-comfort geometry |
| Fork | Suntour NEX LO DS, 1 1/8", 63mm |
| Headset | FSA NO.57SC-1, A-Headset, semi integrated, tapered |
| Stem | BGM Pro, 17°-25° |
| Bars | BGM Pro, riser bar |
| Front Brake | Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 180mm |
| Rear Brake | Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 160mm |
| Brake Lever | Shimano BL-M315, hydraulic disc brake |
| Rear Mech | Shimano Deore, RD-M591 |
| Shifters | Shimano Deore, SL-M590, rapidfire plus |
| Speed | 9 |
| Rims | Mach-1 ER-20, disc, eyelets |
| Front Hub | Shimano HB-M3050, center lock, disc, quick release |
| Rear Hub | Shimano FH-M3050, center lock, disc, quick release |
| Spokes | Sapim Leader, stainless, silver |
| Front Tyre | Schwalbe Energizer Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Plus, reflective stripe, 47-622 |
| Seat Post | BGM Pro, 2-bolt design |
| Chainset | BGM Pro, 36t |
| Bottom Bracket | Bosch, Isis |
| Chain | KMC X9e |
| Cassette | SHIMANO CS-HG200-9, 11-36T |
| Pedals | Wellgo C128 |
| Weight | 24.20kg |
