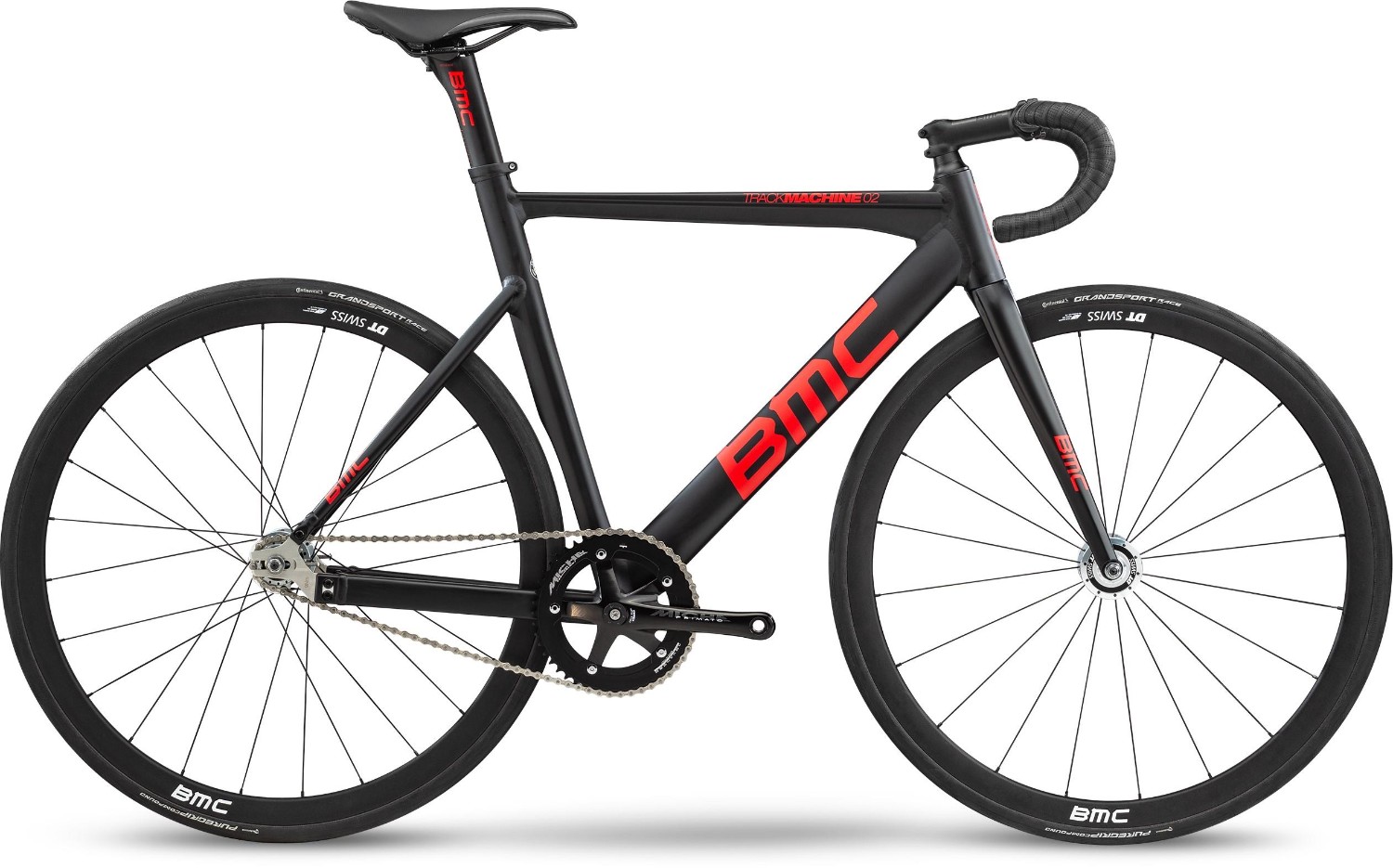

BMC Trackmachine TR02 One 2020 - Road Bike

The Trackmachine’s story is a funny one that goes back to equipping the Velodrome Suisse with rental bikes.
"Not quite true," laughs Stefan Christ, BMC’s Head of product development. “That project just happened to coincide with the creation of the Trackmachine 01 for the Swiss National Team at the Rio Olympics. The Trackmachine 02 makes it available to everyone who strives for the best,” he elucidates. Ever since it hit the boards in 2015, the credentials of the Trackmachine 01 and 02 haven’t been questioned, and Stefan enthusiastically cites Stefan Küng’s feats and Rohan Dennis’ hour record of 52.491km as testament to the design being up to the task. For elite riders, the requirements are obviously different, explains Stefan, so BMC took two different paths:
“We quickly realized that there are two main groups of customers: ones that enjoy riding on the track and do not race; as well as athletes that in most cases do several disciplines (like the omnium) and travel to competitions on different continents.” These diverse needs pointed Stefan towards greater adjustability and ease while travelling, a prerequisite for the 01 model. But whatever your level of racing, Stefan is confident in the performance. “Everybody who rides this bike gives feedback that it’s very precise and transfers power perfectly.” He pauses, looking down at his watch: “Hold on, I’ve got an hour free now, shall we go across the road to the velodrome and try it out?”
Vmax Technology
p2p x subA: The formula for high-performance cycling – Position-to-Perform maximizes the adjustability of your riding position while SubA innovation creates an incredibly fast frame profile. Do the math!
P2p integrated seatpost
The p2p integrated seatpost offers 4 different saddle hardware attachment possibilities for maximum rider position adjustability (only Trackmachine 01)
Adjustable Dropouts
Replaceable and adjustable full-stainless steel dropouts.
P2p modular stem
The p2p modular stem is adjustable in length and in height, delivering 0ptimized stiffness and steering precision.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Trackmachine TR02, BSA threaded bottom bracket |
Fork | Aero 02 Carbon, subA Aero Technology |
Stem | BMC RSM 03 |
Bars | BMC RAB 03, ergo top shape, compact bend |
Brake Lever | This bike is designed for velodrome and track use only. It is not legal for road use without a front brake fitted and cannot be fitted with brakes |
Speed | 1 |
Rims | DT Swiss |
Front Tyre | Continental Grand Sport Race SL, 23mm |
Rear Tyre | Continental Grand Sport Race SL, 23mm |
Seat Post | Trackmachine 02 Airfoil post, carbon |
Saddle | VL-1205 |
Chainset | Miche Advanced Pista, 48T 1 Speed Fixed |
Chain | Miche Pista, 1/8" |
Cassette | Miche Pista Steel, 15T |
Pedals | Basic Resin Flat |
BMC Trackmachine Sizing and Geometry
Size |
XS |
S |
M |
L |
Stack |
476 |
490 |
525 |
563 |
Reach |
387 |
395 |
402 |
413 |
Seat tube |
490 |
520 |
550 |
585 |
Top tube |
528 |
540 |
558 |
580 |
Head tube |
95 |
110 |
138 |
178 |
Seat angle |
73.5 |
73.5 |
73.5 |
73.5 |
Head angle |
73 |
73 |
73 |
73 |
Rear centre |
390-420 |
390-420 |
390-420 |
390-420 |
Front centre |
564 |
577 |
592 |
616 |
Wheelbase |
949 |
956 |
975 |
999 |
BB Drop |
50 |
50 |
58 |
58 |
Fork length |
364 |
364 |
364 |
364 |
Fork rake |
43 |
43 |
43 |
43 |
Trail |
58 |
58 |
58 |
58 |
Crank length |
165 |
165 |
170 |
170 |
Stem length |
90 |
100 |
110 |
120 |
Stem angle |
6 |
6 |
6 |
6 |
Bar width |
380 |
380 |
400 |
400 |
Bar drop |
125 |
125 |
125 |
125 |
Bar reach |
70 |
70 |
70 |
70 |
Post length |
320 |
320 |
320 |
320 |
Post offset |
15 |
15 |
15 |
15 |
Standover |
725 |
749 |
780 |
807 |
