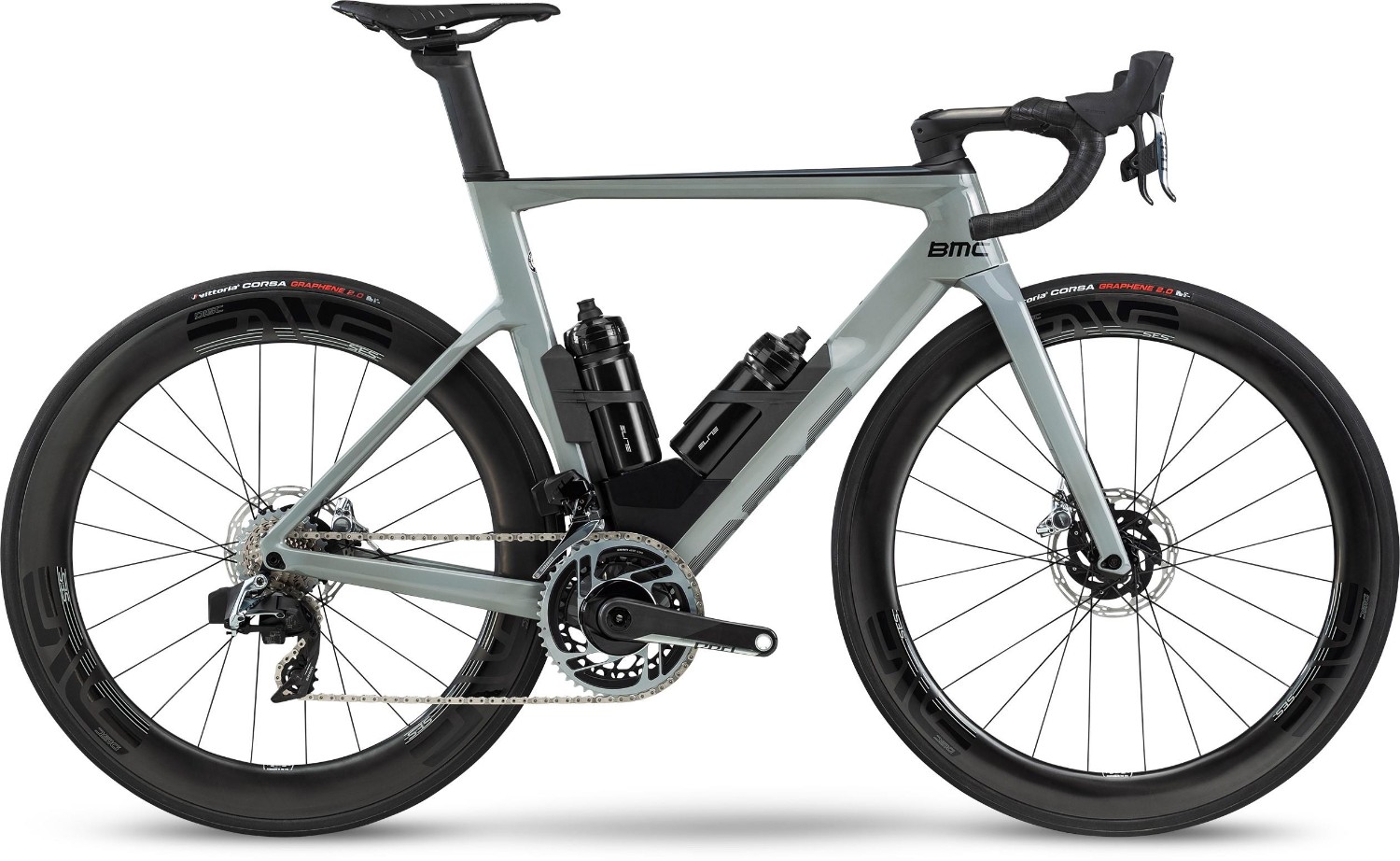

BMC Timemachine 01 Road One 2020 - Road Bike

"None of the design is just to add styling for the sake of styling.”
There’s pride in Torgny’s voice as he says it. As BMC’s Design Director, he played a central role in the creation of our fastest bike to date, and therefore wants to set the record straight. "The design of the Timemachine Road is very much driven by its engineering," he explains. "The aerodynamic efficiency is what dictates the aesthetics to a large degree. So even though the visual integration of the bottles is a nice side effect, that specific integration is all about reducing drag.”
The designer runs his hand along the downtube, agreeing that it is a very fast-looking bike. "The angular design language with straight lines, tight radii and sharp edges communicates Swiss precision engineering, which is a big part of our DNA. The goal is that the design helps people understand the function and performance of the bike, and not just to add styling for the sake of styling.”
Integrated Cockpit System (ICS) Aero
The most Aerodynamic iteration of ICS Technology features excellent aero performance, uncompromised adjustability, and peerless ease of service with a minimal frontal surface area, stealth cable routing and a 2-piece construction.
Tuned Compliance Concept (TCC) Speed
TCC Speed is designed to optimize power transfer and rolling resistance on every road surface, achieving peak speeds for extended periods of time.
Advanced Aerodynamics
Advanced tube profiles maximize aerodynamic performance in real-life conditions
Aero Module
A modular system that combines hydration and storage elements into one seamless aerodynamic unit.
Integrated Aero Cover
The minimal profile of the front caliper cover optimizes airflow at every yaw angle.
Aero Post
Superbly aerodynamic through its Kamm tail profile, the Aero Post provides a wide range of adjustments.
TCC Speed fork
The Timemachine Road fork marries the ultimate aerodynamic performance with the exact dosage of vertical compliance for improved control.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Timemachine Road 01, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle |
Fork | Timemachine Road 01 Aerodynamic Premium Carbon Disc, TCC Speed, Flat Mount w/ Caliper Cover, 12x100mm thru-axle |
Stem | BMC ICS Aero- Integrated Aero Cockpit Design, w/ Computer Mount |
Bars | BMC ICS Aero, aero top shape, compact bend |
Front Brake | Sram RED eTap AXS HRD |
Rear Brake | Sram RED eTap AXS HRD |
Front Mech | SRAM RED eTap AXS |
Rear Mech | SRAM Red eTap AXS |
Shifters | SRAM RED eTap AXS HRD |
Speed | 24 |
Rims | ENVE SES 5.6 DISC |
Front Hub | ENVE Road Disc, CL |
Rear Hub | ENVE Road Disc, CL |
Front Tyre | Vittoria Corsa, 25mm |
Rear Tyre | Vittoria Corsa, 25mm |
Seat Post | BMC Aero post, 01 premium carbon, p2p |
Saddle | Fizik Arione R1 Carbon |
Chainset | Sram RED AXS 48/35T 2x12 |
Chain | SRAM RED 12 Speed |
Cassette | SRAM RED XG-1290, 10-28T |
Pedals | Basic Resin Flat |
Timemachine 01 Road Sizing
size |
47 |
51 |
54 |
56 |
58 |
61 |
rider height |
<166 |
166-174 |
172-180 |
178-186 |
184-192 |
>190 |
stack mm |
496 |
520 |
540 |
555 |
574 |
598 |
reach mm |
373 |
381 |
390 |
395 |
405 |
413 |
seat tube st mm |
480 |
518 |
548 |
568 |
588 |
611 |
top tube tt‘ mm |
520 |
535 |
550 |
560 |
575 |
590 |
head tube ht mm |
71.2 |
71.2 |
72 |
72 |
72 |
72 |
seat angle sa ° |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
head angle ha ° |
71.2 |
71.2 |
72 |
72 |
72 |
72 |
rear center rc mm |
410 |
410 |
410 |
410 |
410 |
410 |
front center fc mm |
577 |
592 |
594 |
604 |
620 |
636 |
wheelbase wb mm |
975 |
991 |
994 |
1004 |
1020 |
1036 |
bb drop mm |
70 |
70 |
70 |
70 |
70 |
70 |
fork length fl mm |
379 |
379 |
374 |
374 |
374 |
374 |
fork rake fr mm |
50 |
50 |
45 |
45 |
45 |
45 |
trail mm |
62 |
62 |
62 |
62 |
62 |
62 |
crank length mm |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
stem length mm |
100 |
100 |
110 |
110 |
120 |
120 |
stem angle ° |
-15 |
-15 |
-15 |
-15 |
-15 |
-15 |
bar width mm |
400 |
400 |
420 |
420 |
440 |
440 |
bar drop mm |
122 |
122 |
122 |
122 |
122 |
122 |
bar reach mm |
66 |
66 |
66 |
66 |
66 |
66 |
post length mm |
210 |
210 |
270 |
270 |
270 |
270 |
post offset mm |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
standover height mm |
743 |
774 |
799 |
816 |
834 |
858 |
