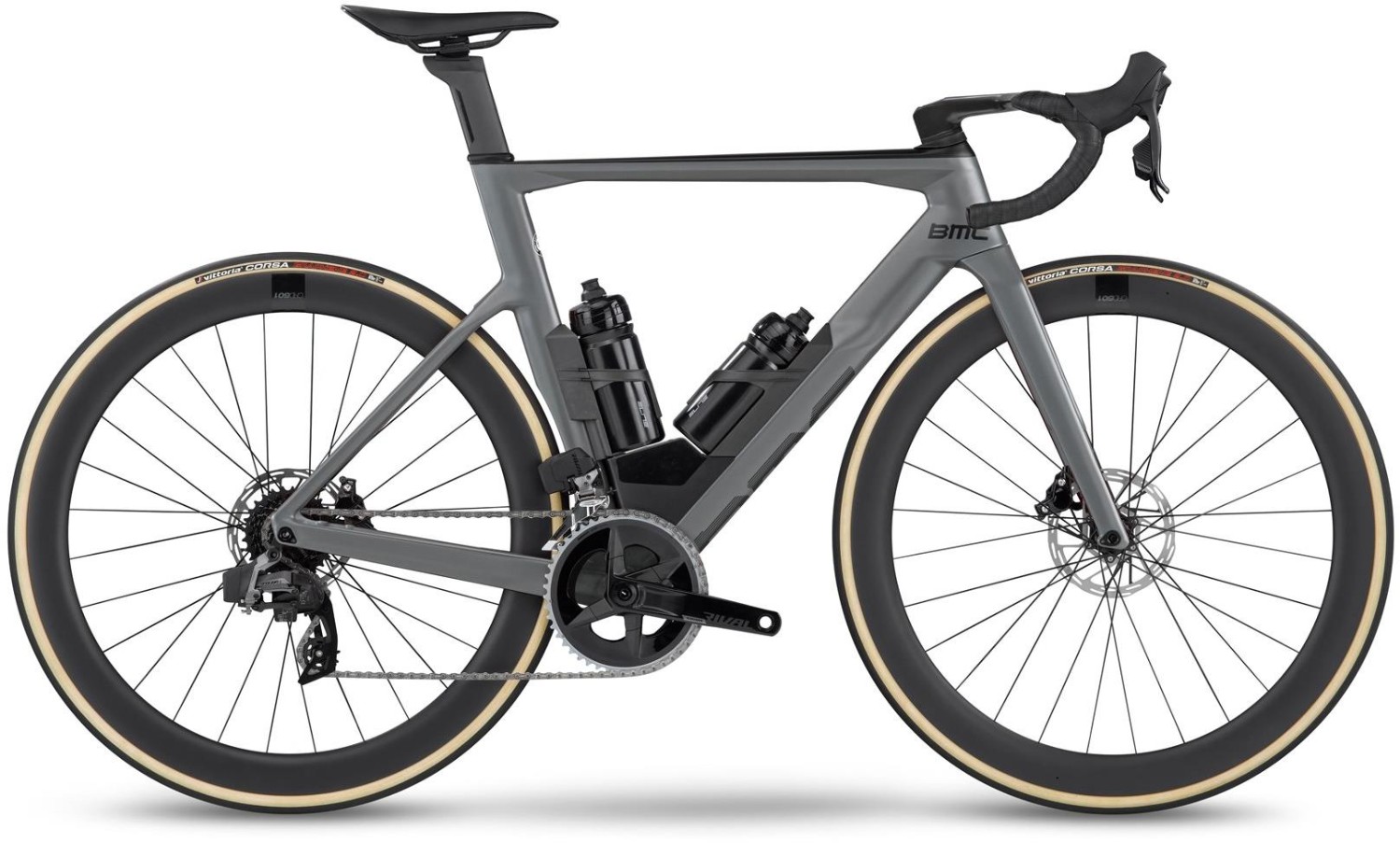

BMC Timemachine 01 ROAD THREE Rival AXS HRD 2023 - Road Bike

Take the aerodynamics of our fastest time trial bikes and mix it with the all-day comfort and climbing ability of our best road bikes, and you get the BMC Timemachine 01 ROAD THREE. Engineered with TCC Speed inside its Premium Carbon frame and fork, this aero bike has all the details for speed including an Aero Module, a front brake Aero Cover, an ICS Aero bar and stem, an Aero seatpost and Stealth Cable Routing. Go wireless with the SRAM Rival eTap AXS 12-speed groupset, which is paired with fast 50mm CRD-501 Carbon wheels.
Key features:
- Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed frame
- Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed forks
- SRAM Rival eTap AXS gears gives you fast and smooth shifting
- SRAM Rival eTap AXS HRD brakes give you the confidence to stop no matter the weather
- Colours: Iron Grey / Black
- Sizes: 47cm, 51cm, 54cm, 56cm, 58cm, 61cm
- The BMC Timmachine 01 ROAD THREE is available with 0% APR finance
Aerodynamics always matter, and optimising aerodynamics by integrating components unlocks free speed. Add ruthless efficiency, precise handling and refined comfort, and you have the Timemachine Road 01. At its core, the TCC Speed, Premium Carbon frame and fork incorporate the Aero Module, front brake Aero Cover, ICS Aero bar and stem, Aero seatpost and Stealth Cable Routing. Go wireless with SRAM’s Rival eTap AXS 12-speed groupset, which is paired with fast 50mm CRD-501 Carbon wheels.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed. ICS Aero Technology Stealth Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
Fork | Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed. ICS Technology Stealth Cable Routing. Flat Mount Disc. 12x100mm Thru-Axle |
Stem | BMC ICS Aero- Integrated Aero Cockpit Design |
Bars | BMC ICS Aero - Aero Top Shape - Compact Bend |
Front Brake | SRAM Rival eTap AXS HRD - Paceline Rotors 160mm |
Rear Brake | SRAM Rival eTap AXS HRD - Paceline Rotors 160mm |
Brake Lever | SRAM Rival eTap AXS HRD |
Front Mech | SRAM Rival eTap AXS |
Rear Mech | SRAM Rival eTap AXS |
Shifters | SRAM Rival eTap AXS HRD |
Speed | 2x12 |
Rims | CRD-501 Carbon - Tubeless Ready - 50mm |
Front Hub | CRD-501 |
Rear Hub | CRD-501 |
Front Tyre | Vittoria Corsa - 25mm |
Rear Tyre | Vittoria Corsa - 25mm |
Seat Post | Timemachine Road 01 Premium Carbon Aero Seatpost. 0, 15, 30mm Adjustable Offset |
Saddle | Fizik Argo Vento R3 (140mm) |
Chainset | SRAM RIVAL AXS 48-35T |
Bottom Bracket | PF86 |
Chain | SRAM Rival 12 Speed |
Cassette | SRAM FORCE XG-1270 10-30T |
Pedals | Resin Platform |
Timemachine 01 Road Sizing
size |
47 |
51 |
54 |
56 |
58 |
61 |
rider height |
<166 |
166-174 |
172-180 |
178-186 |
184-192 |
>190 |
stack mm |
496 |
520 |
540 |
555 |
574 |
598 |
reach mm |
373 |
381 |
390 |
395 |
405 |
413 |
seat tube st mm |
480 |
518 |
548 |
568 |
588 |
611 |
top tube tt‘ mm |
520 |
535 |
550 |
560 |
575 |
590 |
head tube ht mm |
71.2 |
71.2 |
72 |
72 |
72 |
72 |
seat angle sa ° |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
head angle ha ° |
71.2 |
71.2 |
72 |
72 |
72 |
72 |
rear center rc mm |
410 |
410 |
410 |
410 |
410 |
410 |
front center fc mm |
577 |
592 |
594 |
604 |
620 |
636 |
wheelbase wb mm |
975 |
991 |
994 |
1004 |
1020 |
1036 |
bb drop mm |
70 |
70 |
70 |
70 |
70 |
70 |
fork length fl mm |
379 |
379 |
374 |
374 |
374 |
374 |
fork rake fr mm |
50 |
50 |
45 |
45 |
45 |
45 |
trail mm |
62 |
62 |
62 |
62 |
62 |
62 |
crank length mm |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
stem length mm |
100 |
100 |
110 |
110 |
120 |
120 |
stem angle ° |
-15 |
-15 |
-15 |
-15 |
-15 |
-15 |
bar width mm |
400 |
400 |
420 |
420 |
440 |
440 |
bar drop mm |
122 |
122 |
122 |
122 |
122 |
122 |
bar reach mm |
66 |
66 |
66 |
66 |
66 |
66 |
post length mm |
210 |
210 |
270 |
270 |
270 |
270 |
post offset mm |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
standover height mm |
743 |
774 |
799 |
816 |
834 |
858 |
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the BMC Timemachine 01 ROAD THREE Rival AXS HRD 2023 - Road Bike.
This product is no longer available.
