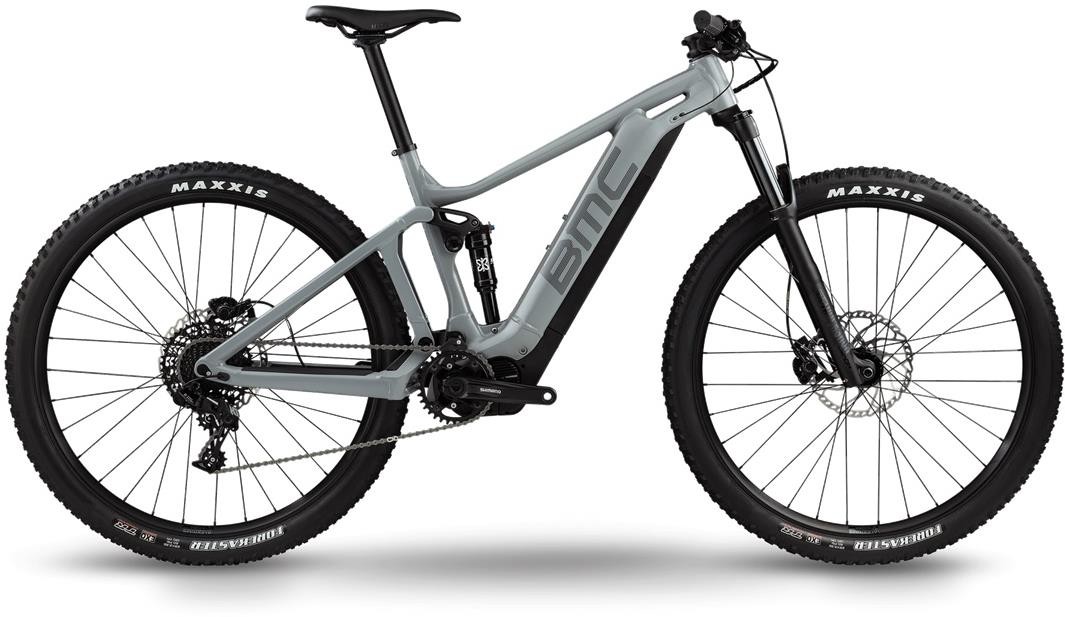

BMC Speedfox AMP Five S 29" 2020 - Electric Mountain Bike

Who needs a city to socialise (safely, from a distance) when you’ve got trails to shred?
“I think e-MTBing came along at the right time for us, as we never wanted a conventional hobby and had struggled to find much enjoyment in regular riding,” explains Lisa, over the excited yells of Denise and Michelle in the background. The women come to a halt behind her, their hair windswept around their faces, their shouts and smiles testifying to the amazing descent they’ve just come down. “Exactly,” interjects Denise, “but it took a while to find this thrill. We get such a kick when we go out on our Speedfox AMPs, which I think is what was missing before. When we first went riding a few years ago, it felt more like a chore.”
The three women are visibly stoked. Michelle speaks: “I mean, look at us now, this proves why. And in a minute we'll be on that climb over there too. Pedal, peak, repeat.” They laugh, get out their phones and open up the map. On this particular ride mission, they're decided to go ‘peak bagging’, so where's their next summit going to be?
Big Wheel Concept (BWC)
Purpose-built 29er geometry and cockpit designs mean our 29" bikes are nimble, stable, and incredibly efficient.
E-specific Advanced Pivot System
An efficient, plush suspension system with an e-MTB tune that blends your power with that of the bike.
Twin Hollow-core Technology
Hides the battery pack in the downtube while supporting a stiff front triangle.
Integrated Speed Sensor
Hidden in the rearstay and disc for a clean look and accurate speed measurement.
E-Specific Geo Concept
Adjusted to the needs of an e-mountainbiker, to provide the full all-mountain experience.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Speedfox AMP - Advanced Pivot System |
Fork | RockShox Recon RL, E-MTB, 130mm |
Rear Shock | X-Fusion O2 RL |
Stem | BMC MSM 03 |
Bars | BMC MFB 03 750mm |
Front Brake | Shimano Deore 200mm |
Rear Brake | Shimano Deore 200mm |
Rear Mech | SRAM NX |
Shifters | SRAM NX |
Speed | 11 |
Rims | Alex MD30 |
Front Hub | Formula DC-7131 |
Rear Hub | Formula EHL-148S |
Front Tyre | Maxxis Forekaster TR, 2.35 |
Rear Tyre | Maxxis Forekaster TR, 2.35 |
Seat Post | BMC MSP 03 |
Saddle | WTB Silverado Sport |
Chainset | Shimano FC-E8000, 34T 1x11 |
Chain | Sram PC-1110 |
Cassette | SRAM NX 11-42T |
Pedals | Basic Resin Flat |
Weight | 22.6kg |
Battery Size (WH) | Shimano STEPS MTB E-8020, 500Wh |
Motor | Shimano STEPS MTB E-8000, 250W, 70Nm output |
Speedfox AMP sizing
Size |
S |
M |
L |
Rider height (cm) |
<170 |
170 – 185 |
>180 |
Stack (mm) |
598 |
605 |
618 |
Reach (mm) |
401 |
445 |
472 |
Seat tube length (mm) |
400 |
440 |
480 |
Top tube length (mm) |
572 |
619 |
648 |
Head tube length (mm) |
92 |
103 |
118 |
Seat tube angle ° |
74 |
74 |
74 |
Head angle ° |
66 |
66 |
66 |
Rear centre (mm) |
450 |
450 |
450 |
Front centre (mm) |
711 |
752 |
784 |
Wheelbase (mm) |
1159 |
1202 |
1233 |
BB Drop (mm) |
33 |
35 |
35 |
Fork length (mm) |
541 |
541 |
541 |
Fork rake (mm) |
51 |
51 |
51 |
Trail (mm) |
110 |
107 |
107 |
Crank length (mm) |
170 |
170 |
170 |
Stem length (mm) |
50 |
50 |
50 |
Stem angle ° |
6 |
6 |
6 |
Bar width (mm) |
750 |
750 |
750 |
Bar rise (mm) |
10 |
20 |
20 |
Bar sweep ° |
9 |
9 |
9 |
Seatpost length (mm) |
125x380 |
150x430 |
150x430 |
Seatpost offset ° |
0 |
0 |
0 |
Standover (mm) |
760 |
765 |
770 |
