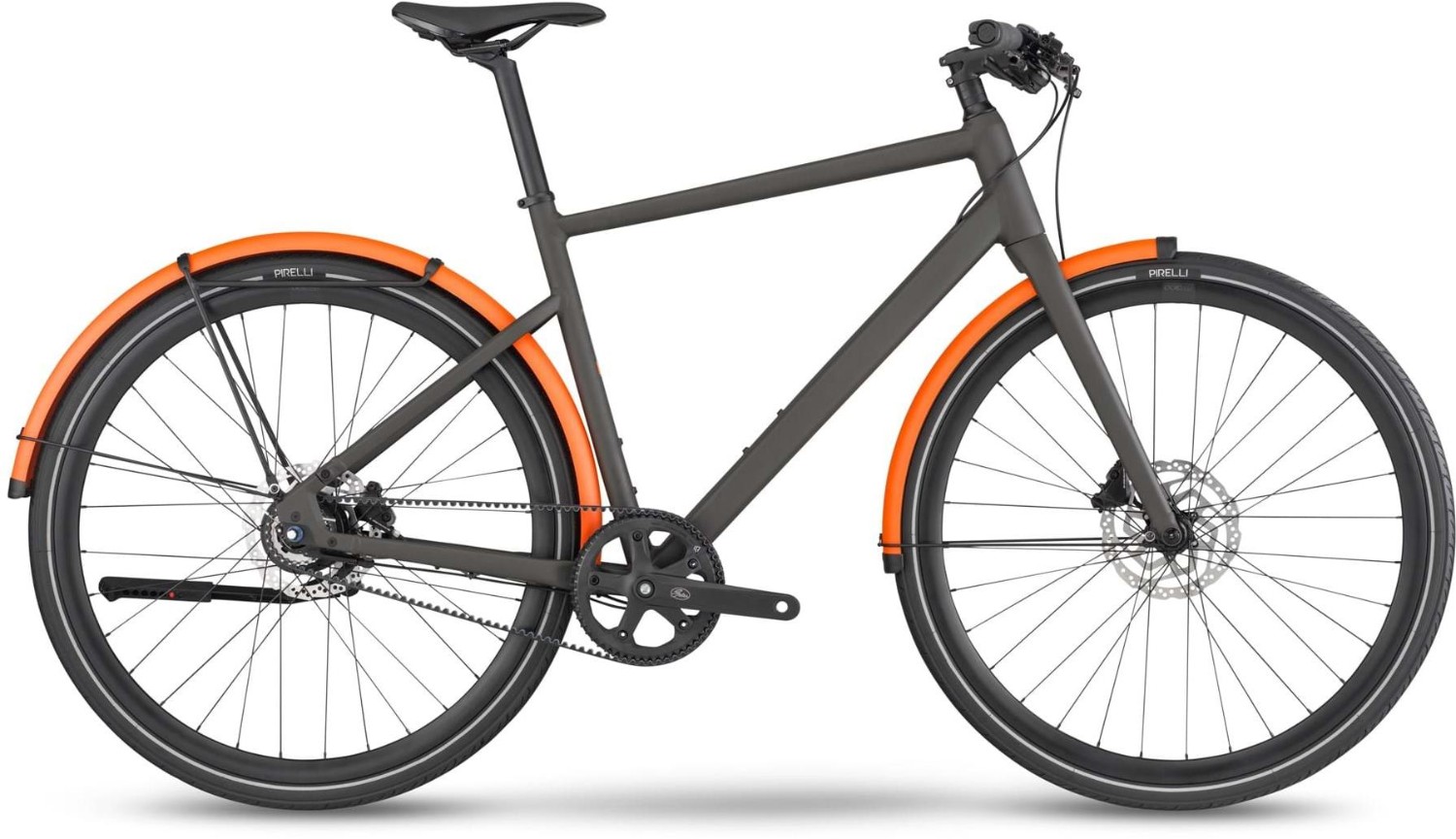

BMC 257 AL Three Nexus 8 2023 - Hybrid Sports Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | 257 Premium Aluminium Smoothwelded. Powder Coat Finish. Internal Cable Routing. BSA Threaded Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
Fork | 257 Premium Aluminium. Fender Mounts. Flat Mount Disc. 12x100mm Thru-Axle |
Stem | BMC RSM01 |
Bars | BMC LSB 03 |
Front Brake | SHIMANO MT200/RT10 Rotors (160/160) |
Rear Brake | SHIMANO MT200/RT10 Rotors (160/160) |
Brake Lever | SHIMANO MT200 |
Shifters | SHIMANO Alfine 8 Rapidfire Plus |
Speed | 8 |
Rims | PFR300 |
Front Hub | CL-712 / SHIMANO Nexus 8 |
Rear Hub | CL-712 / SHIMANO Nexus 8 |
Front Tyre | Pirelli Angel GT - 37mm |
Rear Tyre | Pirelli Angel GT - 37mm |
Seat Post | BMC LSP 02 |
Saddle | Selle Royal Vivo |
Chainset | GATES S150 CDN 55T |
Chain | Belt GATES 120 CDX |
Cassette | GATES SUREFIT 3-LOBE UNIFIED CDX2 4T |
Pedals | Resin Platform |
Weight | 17.00 kg |
Typical Hybrid Bike Sizing Chart
Frame Size
XXS - 13"
4'8"
5'1"
XS - 15"
5'1"
5'4"
S - 16"
5'4"
5'7"
M - 18"
5'7"
5'10"
L - 19"
5'10"
6'0"
XL - 20"
6'0"
6'3"
XXL - 21"
6'3"
6'5"
XXXL - 22"
6'5"
6'9"
Hybrid Bike Sizing Chart
Height |
Bike size (cm) |
bike size (Inch) |
4’8” – 5’1” 143 – 155 cm |
44 – XXS |
13” – XXS |
5’1” – 5’4” 155 – 163 cm |
48 – XS |
15” – XS |
5’4” – 5’7” 163 – 170 cm |
51 – S |
16” – S |
5’7” – 5’10” 170 – 178 cm |
54 – M |
18” – M |
5’10” – 6’0” 178 – 183 cm |
56 – L |
19” – L |
6’0” – 6’3” 183 – 191 cm |
58 – XL |
20” – XL |
6’3” – 6’5” 191 – 196 cm |
60 – XXL |
21” – XXL |
6’5” – 6’9” 196 – 205 cm |
62 - XXXL |
22” – XXXL |
