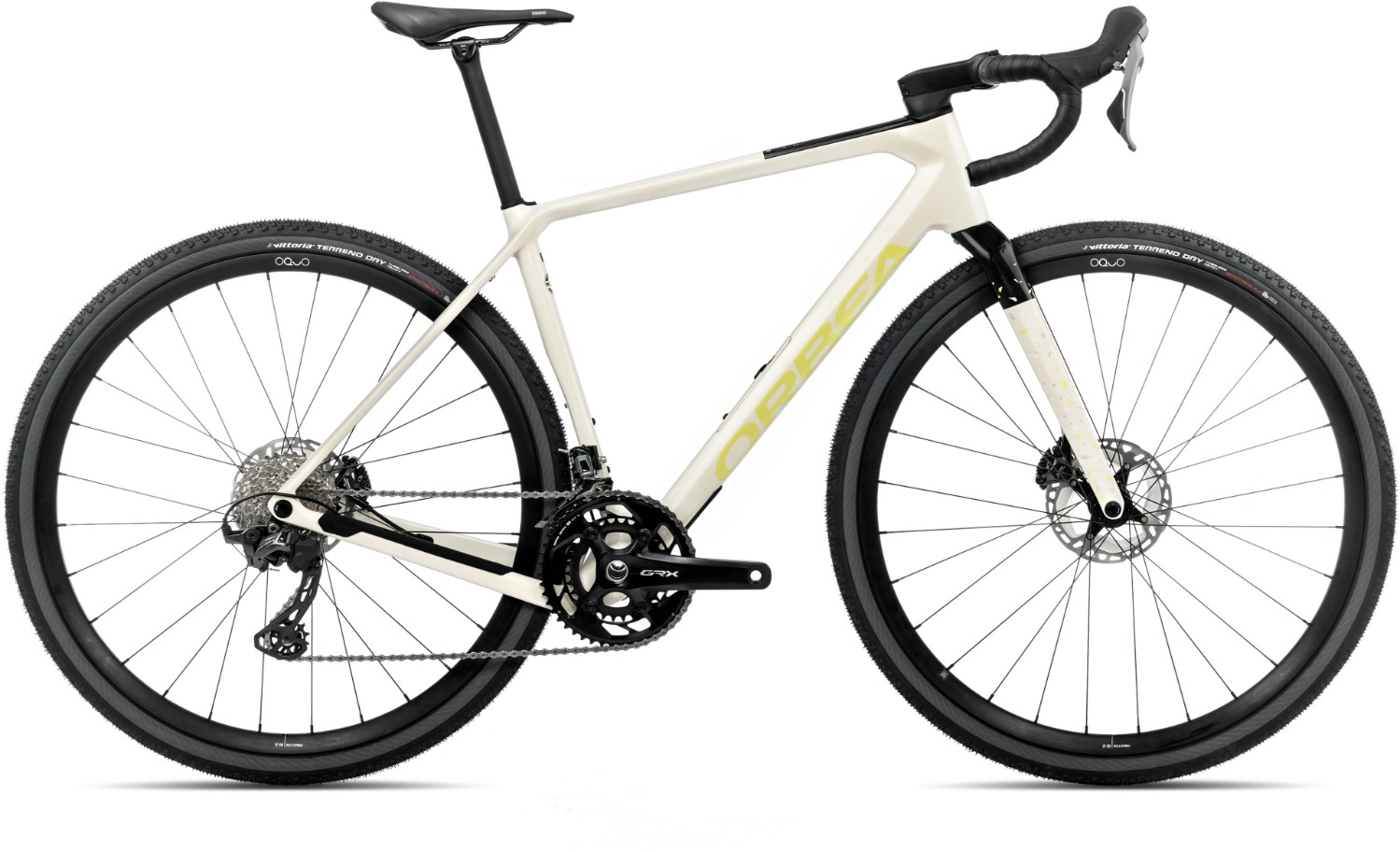

Orbea Terra M20 Team 2025 - Gravel Bike
Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
Gravel is a universe of different users and terrains. For that reason Terra is a complete platform with different models in aluminium and carbon, offering the most inclusive solutions that won’t leave anyone indifferent.
The Terra M is the sportiest option within the family, fast and light for those back roads or gravel path adventures.
The carbon frame offers the perfect blend of weight, comfort and strength while the LOCKR system takes care of storing those essentials.
- Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
- Designing the frame from the ground up gave Orbea the opportunity to tackle a problem which exists in many gravel frames. Namely giving a range of drivetrain options without compromising tyre clearance.
- The Orbea Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools.
- The Oquo Road Control range lets you keep on riding long after the road ends. With a focus on robustness and comfort, these are the perfect addition to amp up your adventures.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box |
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP11, -8º |
| Bars | OC Gravel GR31, Reach 70, Drop 110 |
| Front Brake | Shimano RX820 Hydraulic disc |
| Rear Brake | Shimano RX820 Hydraulic disc |
| Front Mech | Shimano GRX RX820 |
| Rear Mech | Shimano GRX RX820 |
| Shifters | Shimano GRX RX820 |
| Speed | 24 |
| Rims | Oquo Road Control RC25PRO, alloy rim, Zipp ZR1 hub, 25mm internal width, Sapim Sprint TCS Oxi spokes, 700C |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| Front Tyre | Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c |
| Rear Tyre | Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c |
| Seat Post | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle | Prologo Akero AGX black rails size 155mm |
| Chainset | Shimano GRX RX820 31x48t |
| Chain | Shimano M7100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Pedals | Resin Platform |
Orbea Terra Size Chart
|
SIZE |
HEIGHT (CM) |
HEIGHT (IN) |
|
XS |
155 - 166 |
61.1 – 65.4 |
|
S |
167 – 172 |
65.7 – 67.7 |
|
M |
173 – 179 |
68.1 – 70.5 |
|
L |
180 – 185 |
70.9 – 72.8 |
|
XL |
186 – 191 |
73.2 – 75.2 |
|
XXL |
192 - 207 |
75.6 – 81.5 |
What size frame do I need if I am between sizes? - read here
