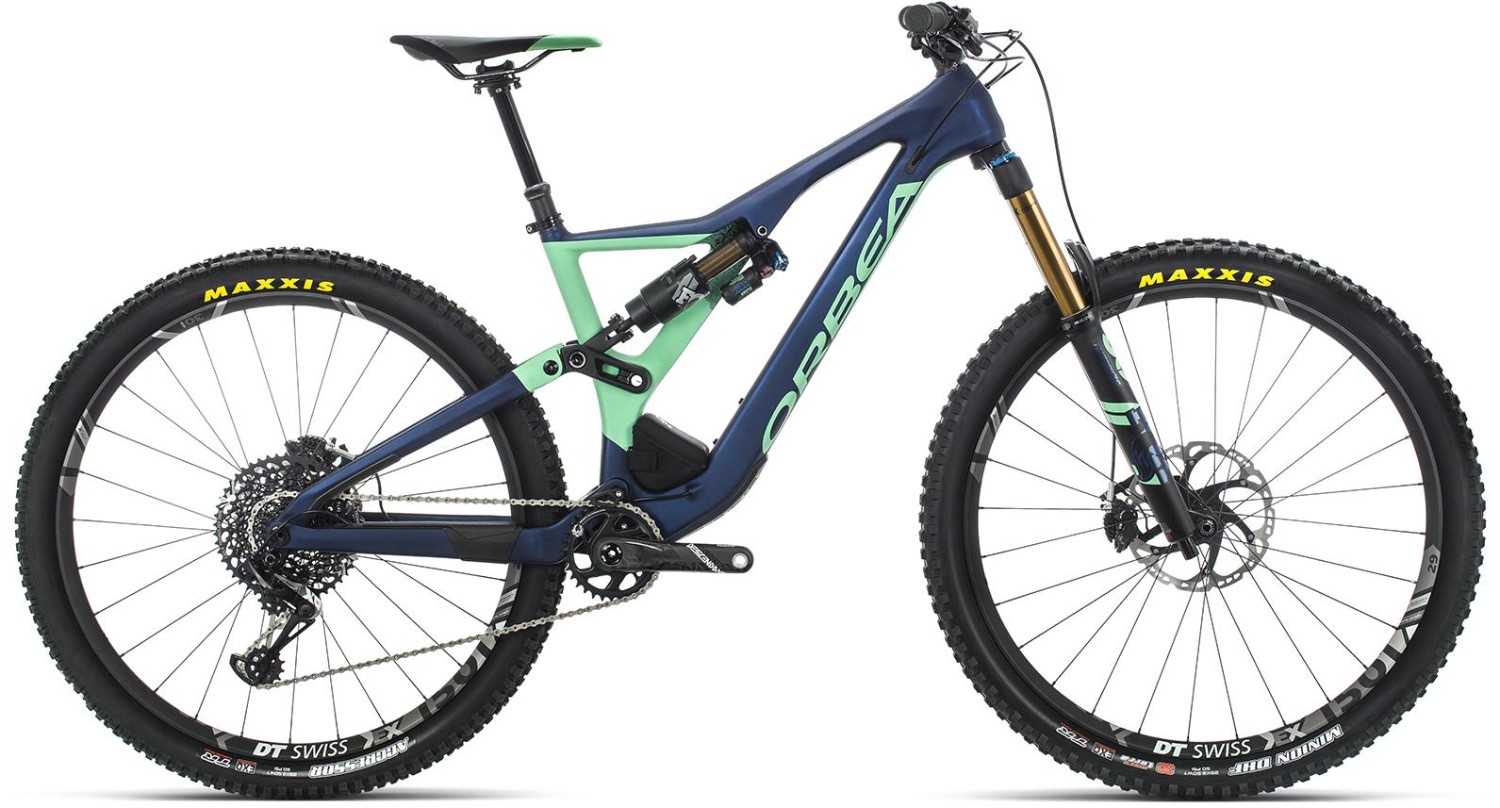

Name: Orbea Rallon M-Team 29er Mountain Bike 2019 - Enduro Full Suspension MTB
Brand: Orbea

The Orbea Rallon has become one of the go to 29er Enduro bikes of the moment, often seen on the race circuit for good reason, furious on the descents and efficient on the climbs.

Being a 29er it naturally holds its speed and momentum on all types of trail. The lightweight asymmetric full carbon fibre frame lets this relatively large bike stay nimble with the agility to be thrown around easily at speed.

150mm rear and 160mm of front travel with wide 2.5-inch Maxxis rubber on the big wheels mean this bike can take on anything you can throw at it, as proved on the Enduro World Series.

“Straight out of the box this bike is a weapon!”

Dirt MTB

Race ready specification with suspension from Fox, with the plush and highly adjustable Fox Float X2 air shock on the rear and Fox’s new GRIP2 damper in the Kashima coated forks. Sram X01 Eagle 12 speed groupset mixed with the ever dependable Shimano XT brakes, rolling on the wide and tough as nails but lightweight DT Swiss EX 1501 Spline wheelset.

Orbea Rallon Review

Key Features

Full carbon fibre frame
65° head angle, 76° seat angle
29” Wheels
160mm Fox 36 Kashima forks
150mm rear travel from Fox Float X2 factory shock
Sram X01 Eagle drivetrain
Wide, Enduro specific DT Swiss wheelset
Sizes Small/medium, Large, Extra Large
Colour: Blue/Mint, Purple, Red/Black
The Orbea Rallon M-Team is available with 0% APR finance

All Tredz bikes are:

Fully built & ready to ride
Fully checked & tested by Cytech qualified mechanics
Available with 0% APR finance on baskets over £99
365 day no hassle returns
Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

Free Tredz 9 key trail tool
Free Tredz pedal spanner
Free basic pedals
Tredz drawstring kit bag
16 point quality control check sheet
Basic bike setup instructions
Free Cycle Plan insurance voucher (8 weeks)

It’s the difference between the tentative first go of the year and the ripping third lap of a midsummer day. It’s the ease of knowing your suspension is dialled. It’s a boost of confidence, speed and control when a bit more of any could make a winning formula. Enduralin is the extra bit of fun that turns a good ride into a great one – the shouting of the crowd, a flow state of euphoria, cowbells, chainsaws, accelerated reaction time and enhanced perception. It’s the difference between a Good Time and All-Time.

Concentric Boost - Increasing rear axle spacing to 148mm over the 142mm standard moves the chainline outboard by 3mm, increasing the space available at the bottom bracket. This doesn't sound like much but means that tire clearance can be increased without sacrificing drivetrain clearance or swingarm rigidity. All of it adds up to more durability, nimble handling and a bike that tracks better through rough terrain.

Asymmetry Ergonomics - The asymmetric/offset design offers unique advantages beyond stiffness and low weight. The shock is mounted in a position that offers incredibly easy access to damper controls, and without a frame support in the way, adjusting progressivity with volume spacers is easy to right on the bike. By offsetting the shock, the amount of vertical space required to fit the shock and support is reduced, leaving room for a tool kit and a 500ml bottle with easy left-side access. The top tube is lower for extremely low standover.

Monocoque-OMR - Orbea Monocoque Race (OMR) frames blend high modulus fibres and high strength fibres exclusively. Prepreg carbon sheets are laser cut to minimize excess materials and overlap, and hours of pre-moulding ensure optimal compaction with the smallest amount of carbon. A full EPS (Expanded Polystyrene) mould helps eliminate wrinkles and voids.

Lower Standover - The 12mm offset of the shock allows the vertical distance taken up by the top tube, shock and frame reinforcement to be compressed. The top tube is lower for extremely low standover.

Offset Pivot Link - Rallon's concentric boost suspension provides unique freedom to our engineers to finely design the kinematics so that pedalling efficiency, small bump sensibility, suspension progressivity and rear system stiffness to weight ratio can be independently optimized. A high main pivot point provides minimum pedalling energy losses at the same time the seat stays and linkage positioning ensures just the right progressivity for outstanding bump absorption and ultimate grip and control. The suspension provides just the right progressivity (10%) so that can be used with any of the air or coil specifically tailor tuned Fox Shox, ensuring every rider gets the maximum performance out of the box.

Highlights:

Pure Enduro Geometry

Slack Head Angle

Long Cockpit

Adjustable Geometry

Long Wheelbase

Steep Seat Angle

Low Bottom Bracket

Short Chainstays

Great Stability at speed through rough terrain

Optimum balance and weight distribution

A simple rotation of the shock mount pin drops the BB 7mm and slackens angles by 0.5 degrees.

Occasionally, without notice, manufacturers change product design and/or specifications.

Rallon Sizing

See the table below to find the right size Orbea Rallon.

Size	S/M	LG	XL
Height (Cm)	160-175	170-185	180-198
Height (Inches)	63.0” – 68”9	66.9” – 72.8”	70.9” – 78.0”

Read our bike size guide for more information on sizing.

Rallon Geometry

	SM	LG	XL
Seat Tube	406	444	483
Top Tube	583	611	644
Head Tube	100	110	125
Chain Stay	-	435	-
BB Height	-	343/336	-
BB Drop	-	28/35	-
Wheelbase	1187	1217	1253
Head Angle	-	65.5/65	-
Seat Angle	-	76	-
Stand Over	737	767	781
Reach	430	455	485
Stack	615	624	637
Fork Length	-	567.1	-
Rake	-	44	-
Crank	170	170	170
Stem	32	32	32
Handlebar	800	800	800

Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
