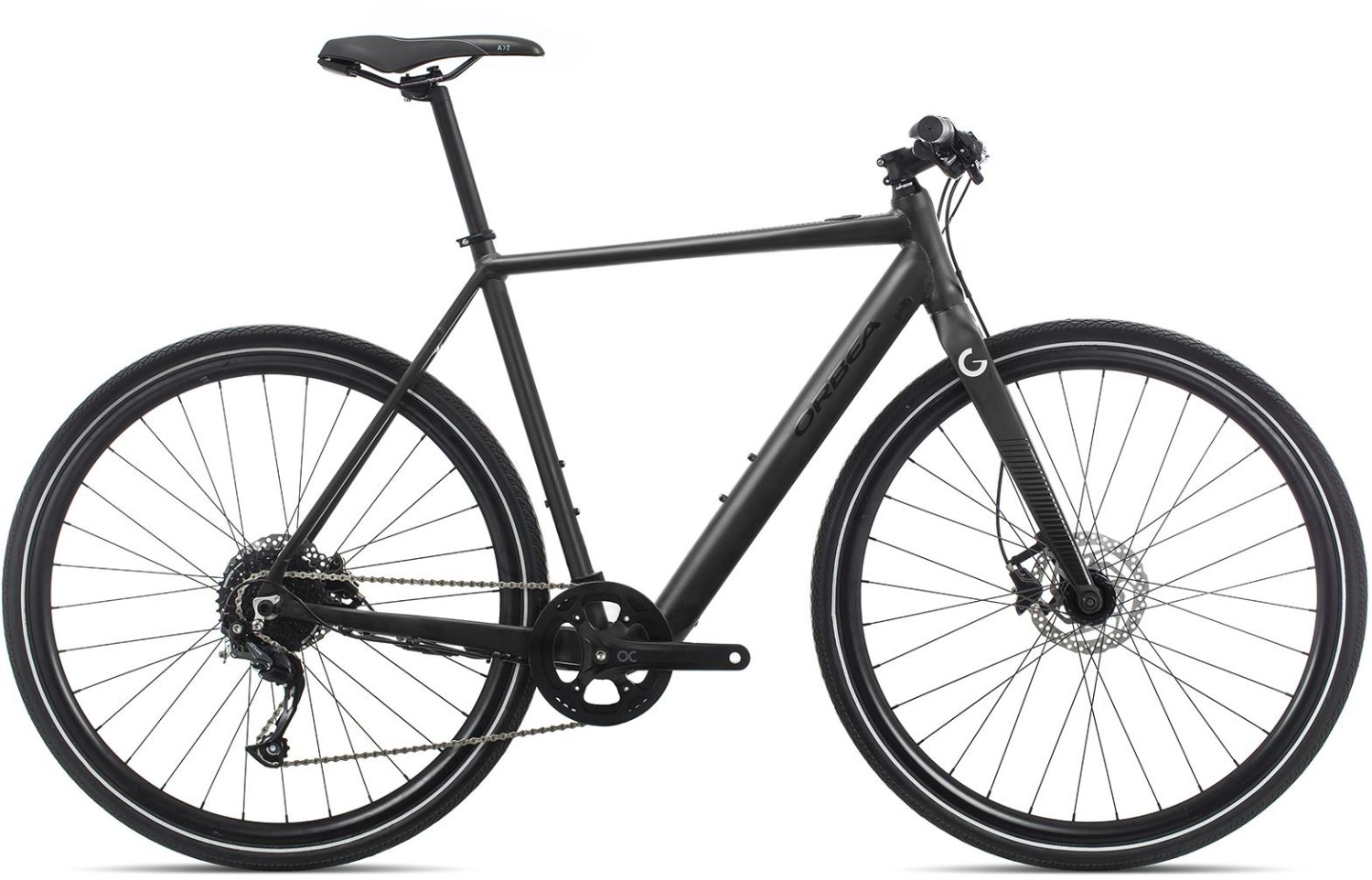

Orbea Gain F40 2019 - Electric Hybrid Bike

An e bike that doesn’t look like an e bike. The Orbea Gain F40 is an electric urban bike that features an incredibly well integrated battery and rear wheel hub drive motor. With the simple iWoc ONE user interface on the top tube you have all the control you need over the drive unit without having a cluttered cockpit. This flat bar road e bike is ideal for commuting and effortless city cycling.
Key Features:
- 6000 Series hydroformed aluminium alloy with rack and mudguard mounts
- Carbon fork for a smoother ride
- Shimano Altus 1x9 speed drivetrain
- Shimano hydraulic disc brakes for all-weather stopping power
- 700c road bike wheels with wide 38c tyres
- Sizes: X Small, Small, Medium, Large, X Large
- Colours: Black, Blue, Green, Red/Black
- The Orbea Gain F40 is available with 0% APR finance
Drive Information:
- Motor: Ebikemotion X35, rear hub drive, 40Nm
- Battery: Ebikemotion 36v downtube integrated battery pack
- User interface/remote: iWoc One top tube button & smartphone app, iWoc TRIO interface on handlebar
- Connectivity: Bluetooth
Gain was designed to enhance your ride, not dominate it. The Enough Power and Enough Energy concepts result in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road. Gain embraces your sweat and hard work and works in unison with your efforts to tick off the kilometres. System interfaces are modern, integrated and sleek. There are no bulky components to reduce the riding experience, distractions have been minimized so it’s just you, Gain and the hours ahead.
Mode Button - Save space on your handlebar for a GPS if you wish, or ride without clutter. Gain's control centre is an attractive and discreet button on the top tube. With the simple iWoc ONE interface, you can power the system on or off, check motor assist level and view the remaining battery charge. Coloured LED lighting puts all the information you need right at your fingertips.
Internal Battery - The battery os one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Gain's Enough Energy concept provides you with enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
Drive System - The heart of the Gain, the rear hub motor is the key to Gain's Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you'll experience drag-free pedalling when Gain is not providing a push
C.A.N Integration - Gain doesn't require a multitude of wires, ports or accessories. The CAN (Controller Area Network) bus port provides a single interface for charging, system diagnosis or attaching the external backup battery.
PAS Sensor - Gain's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lockring holds 20 magnets that are detected by the integrated dropout sensor. The system monitors your pedalling input and adjusts power accordingly
App - A smartphone and smartwatch compatible app enable deeper control of the iWoc system used by Gain. Ride tracking, activity and GPS route uploading and other functions are available from your mobile device, making Gain an even more valuable tool.
Versatile - The new carbon frame includes the same integration features other Orbea Carbon frames have, plus the complexity of also fully integrating the motor power cable and the P.A.S sensor.
Mavic - In order to bring the best quality built, we've teamed up with Mavic and brought their bestsellers into the Gain family; the Aksium Elite and Cosmic Carbon Wheels.
Tire Clearance - The move to wider tires is happening everywhere, with even road racers opting for the comfort and lower rolling resistance of 25c or 28c tyres. To make Gain even more versatile it is possible to mount most 40c tyres, either with clincher or tubeless.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Gain |
Fork | Speed 400mm Carbon Flat mount |
Headset | 1-1/8" Semi-Integrated |
Bars | Orbea OC-I Riser 640mm |
Front Brake | Shimano MT200 Hydraulic Disc |
Rear Brake | Shimano MT200 Hydraulic Disc |
Rear Mech | Shimano Altus M2000 SGS Shadow |
Shifters | Shimano Altus M2000 |
Rims | Airline Corsa |
Front Tyre | Kenda K1067 700x38C Reflective type+puncture protection |
Rear Tyre | Kenda K1067 700x38C Reflective type+puncture protection |
Seat Post | Orbea OC-I 27.2x350mm |
Chain | KMC e9 Turbo Silver |
Cassette | Shimano HG200 11-36 9-Speed |
Pedals | VPE-537 Black |
Battery Size (WH) | 250 Wh |
Motor | Ebikemotion |
User Interface | Ebikemotion iWoc ONE |
Orbea Gain D & F Series Sizing
See the table below to find the right size Orbea Gain D Series.
Height |
< 160cm |
160 -170cm |
170 -180cm |
180 -190cm |
> 190cm |
Size |
XS |
S |
M |
L |
XL |
Read our bike size guide for more information on sizing.
Orbea Gain D & F Series Geometry
Size |
XS |
S |
M |
L |
XL |
Seat Tube |
460 |
510 |
555 |
585 |
610 |
Top Tube |
522 |
546 |
560 |
574 |
595 |
Head Tube |
109 |
127 |
150 |
176 |
203 |
Chainstay |
430 |
430 |
430 |
430 |
430 |
BB Height |
281 |
281 |
283 |
283 |
285 |
BB Drop |
70 |
70 |
68 |
68 |
66 |
Wheel Base |
1016 |
1022 |
1037 |
1051 |
1067 |
Head Angle |
71 |
72 |
72 |
72 |
72.3 |
Seat Angle |
75 |
74 |
74 |
74 |
73.5 |
Standover |
754 |
782 |
815 |
829 |
876 |
Reach |
378 |
387 |
395 |
402 |
410 |
Stack |
535 |
555 |
575 |
600 |
625 |
Fork Length |
400 |
400 |
400 |
400 |
400 |
Rake |
51 |
51 |
51 |
51 |
51 |
Orbea Gain D series Components
SIZE |
CRANK |
STEM |
HANDLEBAR |
XS |
170 |
90 |
400 |
S |
170 |
100 |
420 |
M |
170 |
100 |
420 |
L |
172 |
110 |
440 |
XL |
175 |
120 |
440 |
Orbea Gain F Series Components
SIZE |
CRANK |
STEM |
HANDLEBAR |
XS |
170 |
70 |
640 |
S |
170 |
70 |
640 |
M |
170 |
70 |
640 |
L |
170 |
70 |
640 |
XL |
170 |
70 |
640 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
