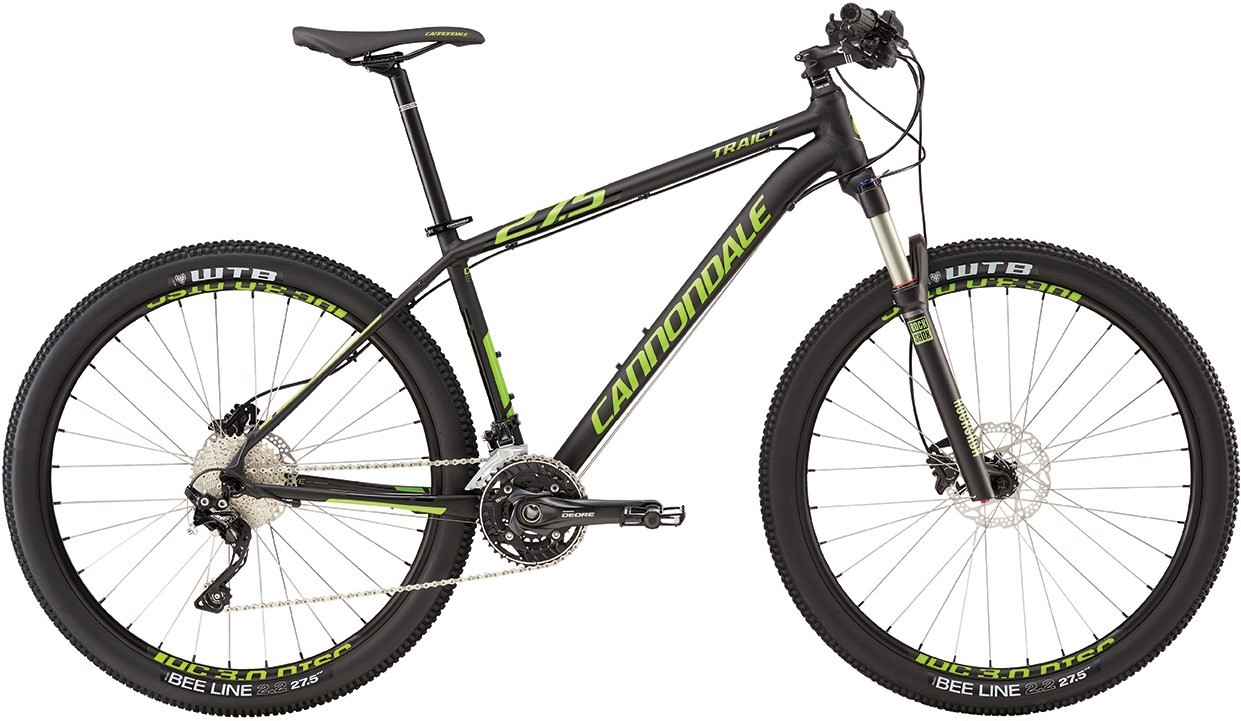

Cannondale Trail 1 Mountain Bike 2016 - Hardtail MTB

Quick and confident the Cannondale Trail 1 is a lightweight hardtail mountain bike that features nimble trail geometry, a quality component spec and fast rolling 650b wheels. Experience the thrill of the trail.

Lightweight alloy frame

Strong and lightweight the 6061 aluminium frame features double butted tubes as well as  Cannondales trademark smooth welds. Butting is process where excess material is removed from low stress areas to reduce weight without compromising strength.

Save Stays in the rear triangle add compliance for improved traction and a smoother ride. The seat and chainstays are flattened to provide some vertical flex (compliance) without compromising horizontal and torsional rigidity. Power transfer is immediate.

RockShox Recon fork

With 32mm stanchions (wider than on the other trail models) offering a stiffer front end the RockShox Recon Gold fork offers precise steering. Featuring a lightweight Solo Air spring the performance is composed over the rough stuff. Rebound damping is adjustable so you can set the fork up for optimal performance.

Shimano XT

The 3x10 speed drivetrain is a mix of Shimano XT and Deore and offers precise, reliable shifting over a wide range of gears so that you can take on all the varied terrain on cross country tracks and trail centre loops.

Shimano Deore hydraulic disk brakes are powerful with great modulation. You can control your speed with confidence whether the trails are fast and dry or wet and slippery.

650b Wheels

The Trail 1 features 27.5” (650b) wheels which roll much quicker over rough ground than the smaller 26” wheels found on traditional MTBs, while still remaining nimble on tight technical sections. These wheels offer a distinct performance advantage. Alex DC 3.0 rims are strong, durable and lightweight while the WTB BeeLine tyres feature low profile tread for fast rolling performance.

Quick and composed the Cannondale Trail 1 is a hardtail MTB ready for cross country adventures.

Key Features :

• Designed to be the best blend of fast and fun.
• Lightweight, reliable and affordable.
• Entry-level bikes with performance that's anything but entry-level.
• 27.5 Wheels - Trail bikes are designed with 27.5" wheels because their combination of agility and momentum offers the best possible blend of fast and fun for all riders.
• Optimized Alloy Frame - The Trail features highly manipulated tube shapes, designed to maximize the performance of the frame while reducing weight. The entire frame is heat treated to a T6 hardness after welding to ensure uniform grain alignment and strength.
• Save Stays - Optimized seat stay and chain stay shaping provides vertical compliance for a more comfortable ride with no loss in lateral rigidity.
• Smooth Welds - Trademark double-pass smooth welds showcase Cannondale's aluminium frame mastery. Since we don't patch fill with putty and paint, our process eliminates the stress-risers and weak points found on traditionally welded frames, enabling us to build lighter, stronger frames everywhere in the line.

The Cannondale Trail 1 2016 Features are:

Frame: Trail, Optimized 6061 Alloy, SAVE, 1-1/8” head tube

Fork: RockShox Recon Gold TK 27.5", 100mm, Solo Air, PopLoc remote lockout, rebound, 1-1/8"

Headset: Tange Zstep

Bars: Cannondale C3, 6061 double-butted alloy, 20mm rise x 720mmCannondale Locking Grips

Stem: Cannondale C3, 6061 Alloy, 1-1/8", 31.8, 6 deg.

Shifters: Shimano Deore

Front Mech: Shimano Deore, 31.8 clamp

Rear Mech: Shimano XT Shadow

Chainset: Shimano Deore M612, HollowTech, 40/30/22

Bottom Bracket: Shimano BB51 Hollowtech

Cassette: Sunrace, 11-36, 10-speed

Chain: KMC X10, 10-speed

Front Brake: Shimano M506 hydraulic disc, 180mm

Rear Brake: Shimano M506 hydraulic disc, 160mm

Rims: Alex DC 3.0, double wall, 32-hole

Front Hub: Shimano RM66 Disc

Rear Hub: Shimano RM66 Disc

Tyres: WTB NineLine, 27.5x2.0" Front WTB NineLine, 27.5x2.0" Rear

Seatpost: Cannondale C3, 6061 alloy, 27.2x350mm

Pedals: Cannondale Platform

Occasionally, without notice, manufacturers change product design and/or specifications.
