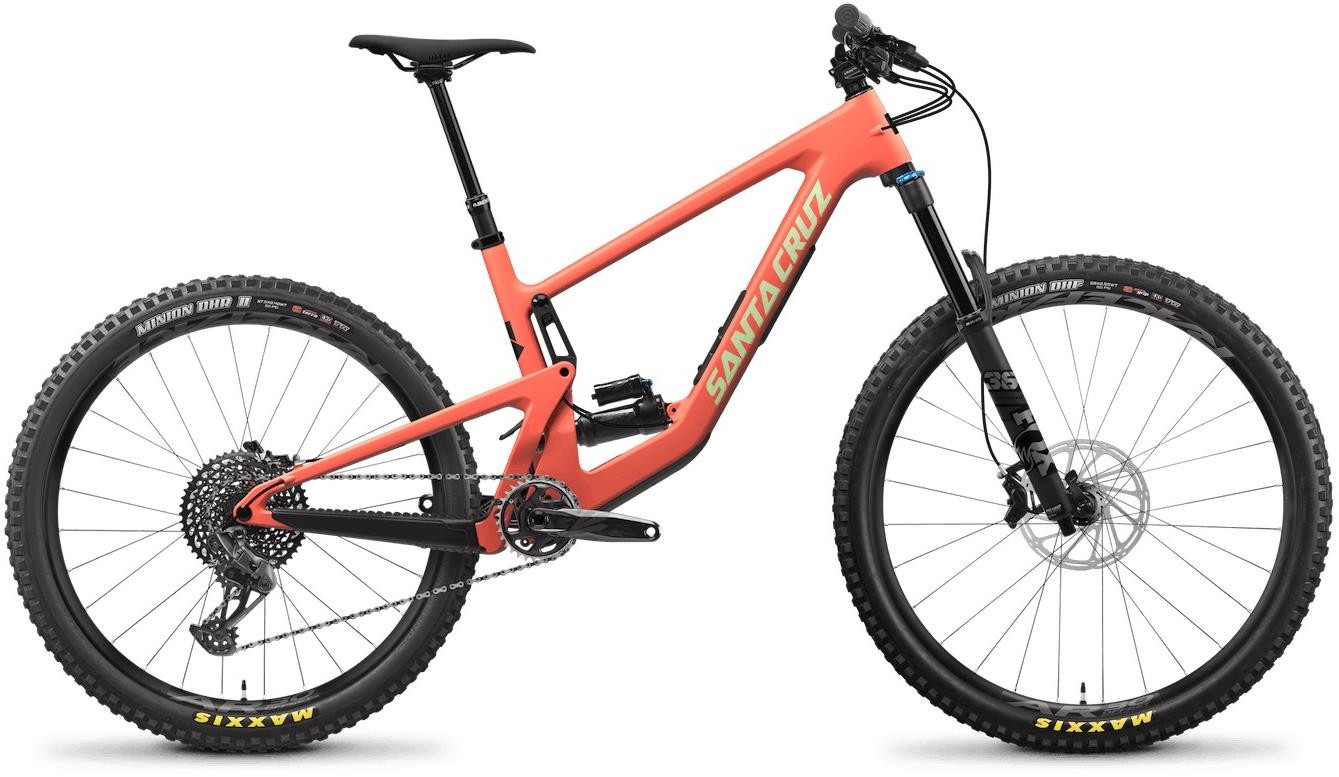

Santa Cruz Bronson C S MX Mountain Bike 2023 - Enduro Full Suspension MTB
SRAM Eagle Transmission - stronger, better shifting, wirelessly
The next generation SRAM Eagle Transmission specced on our CC-carbon models is a radically robust, fully integrated and interdependent wireless transmission. Built around the universal constant of the wheel axle itself, the Full Mount hangerless attachment creates a far stronger connection to the frame and the super strong derailleur provides unprecedented strength. Shifting under load is made possible due to a combination of X-SYNC technology and cassette mapping, creating seamless shifts even during your hardest power output. The new AXS Pods are extremely ergonomic and highly customizable, so shifting gears is light and intuitive. It's simply the most advanced transmission and nearly as tough as the mountain itself.
150mm VPP™ travel
The 150mm-travel bike has enough travel to go deep on any landing and the VPP™ suspension design makes sure that there’s no wasted energy when heading back up for another go.
Mix of both worlds
The mixed wheel configuration of a 29-inch wheel up front provides traction and stability, while the 27.5" rear wheel allows for quick back wheel steering and lifting.
Geo to match
The Bronson's chainstay length is matched to frame size so every rider, no matter their height, gets the same balanced geometry and bike fit.
Coil or air
The Bronson frame fits all sizes and types of rear shocks.
Made to last many lifetimes
The legendary Santa Cruz fit, finish and quality construction put this into a league of its own. The frame, bearings and optional Reserve wheels come with a lifetime warranty and any service is easy to do with our Rider Support pledge.
Tough Carbon Frame
Why scrap a frame when a simple bearing service can make one last a lifetime? That's our stance on sustainability at least, and it's why our carbon fiber doesn’t just mean lighter, it means tough as hell, lifetime warranty and crash replacement support.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon C |
| Fork | FOX 36 Float Performance, 160mm |
| Rear Shock | RockShox Super Deluxe Select+ 230x60 |
| Headset | Cane Creek 40 IS Integrated Headset |
| Stem | Burgtec Enduro MK3, 42mm |
| Bars | Burgtec RideWide Alloy Bar, 800mm |
| Front Brake | SRAM Code R Avid Centerline 200mm |
| Rear Brake | SRAM Code R Avid Centerline 180mm |
| Brake Lever | SRAM Code R |
| Rear Mech | SRAM GX Eagle, 12spd |
| Shifters | SRAM GX Eagle |
| Speed | 12 |
| Rims | RaceFace AR Offset 30 29" |
| Front Hub | DT Swiss 370, 15x110, 28h |
| Rear Hub | DT Swiss 370, 12x148, XD, 36t, 28h |
| Front Tyre | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, TR |
| Rear Tyre | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR |
| Seat Post | SDG Tellis Dropper, 31.6 |
| Saddle | WTB Silverado Medium CroMo |
| Chainset | SRAM GX Eagle 148 DUB, 32t |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Chain | Sram GX Eagle, 12spd |
| Cassette | SRAM XG1275 Eagle, 12spd, 10-50t |
| Pedals | Resin Platform |
Santa Cruz Bronson Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
XS |
142 – 155cm |
4’8” – 5’1” |
|
S |
155 – 165cm |
5’1” – 5’5” |
|
M |
165 – 175cm |
5’5” – 5’9” |
|
L |
175 – 185cm |
5’9” – 6’1” |
|
XL |
185 – 196cm |
6’1” – 6’5” |
Santa Cruz Bike Sizing Tips
If you're on the cusp between the recommended height range of two sizes, then you choose the size based on your personal preference.
A larger size frame will be more stable and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Another thig to consider is that not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Santa Cruz Bronson 2023 Geometry
|
Size |
XS |
S |
M |
L |
XL |
|
Reach | hi/lo |
405/402 |
430/427 |
455/452 |
475/472 |
500/497 |
|
Stack | hi/lo |
594/595 |
617/619 |
626/628 |
635/637 |
649/651 |
|
Head Tube Angle | hi/lo |
64.7°/64.5° |
64.7°/64.5° |
64.7°/64.5° |
64.7°/64.5° |
64.7°/64.5° |
|
Seat Tube Length | hi/lo |
370/370 |
380/380 |
405/405 |
430/430 |
460/460 |
|
Front Center | hi/lo |
722/722 |
757/757 |
786/786 |
811/810 |
842/842 |
|
BB Height | hi/lo |
344/341 |
344/341 |
344/341 |
344/341 |
344/341 |
|
BB Drop (front) | hi/lo |
10/13 |
29/32 |
29/32 |
29/32 |
29/32 |
|
BB Drop (rear) | hi/lo |
10/13 |
29/32 |
29/32 |
29/32 |
29/32 |
|
Wheelbase | hi/lo |
1149/1154 |
1188/1189 |
1221/1222 |
1249/1249 |
1284/1285 |
|
Rear Centre | hi/lo |
427/432 |
431/432 |
435/436 |
438/439 |
442/443 |
|
Head Tube Length | hi/lo |
110/110 |
100/100 |
110/110 |
120/120 |
135/135 |
|
Top Tube Length | hi/lo |
536/542 |
570/575 |
599/604 |
623/627 |
653/657 |
|
Seat Tube Angle | hi/lo |
77.6°/76.9° |
77.2°/76.7° |
77.1°/76.6° |
76.9°/76.5° |
76.7°/76.4° |
|
Standover Height | hi/lo |
701/698 |
709/706 |
731/727 |
729/726 |
728/725 |
- All units are in millimetres or degrees.
