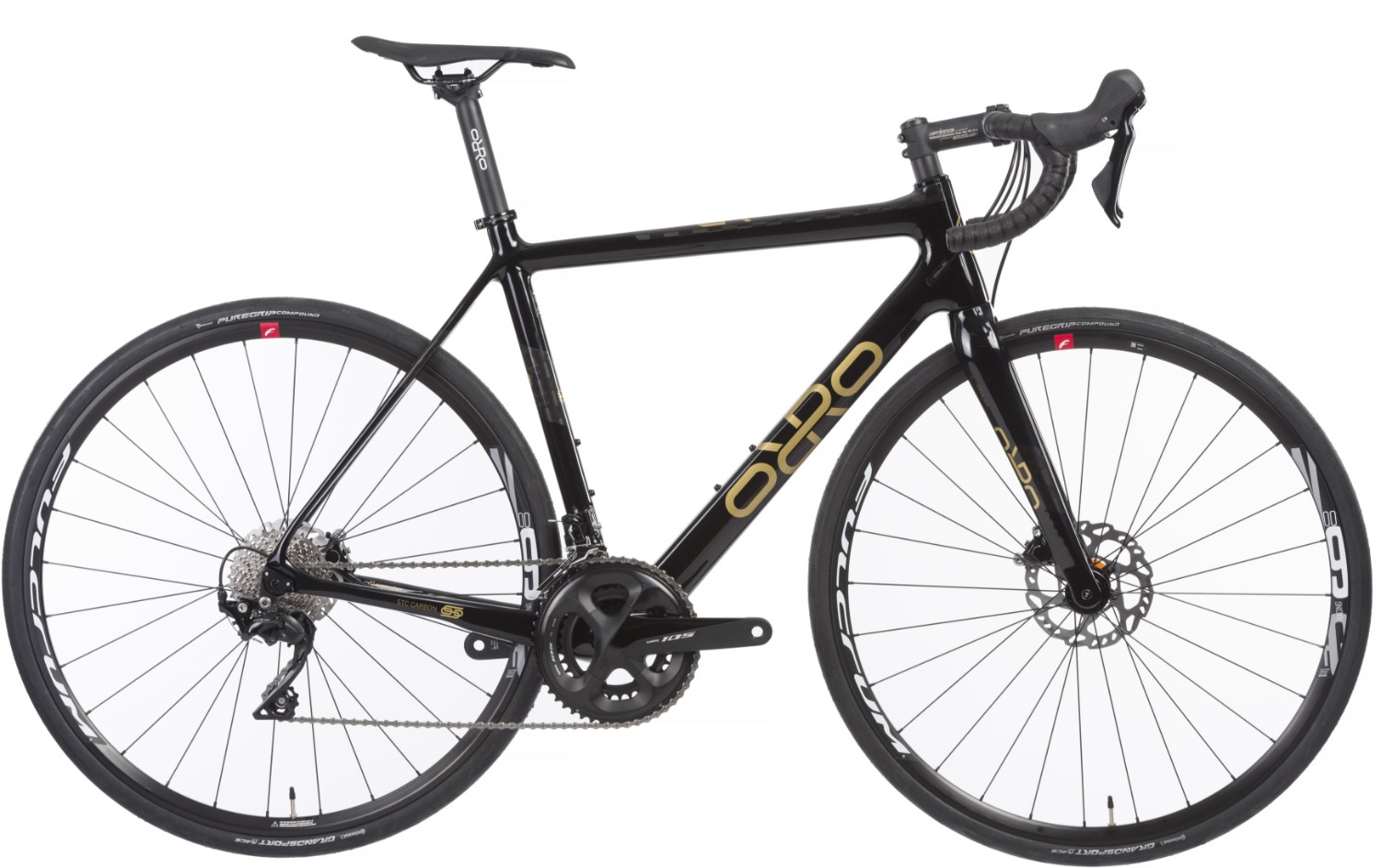

Orro Gold STC 105 2023 - Road Bike
The Orro Gold STC is Orros longest standing model. With gold standard ride quality and a competitive frameset weight, the Gold STC is purpose-built for those long days in the saddle.
Key Features:
- Gold STC carbon frame ensures lightweight and responsive performance
- Gold STC carbon fork delivers nimble handling and control
- Shimano 105 hydraulic disc brakes for powerful braking
- Shimano 105 11 Speed Groupset for reliable and consistent shifting
- Colour: Red
- Sizes: Small (52cm), Medium (54cm), Large (56cm), X Large (58cm)
- The Orro Gold STC 105 is available with 0% APR finance
The geometry of the longest running model has been revised across a myriad of generations to create a bike which seamlessly balances speed with efficiency for endurance riding. The rider is perfectly positioned to allow for full focus on the ride ahead while the Sigmatex engineered spread tow carbon frame offers ride dampening qualities for unrivalled comfort.
Orro's unique relationship with Sigmatex, who are a UK based carbon composite specialist, allows them to have an intrinsically detailed and supportive design ethic so they can produce the best results. The STC material was chosen for its combination of low weight and high stiffness allowing them to optimise certain areas of the frame for the ride characteristics that they wish to promote. This has given them a future classic in the Gold STC - a bike of climbing category weight with all the comfort and efficiency required to take on any endurance challenge you can point it at.
Perfectly developed and obsessively refined to create the ultimate Gran Fondo machine. The Gold possesses geometry and character that rewards the audacious. Supremely comfortable while cruising on the tops – aggressive and efficient when powering in the drops.
Featuring a full 105 groupset with the low maintenance consistency of hydraulic disc brakes to ensure power and control are at your fingertips on every descent. In order to achieve the right low end gearing for extended climbing efforts we specified a compact chainset paired with an 11-32T cassette. This combination offers a highly effective ratio of gears making it much easier to completely conquer hills of considerable elevation while maintaining a healthy pedalling cadence for smooth riding.
Having lower gears to reach for preserves precious calories allowing you to remain in the saddle longer, this is perfect for the all-day rides the Gold STC Ltd was designed to to take on.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Gold STC full STC carbon |
| Fork | Gold STC full STC carbon |
| Headset | Token OEM Omega A83/2 1-1/8 + 1.5 Black Headset |
| Stem | FSA Omega |
| Bars | FSA Vero |
| Front Brake | Shimano 105 ST-R7020/7070 |
| Rear Brake | Shimano 105 ST-R7020/7070 |
| Brake Lever | Shimano 105 ST-R7020/7070 |
| Front Mech | Shimano 105 FD-R7000 Front Derailleur Braze-On Black |
| Rear Mech | Shimano 105 RD-R7000SS Rear Derailleur Black (34T Max) |
| Shifters | Shimano 105 ST-R7020/7070 |
| Speed | 22 |
| Rims | Fulcrum Racing 900 DB Wheelset |
| Front Tyre | Conti Grand Sport Race 28mm |
| Rear Tyre | Conti Grand Sport Race 28mm |
| Seat Post | Orro Seatpost 31.6x350mm |
| Saddle | San Marco Monza |
| Chainset | Shimano 105 FC-R7000 Chainset 172.5mm 50-34 Black |
| Bottom Bracket | Token sealed bearing PF30PS Press Fit BB30 (46x68/24mm axle) |
| Chain | Shimano CN-HG601 11-Speed 114L |
| Cassette | Shimano 105 CS-R7000 Cassette 11-32T |
| Pedals | Resin Platform |
Orro Gold STC 2023 Size Chart
| Size | Height (cm) | Height (Inch) |
| XS | 155 - 163 | 5'1 - 5'4 |
| S | 163 - 170 | 5'4 - 5'7 |
| M | 170 - 178 | 5'7 - 5'10 |
| L | 178 - 183 | 5'10 - 6'0 |
| XL | 183 - 191 | 6'0 - 6'3 |
Orro Gold STC 2023 Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top tube | 500 | 520 | 540 | 567 | 584 |
| Head tube | 115 | 135 | 155 | 180 | 200 |
| Head tube angle | 71 | 71.5 | 73 | 73 | 73.3 |
| Wheelbase | 969 | 975 | 982 | 997 | 1015 |
| Seat tube angle | 75 | 74.5 | 74 | 73.5 | 73.5 |
| Chainstay | 407 | 407 | 407 | 407 | 410 |
| Seat tube | 500 | 520 | 539 | 565 | 585 |
| Stack | 510 | 531 | 559 | 582 | 600 |
| Reach | 362 | 372 | 380 | 395 | 406 |
What size frame do I need if I am between sizes? - read here
