(no reviews)Product ID: 259027

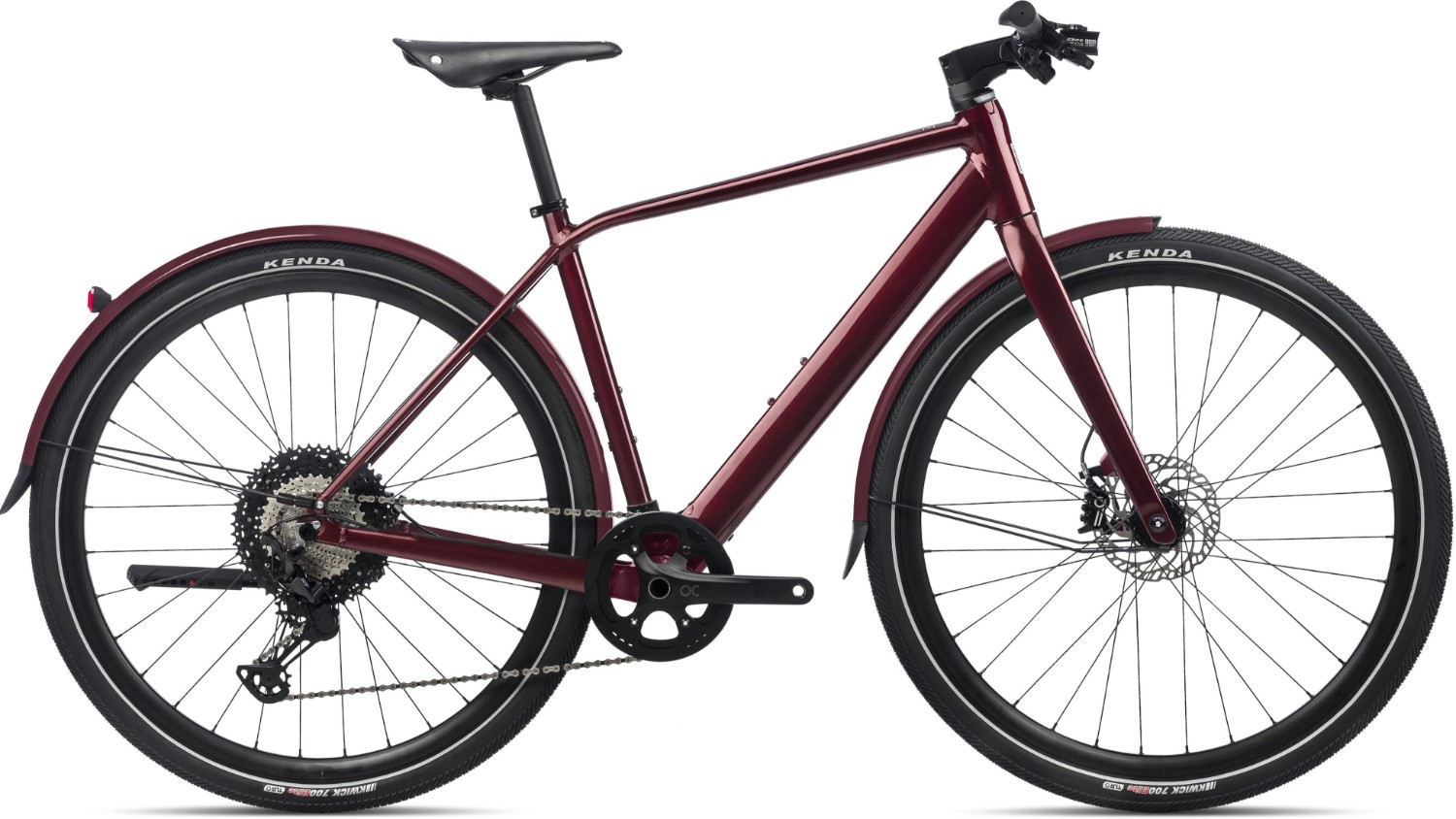

Orbea Vibe H10 Mud 2023 - Electric Hybrid Bike
In the spirit of Urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it – a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride – with a motor, battery and integrated electronics system designed for the fastpaced, grab-and-go lifestyle of the city
MATERIALS AND TECHNOLOGY EBIKEMOTION X35 PLUS
- Orbea hydroformed aluminum
- Vibe carbon fork
- Forged bb and dropouts
- Compatible with Range Extender
- Integrated headset
- Post mount
- Tire clearance – 45mm
EBikeMotion X35 Plus
The heart of Vibe, the rear hub motor is the key to the Enough Energy concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to amplify your input as discreetly as possible. And since the motor is at the hub, you’ll experience almost drag-free pedaling when Vibe is not providing a push. Vibe’s sophistcated Torque Simulation Algorithm mirrors your power input through the pedals to apply more power when you expect it and conserve energy when you’re spinning easily.
INTERNAL BATTERY
The battery is one of the most noticeable components of aneBike system, so every step has been taken to find the lightest,smallest and most discreet unit. Vibe’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
INTEGRATED LIGHTS
It’s like magic – Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Vibe is ready for the road.
ICR PLUS
Internal Cable Routing is carefully guided along the best pathunder the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
INTERFACE
CONECTIVITY AND GPS NAVIGATION WITH OFF LINE MAPS
Connect your smartphone to the EBikeMotion app and enjoy indepth system information plus ride and training details. Add your smartphone mount to Vibe´s handlebars and navigate new streets with ease thanks to the full turn-by-turn GPS with fully offline maps.
IWOC TRIO
Vibe’s control center is an attractive and discreet handlebarmounted switch, putting function at your fingertips without removing your hands from the bar.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible |
Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Stem | OC1 31.8mm interface -6º |
Bars | Alloy 31.8mm 12mm Rise 700mm |
Front Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
Rear Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
Rear Mech | Shimano XT M8100 SGS Shadow Plus |
Shifters | Shimano Deore M6100 |
Speed | 12 |
Rims | Orbea OC1 |
Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
Front Tyre | Kenda K1052 700x45C Reflective type TLR |
Rear Tyre | Kenda K1052 700x45C Reflective type TLR |
Seat Post | Alloy 27.2 Offset 20 |
Saddle | Brooks Cambium C15 283x140 |
Chainset | OC 42t, w/Chainguard |
Chain | KMC X12 |
Cassette | Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike |
Pedals | VP-537 Black |
Battery Size (WH) | Mahle 36V/6.9A 248Wh ANT+ |
Motor | Mahle motor hub X35 Plus 25kmh |
Orbea Vibe Size Chart
Size |
Height (cm) |
Height (in) |
S |
150 - 165 |
59.1" - 65.0" |
M |
165 - 180 |
65.0" - 70.9" |
L |
180 - 195 |
70.9" - 76.8" |
XL |
195 - 205 |
76.8" - 80.7" |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Orbea Vibe H10 Mud 2023 - Electric Hybrid Bike.
This product is no longer available.
