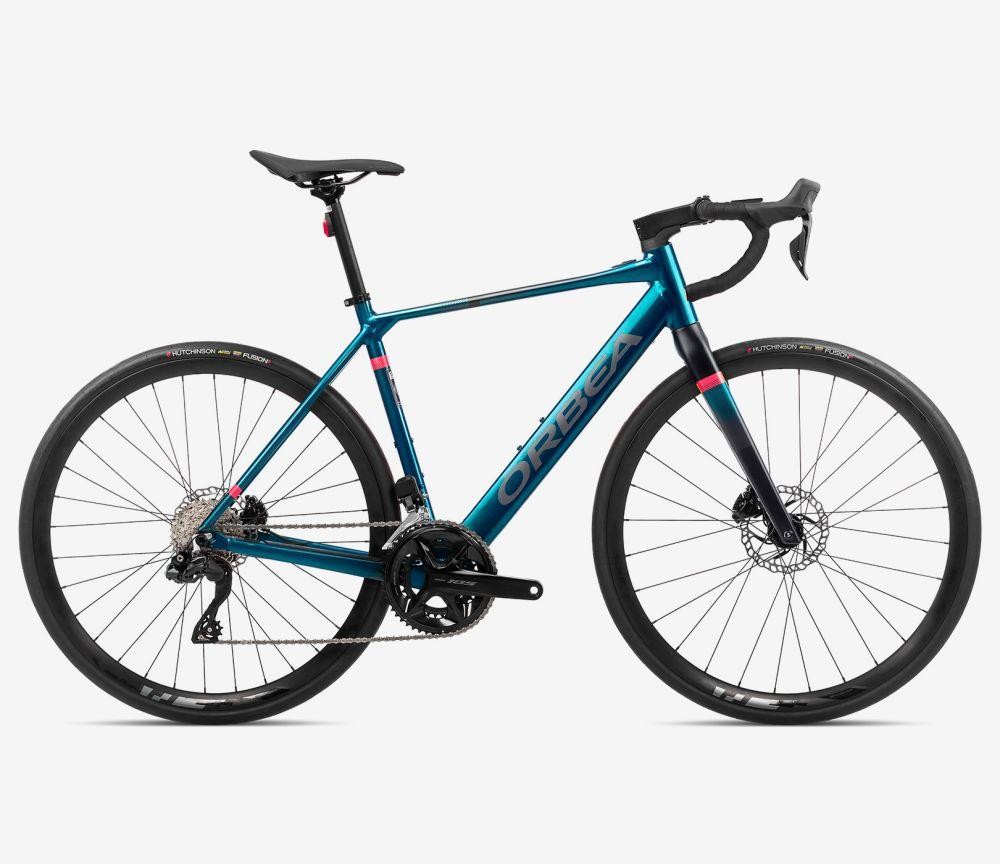

Orbea Gain D30i 2023 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket. |
Fork | Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Stem | OC Road Performance RP21, -6º |
Bars | OC Road Performance RP20 Alu SL, Reach 80, Drop 125 |
Front Brake | Shimano R7170 Hydraulic Disc |
Rear Brake | Shimano R7170 Hydraulic Disc |
Front Mech | Shimano 105 Di2 R7150 |
Rear Mech | Shimano 105 Di2 R7150 |
Shifters | Shimano Di2 R7170 |
Speed | 24 |
Rims | Orbea OC1 |
Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
Front Tyre | Hutchinson Fusion 5 Performance TLR 700x30 |
Rear Tyre | Hutchinson Fusion 5 Performance TLR 700x30 |
Seat Post | OC 27.2 Offset 0, for integrated light |
Saddle | Fizik Aliante R5 |
Chainset | Shimano 105 R7100 34x50t |
Chain | Shimano M7100 |
Cassette | Shimano 105 R7100 11-34t 12-Speed |
Battery Size (WH) | Mahle 36V/6.9A 248Wh ANT+ |
Motor | Mahle motor hub X35 Plus 25kmh |
User Interface | Mahle Pulsar One monochrome ANT+ LEV |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Orbea Gain D30i 2023 - Electric Road Bike.
This product is no longer available.
