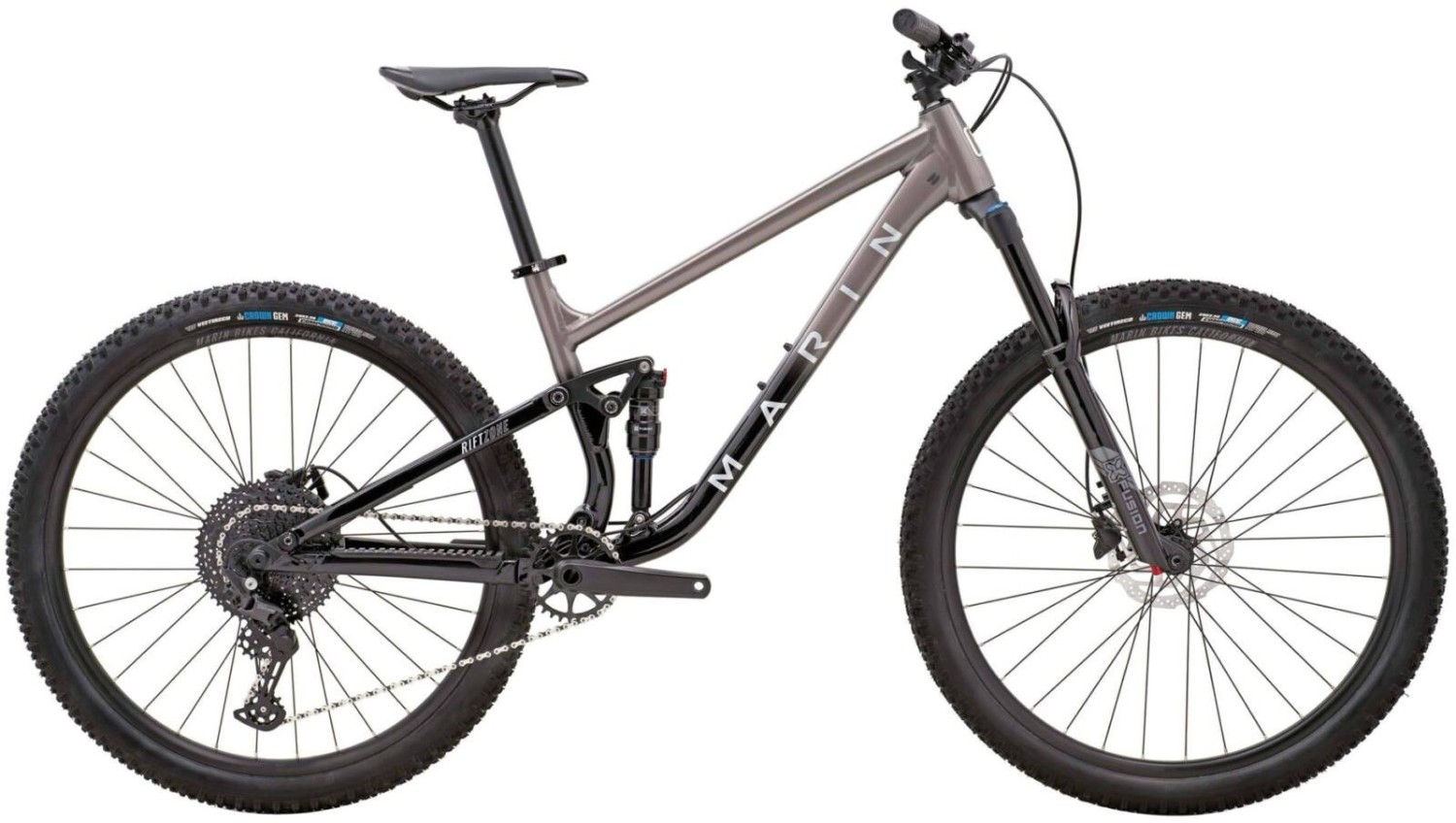

Marin Rift Zone 1 29 Mountain Bike 2024 - XC Full Suspension MTB
The Marin Rift Zone 1 29 is the embodiment of modern trail biking, designed for those who crave versatile performance. With its all-new series 3 6061 aluminium frame, 29-inch wheels, and 125mm of travel, this bike delivers an exceptional ride. The MultiTrac suspension platform ensures smooth handling, while the progressive geometry maximizes control. Whether you're tackling epic trail days or joining fast-paced group rides, the Rift Zone 1 29 has you covered.
Key Features:
- Frame: Series 3 6061 aluminum, 29" wheels, 125mm travel, MultiTrac suspension, 141 boost spacing (upgradable to 148x12), ISCG05 tabs.
- Rear Shock: X-Fusion O2 Pro R, custom tune, 210x50mm, M8x25mm hardware top and bottom.
- Drivetrain: Shimano Deore 11-speed, Marin forged alloy chainset with integrated steel 32t narrow-wide chainring.
- Brakes: Shimano BR-MT200 hydraulic disc brakes with 180mm rotors.
- Wheels: Marin aluminum double-wall rims (29mm inner width), Shimano hubs, Vee Tire Crown Gem 29x2.35" tubeless-ready tires.
- Available with 0% APR finance.
The Marin Rift Zone 1 29 is your ticket to a thrilling riding experience. With its blend of high-quality components, responsive suspension, and versatile design, it's ready to take on any trail or group ride adventure. Get ready to conquer the trails with confidence on this exceptional 29er.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | All New Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
Rear Shock | X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Stem | Marin 3D Forged Alloy, 35mm |
Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
Front Brake | Shimano BR-MT200 Hydraulic Disc, 180mm Rotor |
Rear Brake | Shimano BR-MT200 Hydraulic Disc, 180mm Rotor |
Brake Lever | Shimano BL-MT201 |
Rear Mech | Shimano Deore, 11-Speed, SGS |
Shifters | Shimano Deore, 11-Speed, SL-5100R |
Speed | 11 |
Rims | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
Front Hub | Shimano HF-MT400B, 110x15mm, Centerlock |
Rear Hub | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body |
Spokes | 14g Black Stainless Steel |
Front Tyre | Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready |
Rear Tyre | Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready |
Seat Post | Marin Alloy, 30.9mm |
Saddle | Marin Speed Concept |
Chainset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
Bottom Bracket | External Sealed Cartridge Bearing |
Chain | KMC X-11 Silver and Black |
Cassette | Sunrace, 11-Speed, 11-51T, ED Black |
Pedals | Resin Platform |
Marin Rift Zone 2024 Size Chart
Size |
Height (cm) |
Height (Feet) |
S |
160 – 168 |
5’3” – 5’6” |
M |
168 - 178 |
5’6” – 5’10” |
L |
178 – 188 |
5’10” – 6’2” |
XL |
188 - 193 |
6’2” – 6’4” |
What size frame do I need if I am between sizes? - read here
Marin Rift Zone 2024 Geometry
Size |
S |
M |
L |
XL |
Stack mm |
623.6 |
628.2 |
637.3 |
641.8 |
Reach mm |
435 |
460 |
485 |
515 |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
Head Tube Length mm |
110 |
115 |
125 |
130 |
Seat Tube Angle |
77° |
77° |
77° |
77° |
Seat Tube Length mm |
390 |
400 |
425 |
430 |
Top Tube Effective mm |
579 |
605 |
632.1 |
663.2 |
BB Height mm |
343 |
343 |
343 |
343 |
BB Drop mm |
35 |
35 |
35 |
35 |
Chain Stay mm |
430 |
430 |
430 |
430 |
Wheel Base mm |
1170 |
1205.1 |
1234.4 |
1266.3 |
Stand Over Height mm |
690.2 |
691.2 |
701.7 |
700.5 |
Fork Offset mm |
44 |
44 |
44 |
44 |
Seat Post Diameter mm |
30.9 |
30.9 |
30.9 |
30.9 |
Handlebar Width mm |
780 |
780 |
780 |
780 |
Stem Length mm |
35 |
35 |
35 |
35 |
Crank Length mm |
170 |
170 |
170 |
170 |
