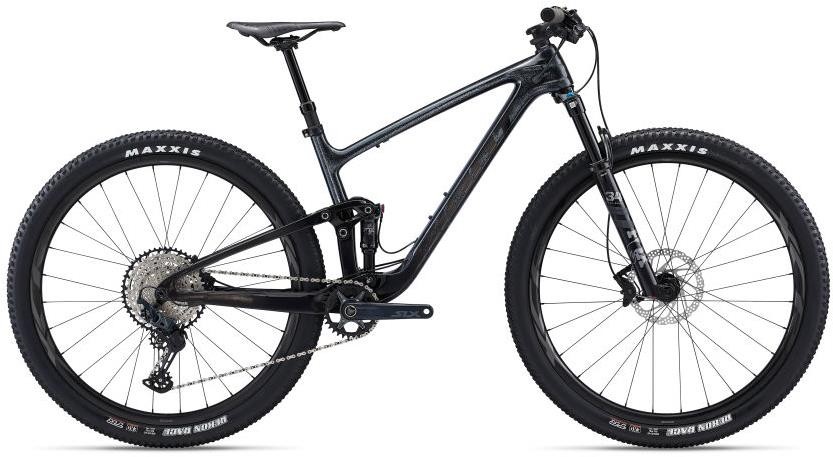

Giant Anthem Advanced Pro 29 2 Mountain Bike 2022 - Trail Full Suspension MTB
THIS PRO-LEVEL XC FLYER PAIRS NEW FLEXPOINT PRO REAR SUSPENSION WITH A SUPERLIGHT FULL COMPOSITE FRAME AND RACE-READY GEOMETRY. IT’S THE ULTIMATE WEAPON FOR TECHNICAL CROSS-COUNTRY TERRAIN.
KEY PERFORMANCE FACTORS
Ultra-efficient
Next-generation Advanced composite mainframe and rear swingarm is 250g lighter than previous version. The bottom bracket area is stiffer for faster acceleration, and a steeper seattube puts the rider in an efficient, front-forward climbing position.
Superior control
All-new FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The reengineered frameset features modern XC geometry including a slacker 67.5-degree headtube and 110mm suspension fork for technical descents.
29er stability and speed
Frame geometry and suspension are optimized for larger-diameter 29-inch wheels. A longer reach and updated cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
HIGHLIGHTS
Engineered with a full composite frameset, this 29er has 100mm of rear suspension travel and 110mm up front. The linkage-driven, single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a lightweight, stiff composite wheelset for quick, precise handling.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle |
Fork | Fox 34 Float SC Performance Remote, 110mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, remote lockout, custom tuned for Giant |
Rear Shock | Fox Float DPS Performance Elite, 165/45, custom tuned for Giant |
Stem | Giant Contact SL XC, 35mm |
Bars | Giant Contact XC Flat, composite, 760x35mm |
Front Brake | Shimano Deore BR-M6100, hydraulic, Shimano RT-56 rotors 180mm |
Rear Brake | Shimano Deore BR-M6100, hydraulic, Shimano RT-56 rotors 160mm |
Brake Lever | Shimano Deore BL-M6100 |
Rear Mech | Shimano SLX RD-M7100 Max 51T |
Shifters | Shimano SLX SL-M7100, 1x12 |
Speed | 12 |
Rims | Giant XCR 2 29 WheelSystem, 25mm inner width |
Front Hub | Giant XCR 2 29 WheelSystem |
Rear Hub | Giant XCR 2 29 WheelSystem |
Front Tyre | Maxxis Recon Race 29x2.4", foldable, TLR, EXO, tubeless |
Rear Tyre | Maxxis Recon Race 29x2.4", foldable, TLR, EXO, tubeless |
Seat Post | Giant Contact Switch dropper, remote |
Saddle | Fi'zi:k Antares R7 with S-Alloy rails |
Chainset | Shimano SLX, 32t |
Bottom Bracket | Shimano, press fit |
Chain | KMC X-12 |
Cassette | Shimano SLX M7100, 10x51 |
Pedals | Resin Platform Pedals |
Giant Anthem Sizing & Geometry
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Anthem Geometry
S | M | L | XL | |
---|---|---|---|---|
SEAT TUBE LENGTH (mm) | 390 | 440 | 490 | 535 |
SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
TOP TUBE LENGTH (mm) | 590 | 610 | 630 | 650 |
HEAD TUBE LENGTH (mm) | 95 | 95 | 105 | 115 |
HEAD TUBE ANGLE | 69.0° | 69.0° | 69.0° | 69.0° |
FORK RAKE (mm) | 51 | 51 | 51 | 51 |
TRAIL (mm) | 88.9 | 88.9 | 89 | 89 |
WHEELBASE (mm) | 1113 | 1133 | 1154 | 1175 |
CHAIN STAY LENGTH (mm) | 438 | 438 | 438 | 438 |
BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 | 45 |
STACK (mm) | 585 | 585 | 594 | 604 |
REACH (mm) | 417 | 437 | 454 | 471 |
STAND OVER HEIGHT (mm) | 747 | 780 | 817 | 843 |
HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
STEM LENGTH (mm) | 60 | 70 | 80 | 90 |
CRANK LENGTH (mm) | 170 | 175 | 175 | 175 |
WHEEL SIZE | 29" | 29" | 29" | 29" |
