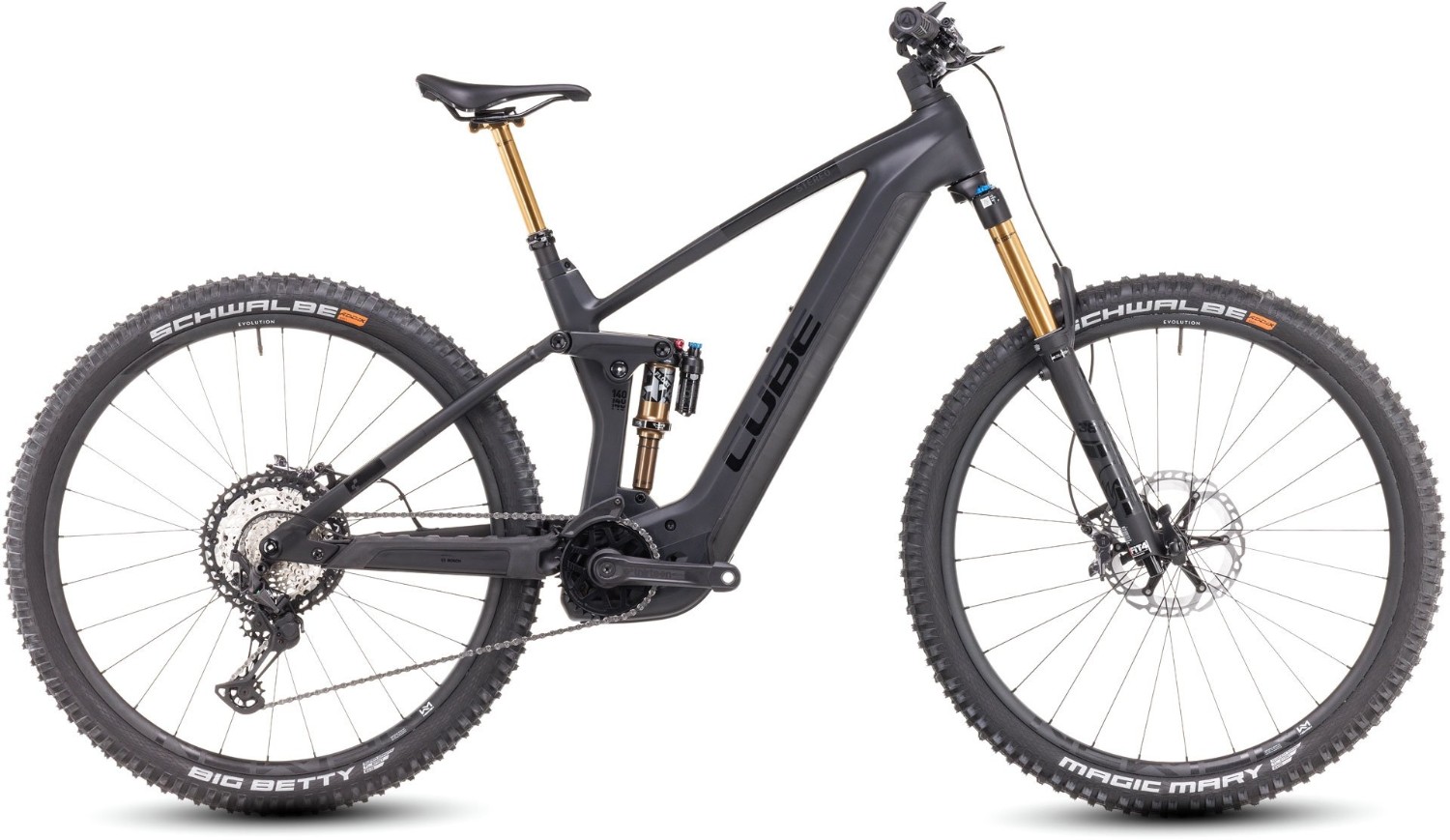

Cube Stereo Hybrid 140 HPC At 750 2024 - Electric Mountain Bike
The Stereo Hybrid 140 HPC Actionteam 750's carbon'n'black colour scheme may be subtle, but its performance is anything but. With its sophisticated kinematics, carefully selected components and Bosch CX drive system with up to 85Nm of on-tap torque, it's all about getting the most out of riding in the mountains.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
Fork | Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated |
Rear Shock | Fox Float X Factory, 205x60mm (27.5: 185x55mm), Adjustable LSC w/ 2-Pos. Lever, Trunnion Mount, Kashima Coated |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Bars | Newmen Advanced 318.25, Carbon, 780mm |
Front Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Rear Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Rear Mech | Shimano XT RD-M8100-SGS ShadowPlus 12-Speed |
Shifters | Shimano XT SL-M8100-IR, Direct Attach |
Speed | 12 |
Seat Post | Fox Transfer Factory 31.6mm, Kashima Coated |
Saddle | Natural Fit Venec |
Chainset | e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T) |
Chain | Shimano XT CN-M8100 |
Cassette | Shimano XT CS-M8100, 10-51T |
Battery Size (WH) | Bosch PowerTube 750 |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
User Interface | Bosch Kiox 300 |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
