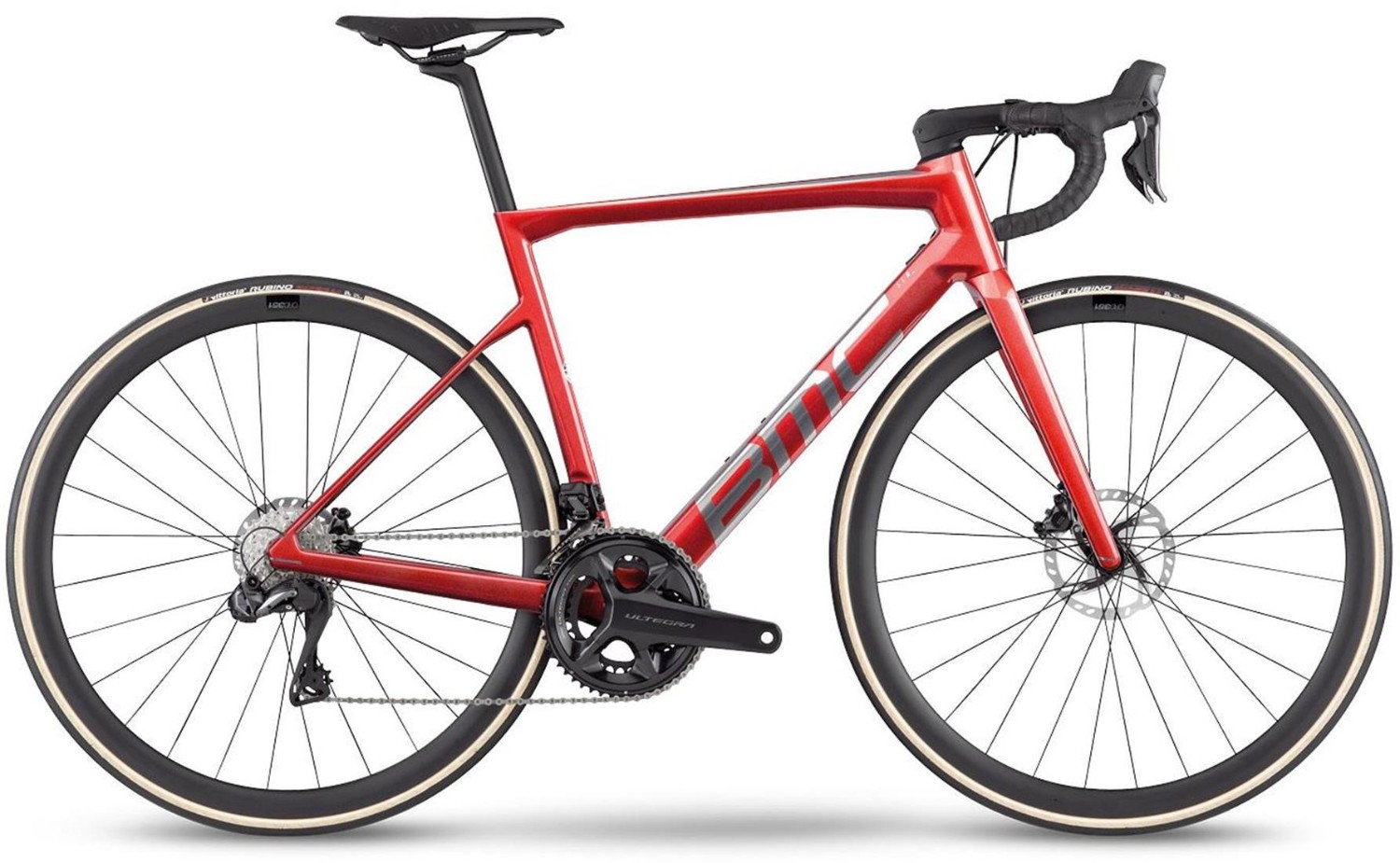

BMC Teammachine SLR ONE Ultegra Di2 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Teammachine SLR Carbon with Aerocore Design. Stealth Dropout Design. TCC Race Compliance Level. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle. Optimized for Aerocore Bottle Cages |
Fork | Teammachine SLR Carbon. TCC Race Compliance Level. Internal Cable Routing. Flat Mount Disc. Stealth Dropout Design. 12x100mm Thru-Axle |
Stem | BMC ICS1 |
Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
Front Brake | SHIMANO Ultegra - RT-MT800 Rotors 160mm |
Rear Brake | SHIMANO Ultegra - RT-MT800 Rotors 140mm |
Brake Lever | Shimano Ultegra |
Front Mech | SHIMANO Ultegra Di2 12spd |
Rear Mech | SHIMANO Ultegra Di2 12spd |
Shifters | SHIMANO Ultegra Di2 12spd |
Speed | 2x12 |
Rims | CRD-351 Carbon - Tubeless Ready - 35mm |
Front Hub | CRD-351 |
Rear Hub | CRD-351 |
Front Tyre | Vittoria Rubino - 25mm |
Rear Tyre | Vittoria Rubino - 25mm |
Seat Post | Teammachine SLR Carbon D-Shaped Seatpost |
Saddle | Fizik Antares R7 |
Chainset | SHIMANO Ultegra 12spd 52-36T |
Bottom Bracket | PF86 |
Chain | SHIMANO Ultegra 12spd |
Cassette | SHIMANO Ultegra 12spd 11-34T |
Pedals | Resin Platform |
BMC Teammachine SLR 2023 Size Chart
Size | Height (cm) | Height (Inches) |
47 | >166 | > 5'5 |
51 | 166 - 174 | 5'5 - 5'9 |
54 | 172 - 180 | 5'8 - 5'11 |
56 | 178 - 186 | 5'10 - 6'1 |
58 | 184 - 192 | 6'0 - 6'4 |
61 | > 190 | > 6'3 |
BMC Teammachine SLR 2023 Geometry
SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
Top Tube MM (tt) | 517 | 534 | 549 | 559 | 574 | 589 |
Wheelbase MM (wb) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
Seat Angle (sa) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Seatpost Length MM | 330 | 380 | N/A | 380 | 380 | 380 |
Stack MM | 506 | 530 | 550 | 565 | 584 | 608 |
Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
Reach MM (reach) | 367 | 377 | 386 | 392 | 401 | 409 |
Head Tube MM (ht) | 110 | 130 | 145 | 165 | 184 | 210 |
Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.5 |
BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
Seat Tube MM (st) | 423 | 468 | 504 | 524 | 545 | 574 |
Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
Post Offset MM | 15 | 15 | 380 | 15 | 15 | 15 |
Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
Fork Length MM (fl) | 368 | 368 | 368 | 368 | 368 | 368 |
Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
What size frame do I need if I am between sizes? - read here
